4-16 Service Manual
5055-01X
Upper Fan Removal
1. Open the top unit and remove the toner cartridges and
photodeveloper drum units, top cover, and face-down guide
assembly.

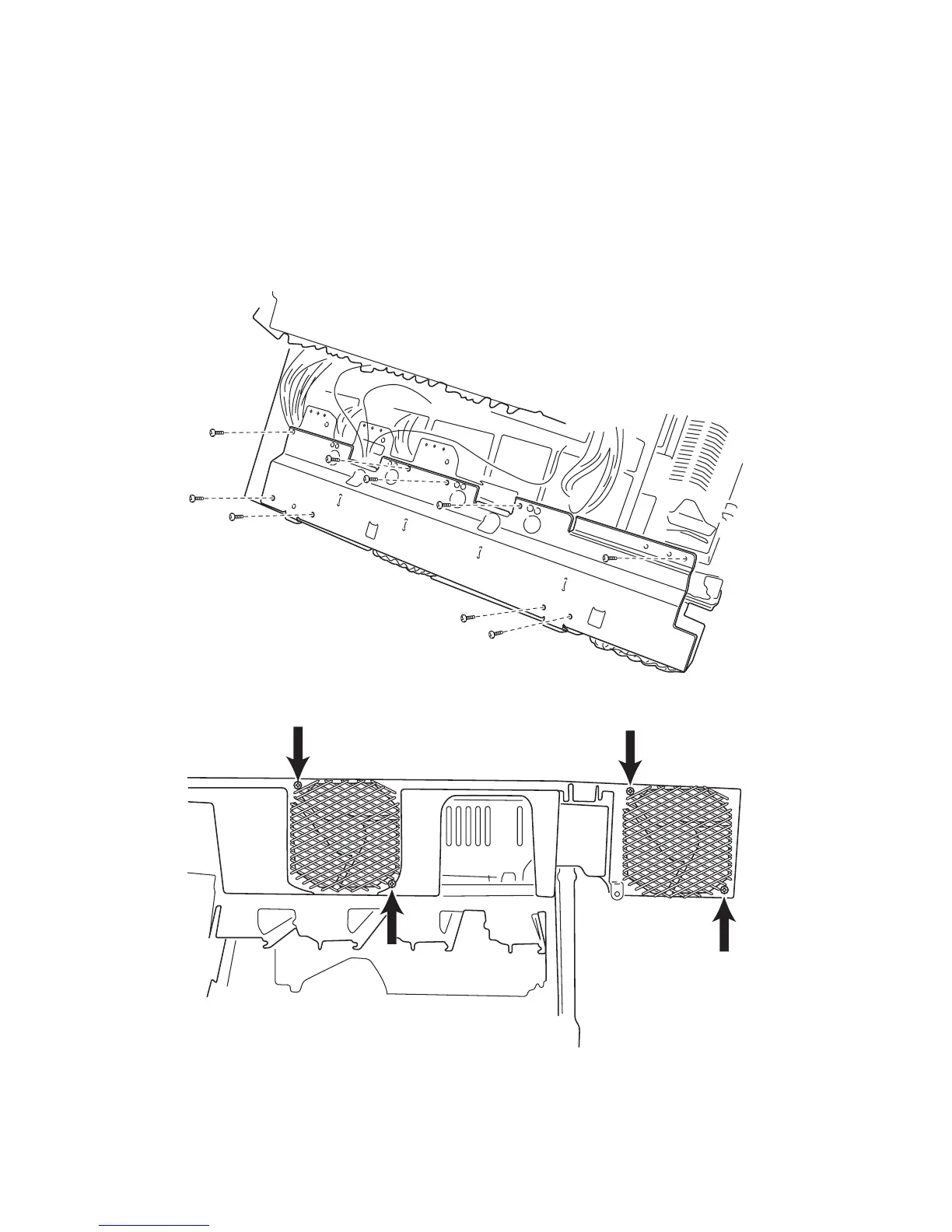

2. Remove the four screws and the five screws from the upper
bracket, and remove the bracket.
3. Remove the two screws from the left fan, and remove the fan.
4. Remove the two screws from the right fan, and remove the fan.
To Next Page
