4-4 Service Manual
5055-01X
Removals

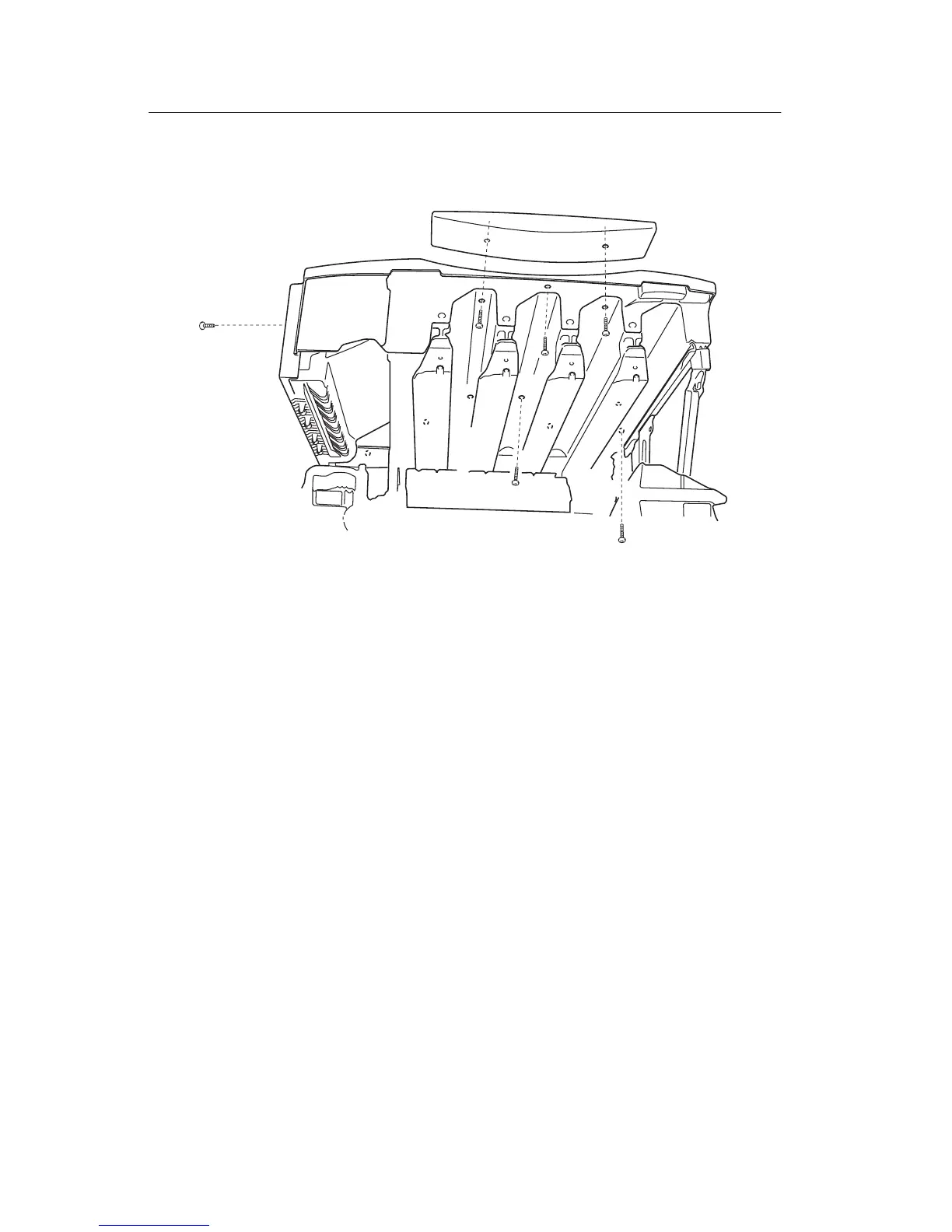

Cover, Top Removal
1. Open the top unit and remove the photodevelopers and toner
cartridges.
2. Remove the operator panel.
3. Remove three screws from the bottom, the four screws from the
back side, and the screw from the left side.
Operator Panel Removal
1. Open the top unit and remove the toner cartridges and
photodeveloper drum units.
2. Remove the operator panel.
3. Remove the two screws from the operator panel case, and
remove the case.
4. Remove the cable from the operator panel.
To Next Page
