4-40 Service Manual
5055-01X
Sub Frame F1, Sub Frame F2 Removal

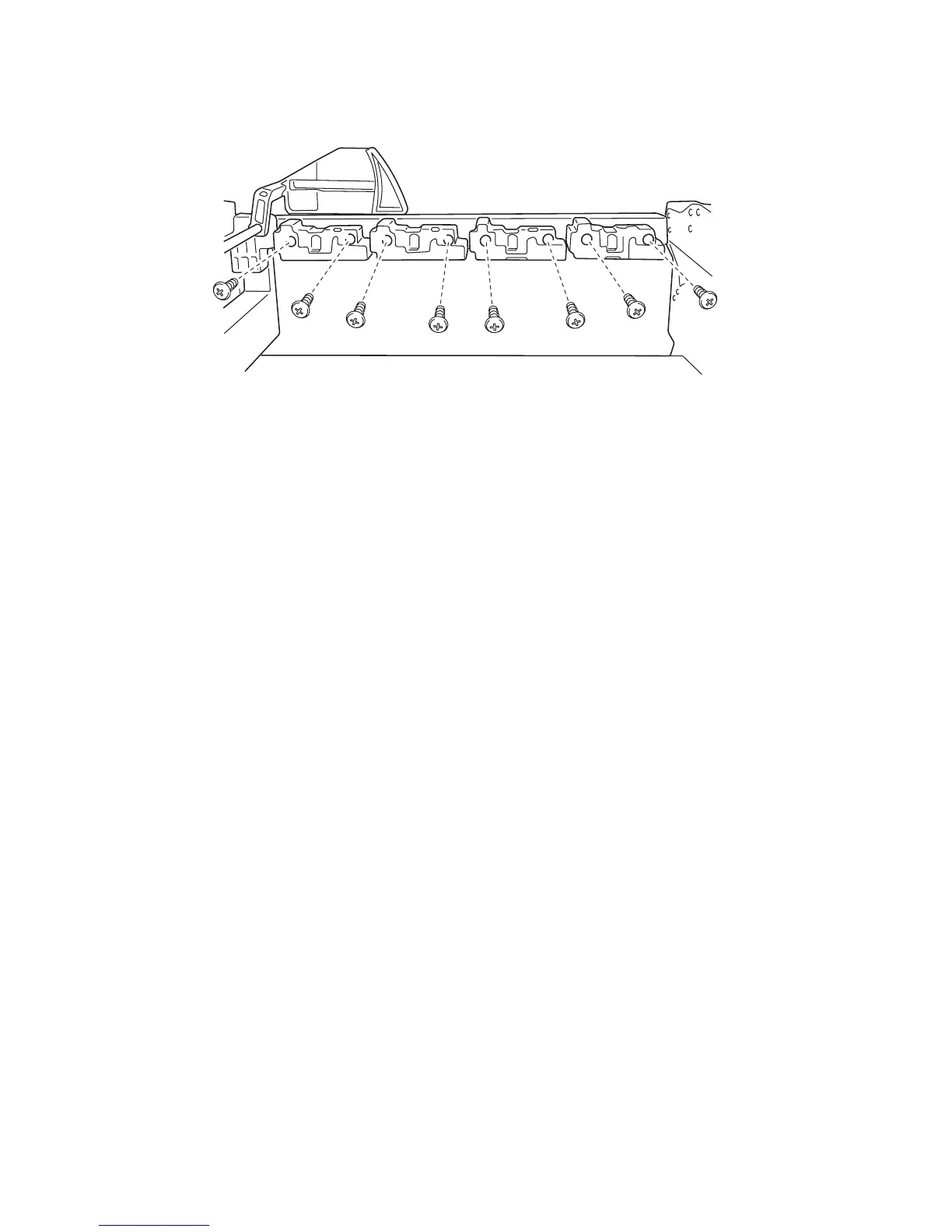

1. Open the top unit.
2. Remove the two screws from the sub frames F1 and F2.
Note: Spread a paper or cloth over the belt to protect the belt. Set
the sub frame F to the position of the following colors depending on
presence of upper detection button.
• Magenta: Sub frame F1 (Detection button available)
• Cyan: Sub frame F2 (Detection button unavailable)
• Yellow: Sub frame F2 (Detection button unavailable)
• Black: Sub frame F1 (Detection button available)
