General Information 1-37
5055-01X

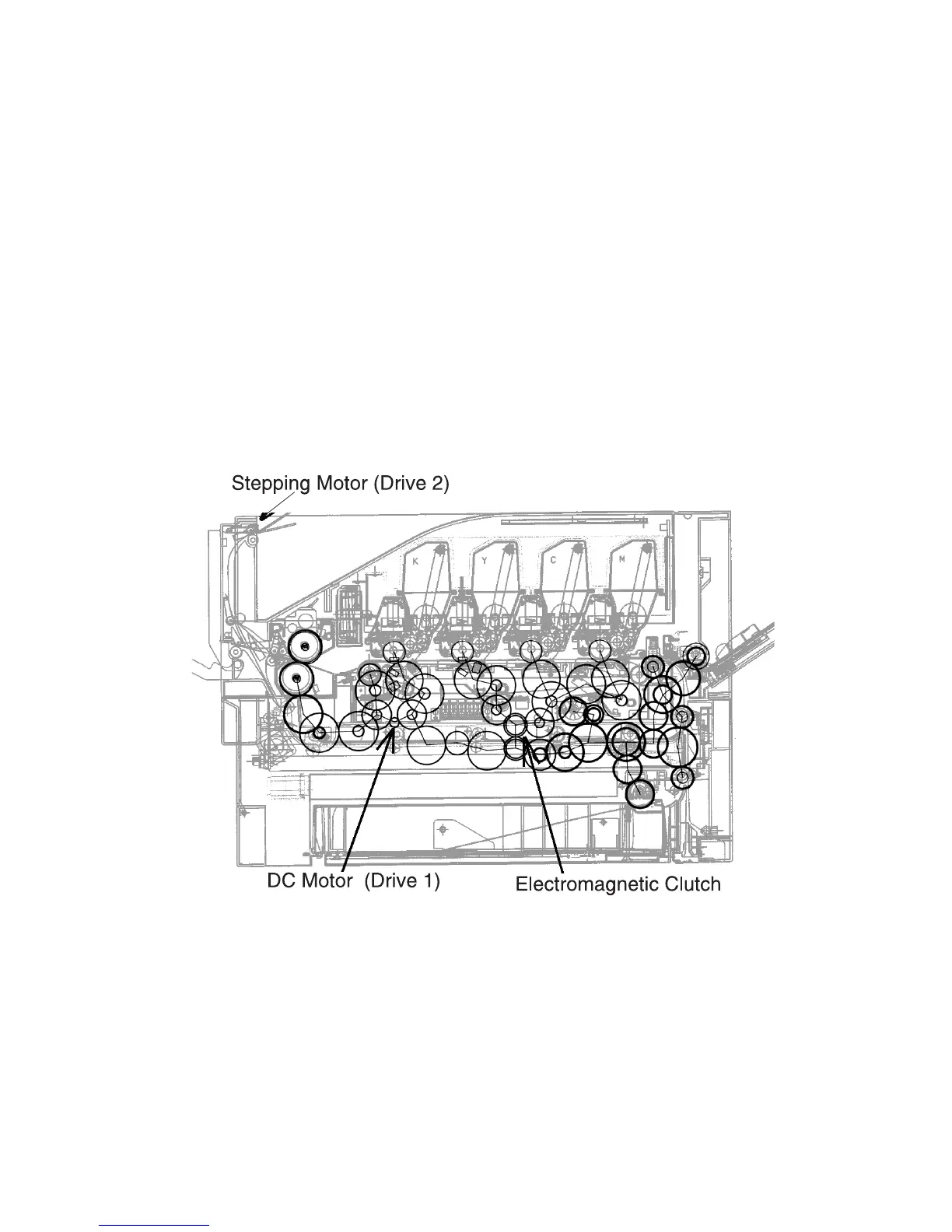

Drive System
Drive 1, composed of a 100 V dc motor and gear unit, feeds the
registration paper from the paper feeder and drives the belt unit,
photodevelopers / toner cartridge, fusing unit, and face-up delivery
unit. The motor rotates by the ON signal from the printer controller/
motor drive unit and sends a rotation synchronization detection
signal to the motor drive unit.
Note: The gear unit of drive 1 is adjusted in phase and should not
be disassembled.
Drive 2, composed of a hybrid stepping motor and gear unit, drives
the face-down delivery unit.
