4-22 Service Manual
5055-01X

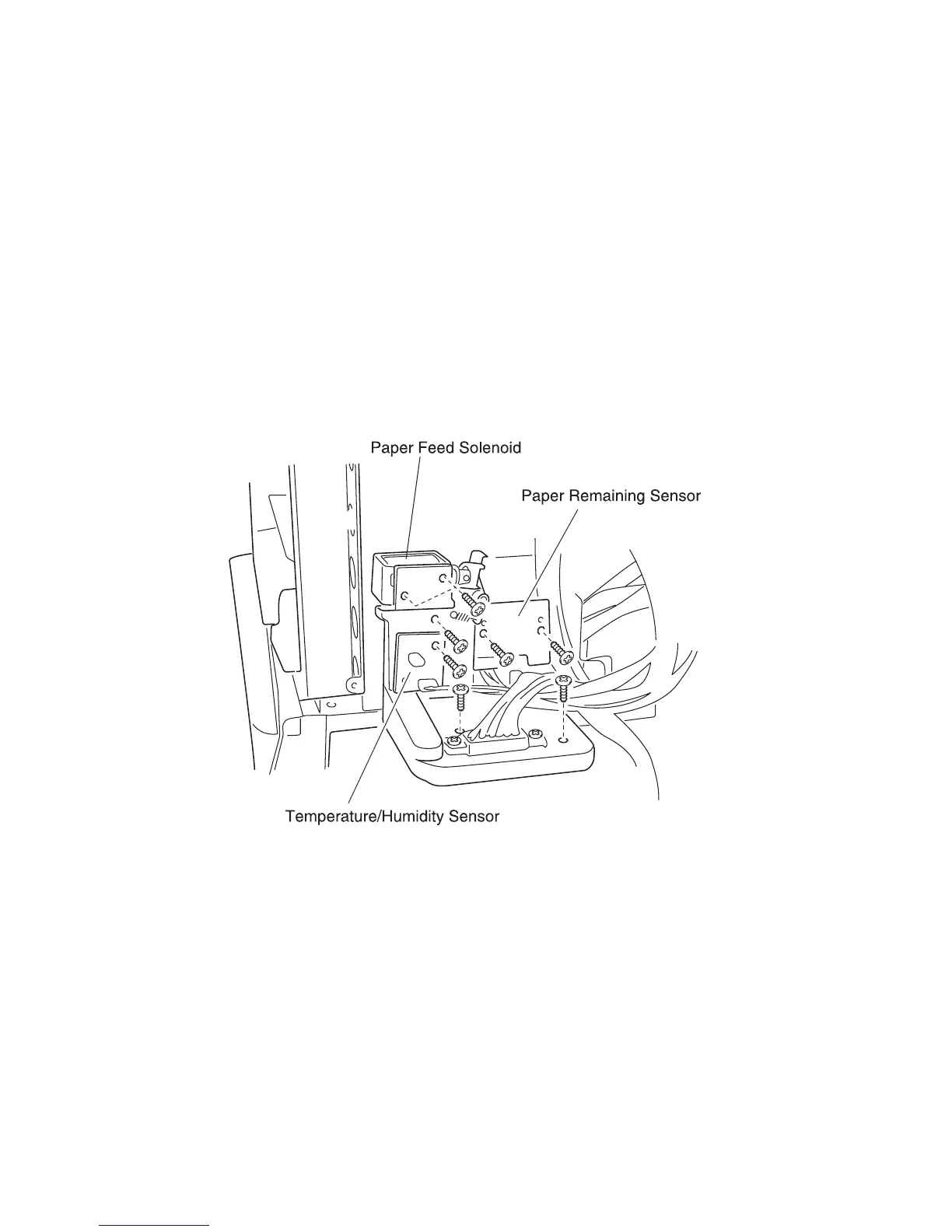

Temperature/Humidity Sensor Removal
Paper Feed Solenoid Removal
1. Open the top unit and remove the RIP cover, RIP board, RIP
box, and electronic box.
2. Remove the screw from the temperature/humidity sensor, and
remove the sensor.
3. Remove the two screws from the paper feed solenoid bracket
and remove the solenoid.
4. Remove the spring from the solenoid plunger arm.
Note: Be sure to use the specific screws during installation. Long
screws will damage the solenoid.
Paper Remaining Sensor Removal
1. Remove the paper feed frame.
2. Remove the two screws from the paper remaining detection
sensor and remove the sensor.
