Repair Information 4-35
5055-01X
Sensor Board Removal
1. Remove the transfer belt unit.
2. Remove the four connectors.

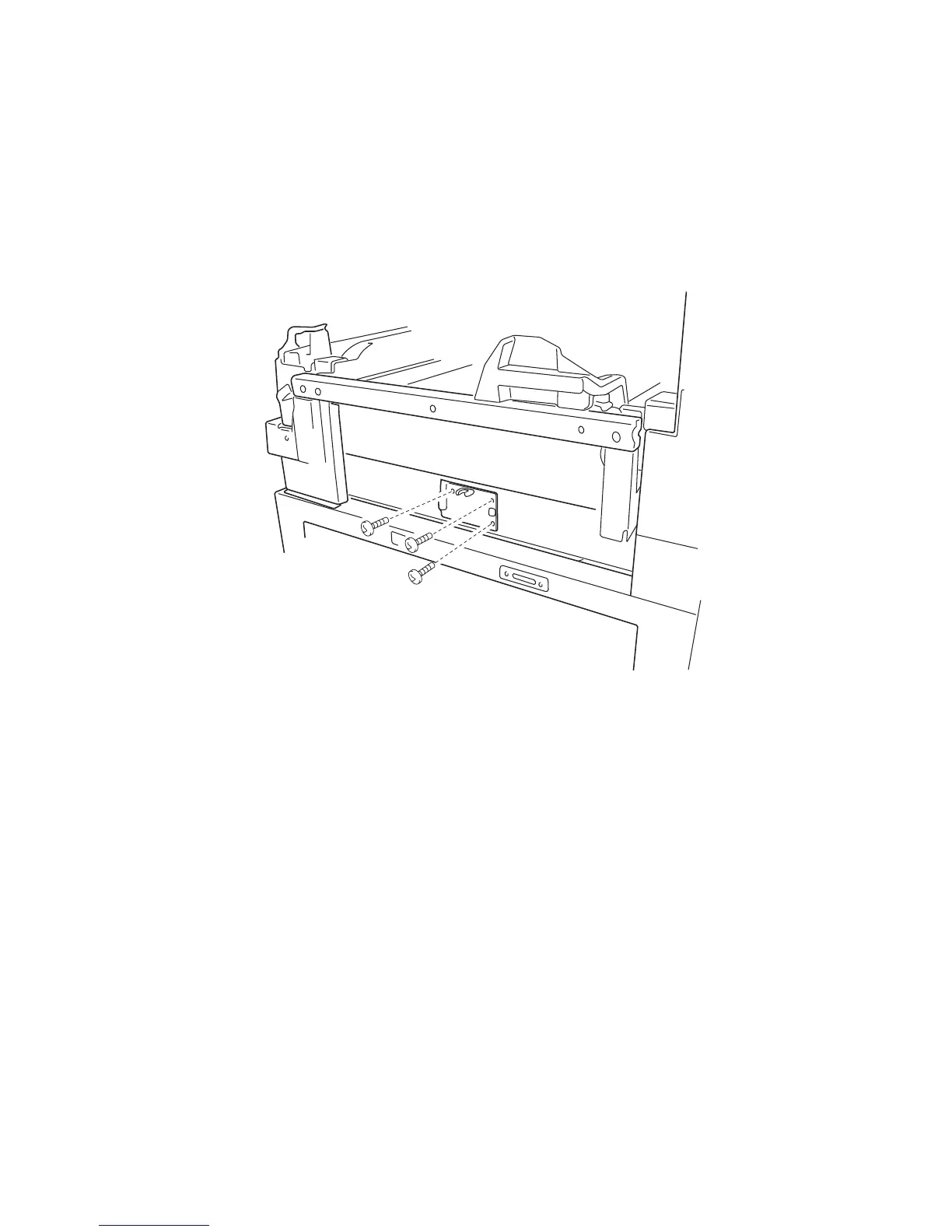

3. Remove the three screws from the waste toner full sensor
board.
