Lexmark C910 - Duplex Side Fence Motor Assembly; Side Fence Removal

Repair Information 4-75
5055-01X
Duplex Side Fence Motor Assembly / Side Fence
Removal

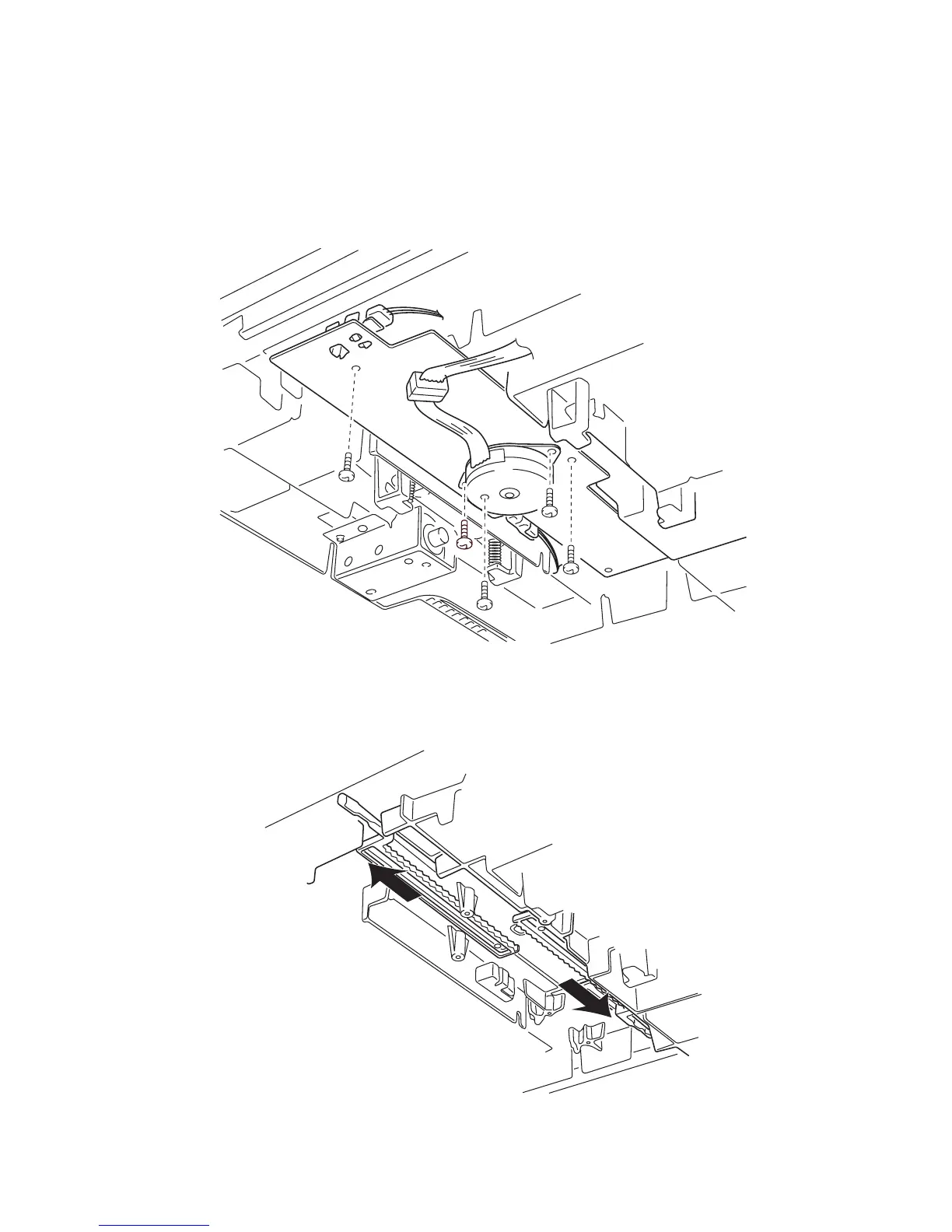

1. Remove the three screws and remove the side fence motor
assembly.
2. Remove the front and rear side fences.
Note: When installing, spread the front and rear side fences to the
sides and install.
