Lexmark C910 - Cover, Front Left Removal; Cover, Rear Removal

4-6 Service Manual
5055-01X

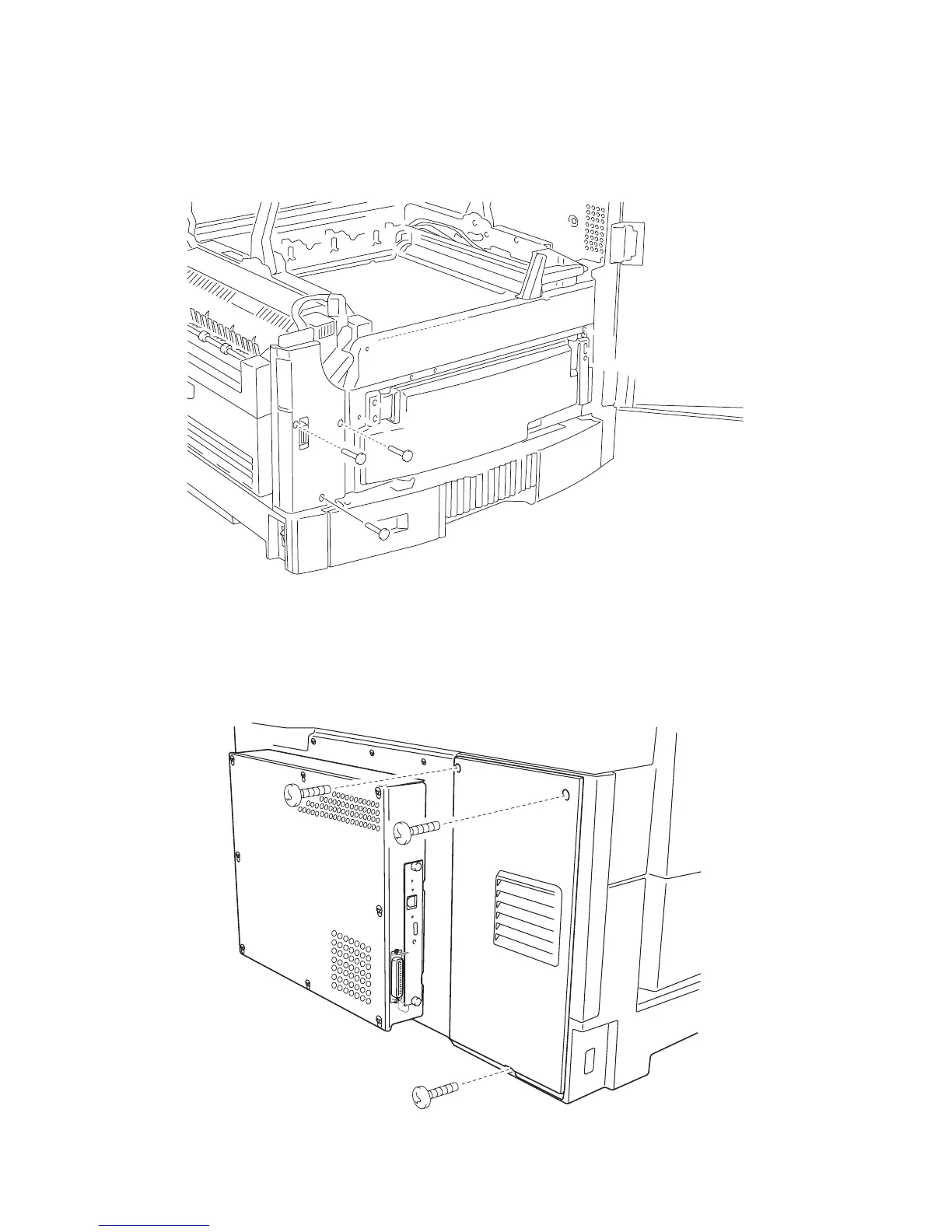

Cover, Front Left Removal
1. Open the front cover and remove the cassette.
2. Remove the left front cover by removing the three screws.
Cover, Rear Removal
1. Open the top unit.
2. Remove the three screws from the rear cover, and remove the
cover.
