4-92 Service Manual
5055-01X

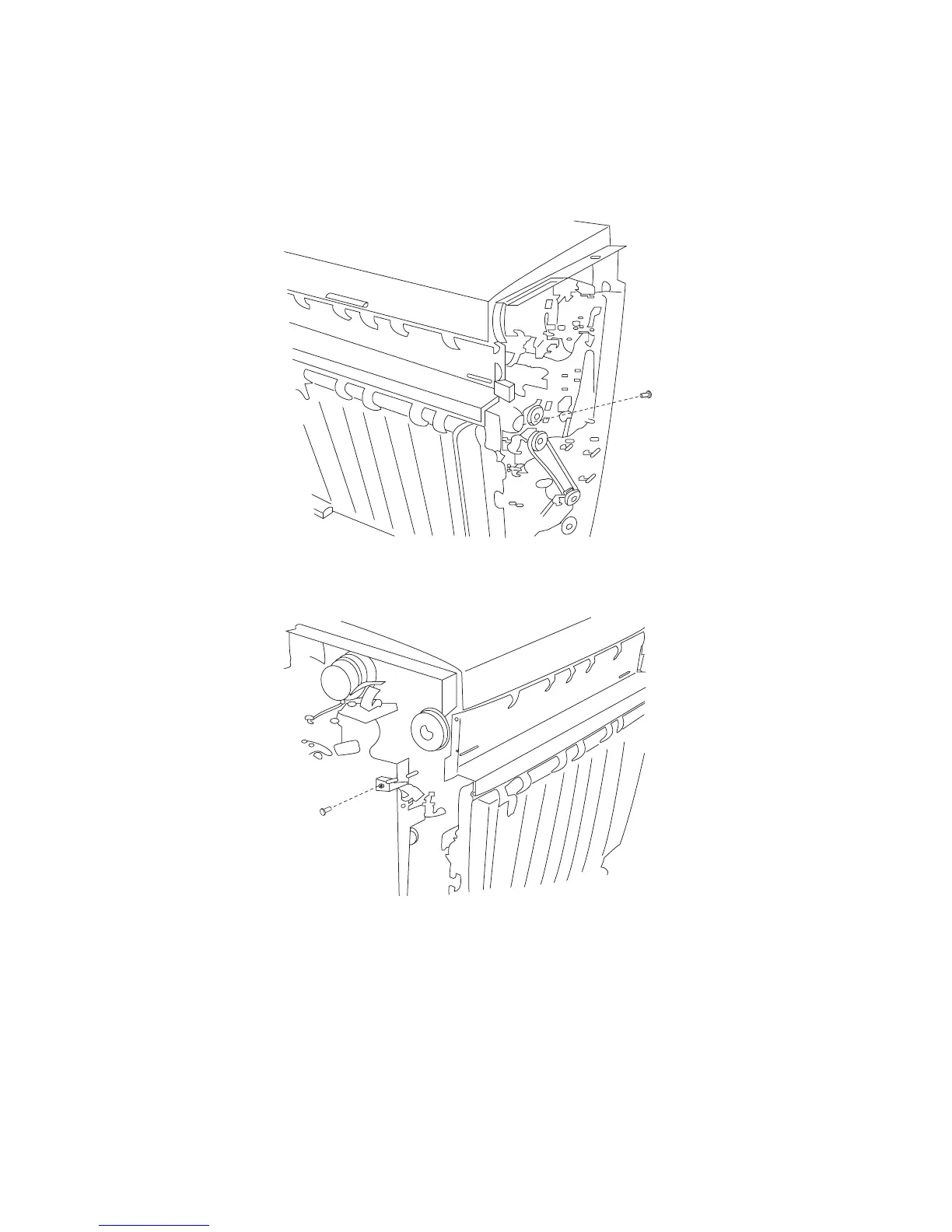

Patting Roller Removal
1. Remove the front and rear covers.
2. Remove the finisher control board mounting bracket.
3. Remove the two screws from the upper left panel and remove
the panel.
4. Disconnect the sensor connector.
5. Remove the sensor harness from the harness clamp.
3
