Lexmark C910 Service Manual

Repair Information 4-79
5055-01X

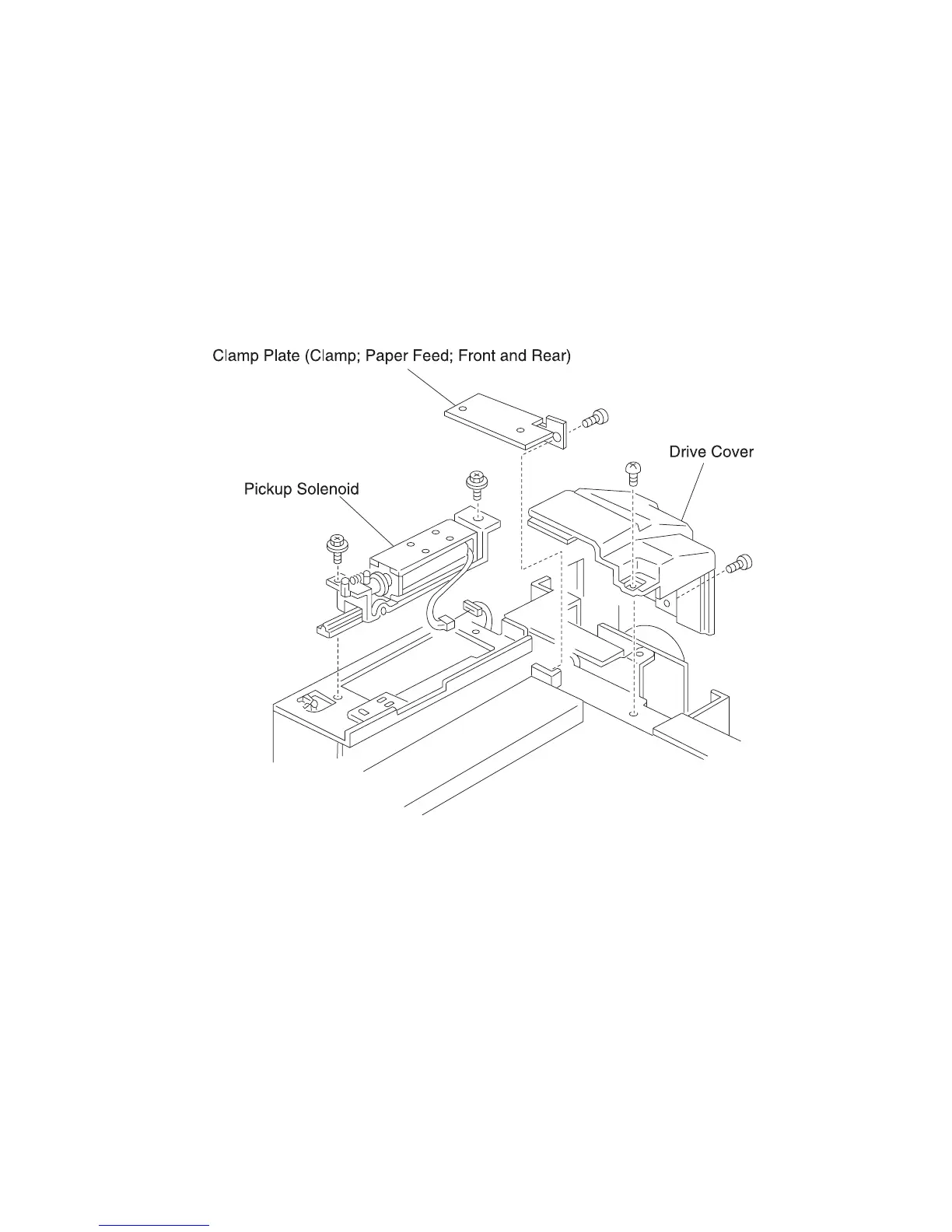

HCF Pickup Solenoid Removal
1. Remove the four screws from the transfer cover, and remove the
cover.
2. Remove the two screws from the drive cover, and remove the
cover.
3. Remove the screw from the clamp plate, and remove the plate.
4. Remove the connector and the two screws from the pickup
solenoid, and remove the solenoid.
