1-38 Service Manual
5055-01X
Paper Feeding
The paper feeder is a two-way system composed of the multi-paper
feeder (100 sheets maximum) and an integrated 550 sheet tray).
Optionally, the expansion paper feeders (550 sheets) can be
increased to four layers. A high capacity paper feeding system
(3,000 sheets) may be used. Combining the multi-paper feeder,
expansion paper feeders, and high capacity paper feeding system
the printer has a maximum paper supply of up to 5,850 sheets.

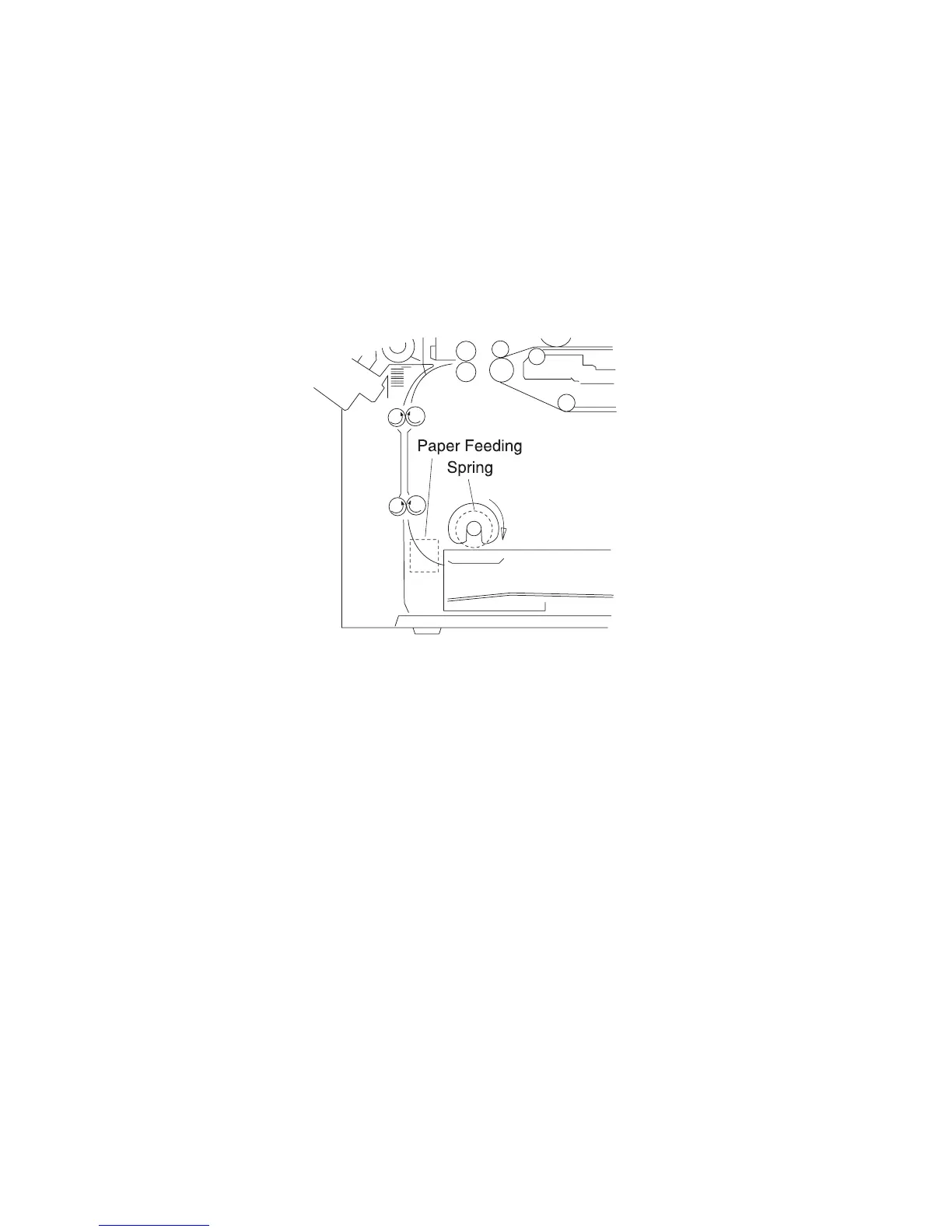

Cassette Paper Feeder
The paper feeding solenoid turns on by the signal from the printer
controller. The paper feeding roller interconnected with drive 1,
rotates with the spring clutch and picks the paper in the paper
cassette.
