4-36 Service Manual
5055-01X

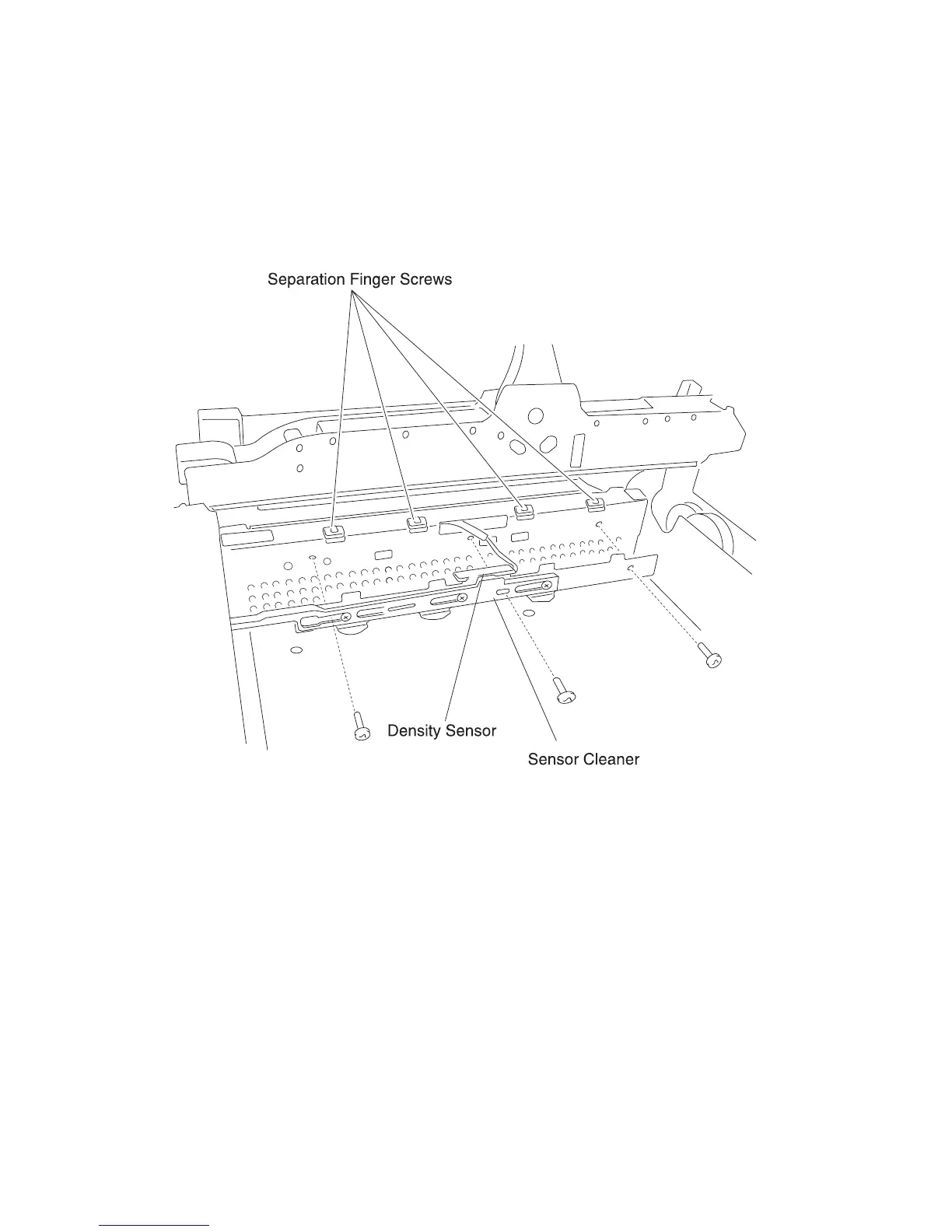

Density Sensor Removal
Separation Fingers Removal
Sensor Cleaner Removal
1. Open the top unit and remove the belt unit.
2. Remove the three screws from the sensor bracket.
3. Remove the harness band and remove the two screws from the
density sensor from the sensor bracket.
4. Remove the three set screws from the sensor cleaner assembly
from the sensor bracket.
5. Remove the four separating finger screws from the fuser
entrance guide.
To Next Page
