Repair Information 4-29
5055-01X
Registration Frame, Registration Clutch Removal

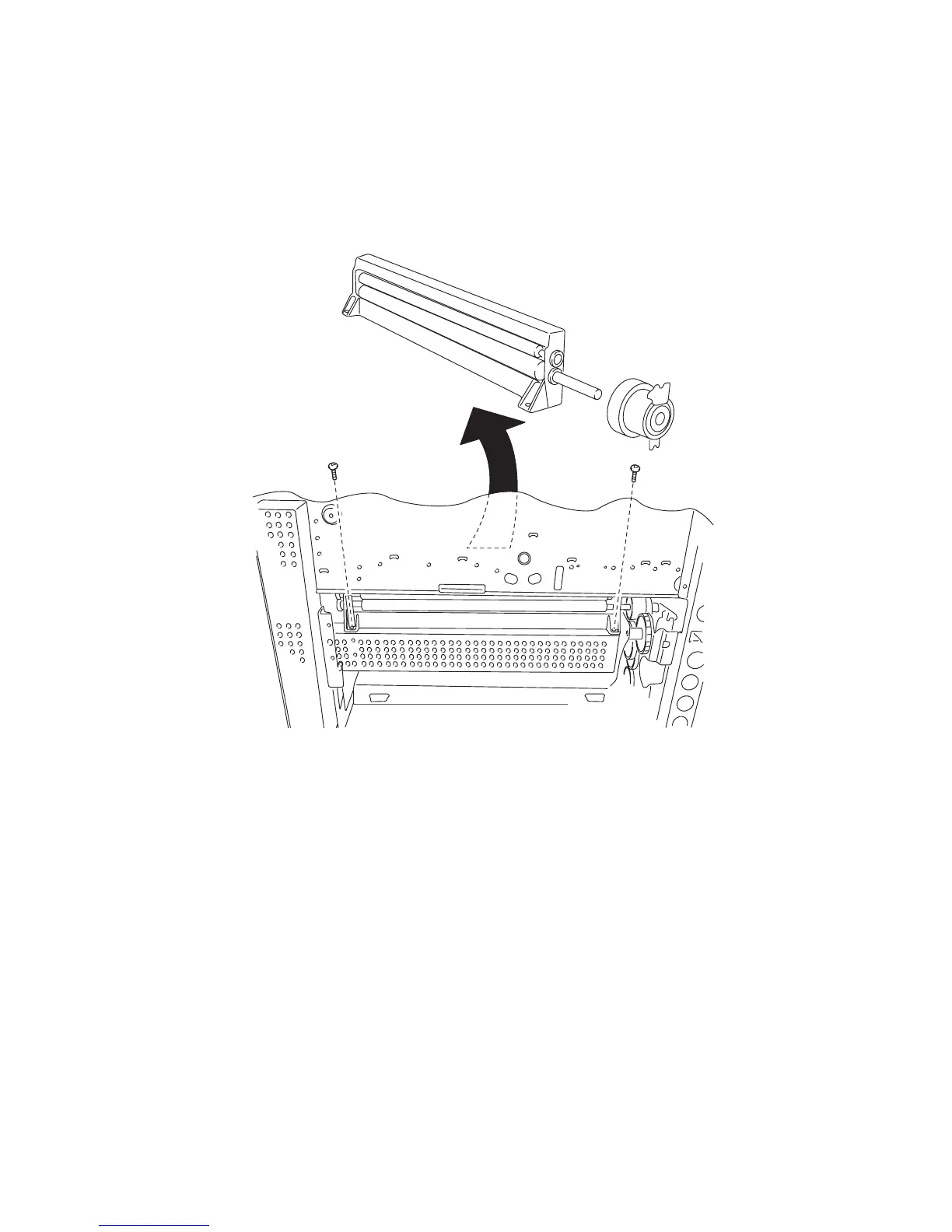

1. Open the top unit, open the turn guide, open the paper feed
cover and pull out the duplex unit halfway.
2. Remove the two screws from the registration frame.
3. Remove the registration clutch.
Note: When installing, set the clip of the registration clutch to the
stopper.
