Repair Information 4-47
5055-01X

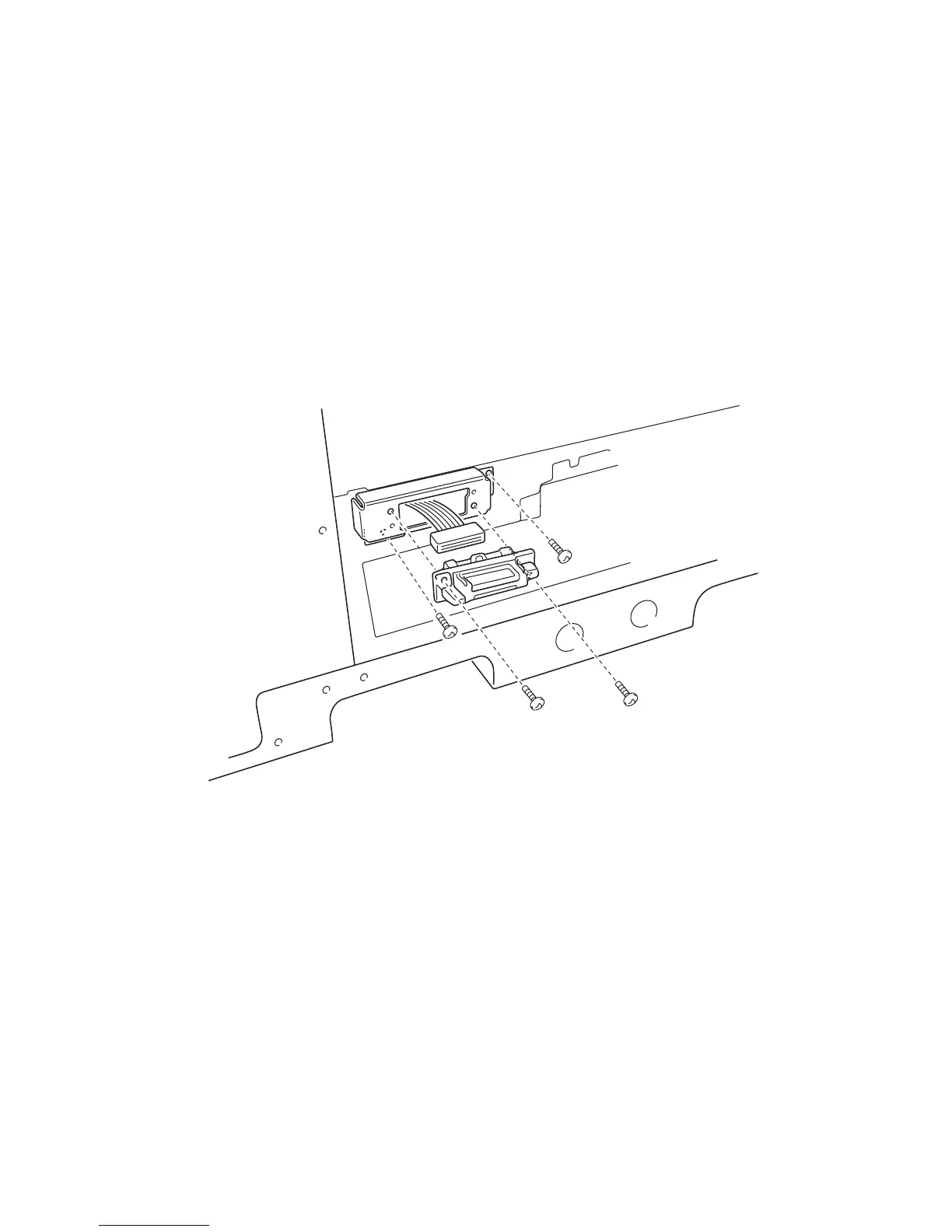

Connector, Duplex Unit Removal
1. Open the top unit and remove the upper cassette, left front
cover, paper feed cover, left side cover, RIP cover, RIP board,
RIP box, and the electronic box. Remove the turn guide and
open the paper feed cover and remove the duplex unit. Remove
the left side cover and power supply A.
2. Disconnect the connector and remove the two screws from the
mounting plate.
3. Remove the two screws of the drawer connector from the
mounting plate drawer bracket.
