Lexmark C910 Service Manual

4-56 Service Manual
5055-01X

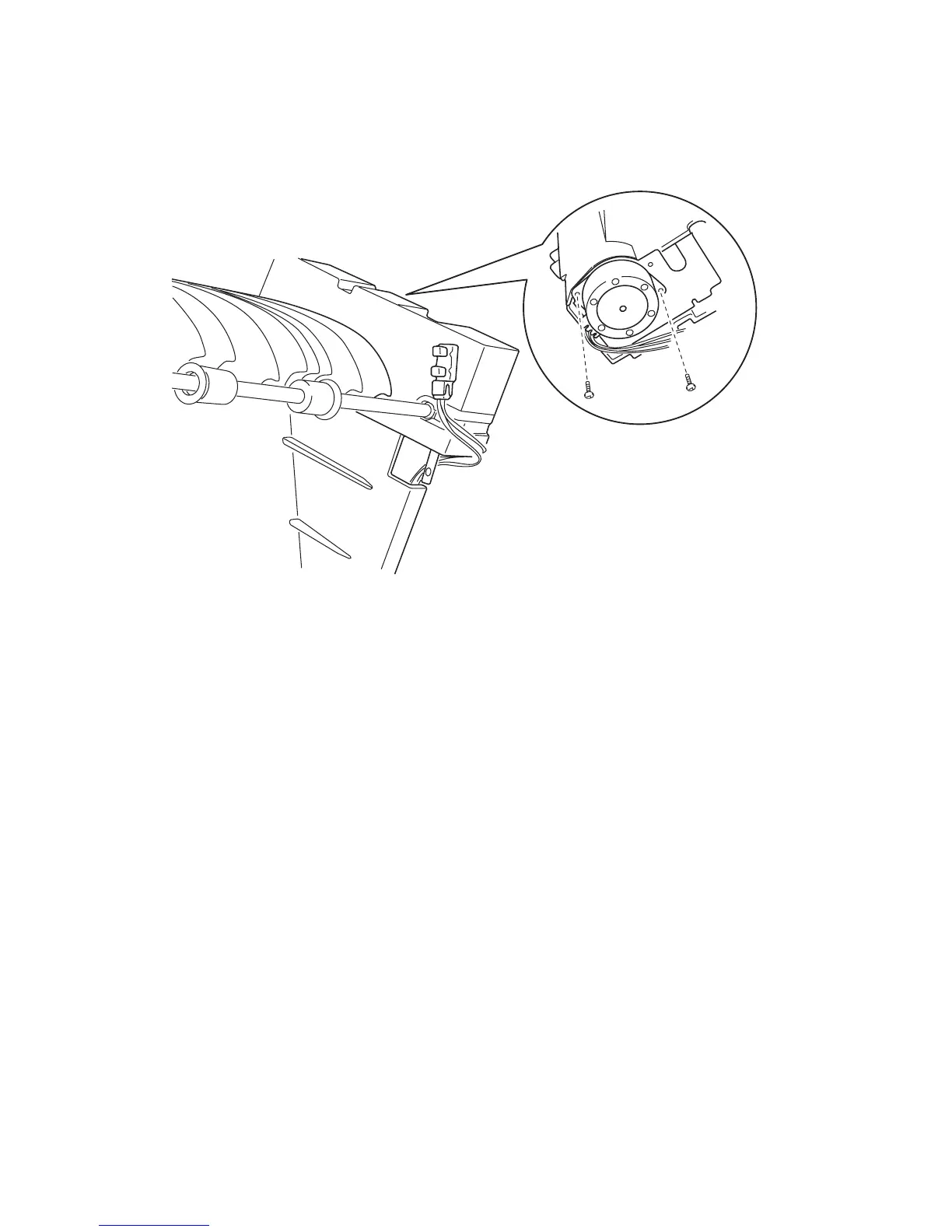

5. Remove the two screws of the motor from the face down guide
assembly. Remove the assembly.
Note: When the motor is installed, press the motor 45 degrees in an
upward direction when viewing from the rear.
6. Remove the face down paper delivery full sensor from the face
down guide assembly.
