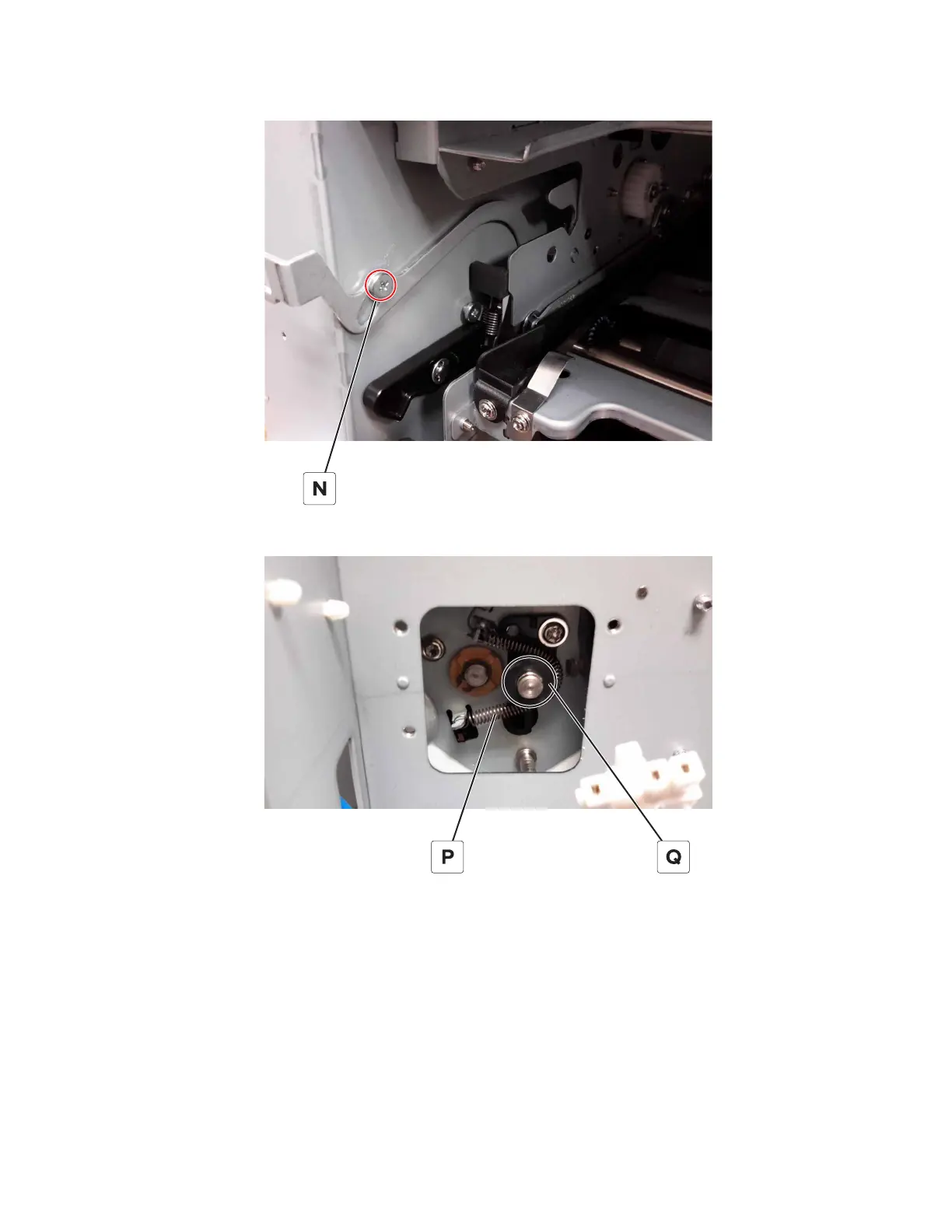

15 Remove the screw (N) securing the nip release arm.
16 Remove the spring (P), and then remove the spacer (Q).
5028
Repair information
347
