Lexmark CS725R Service Manual

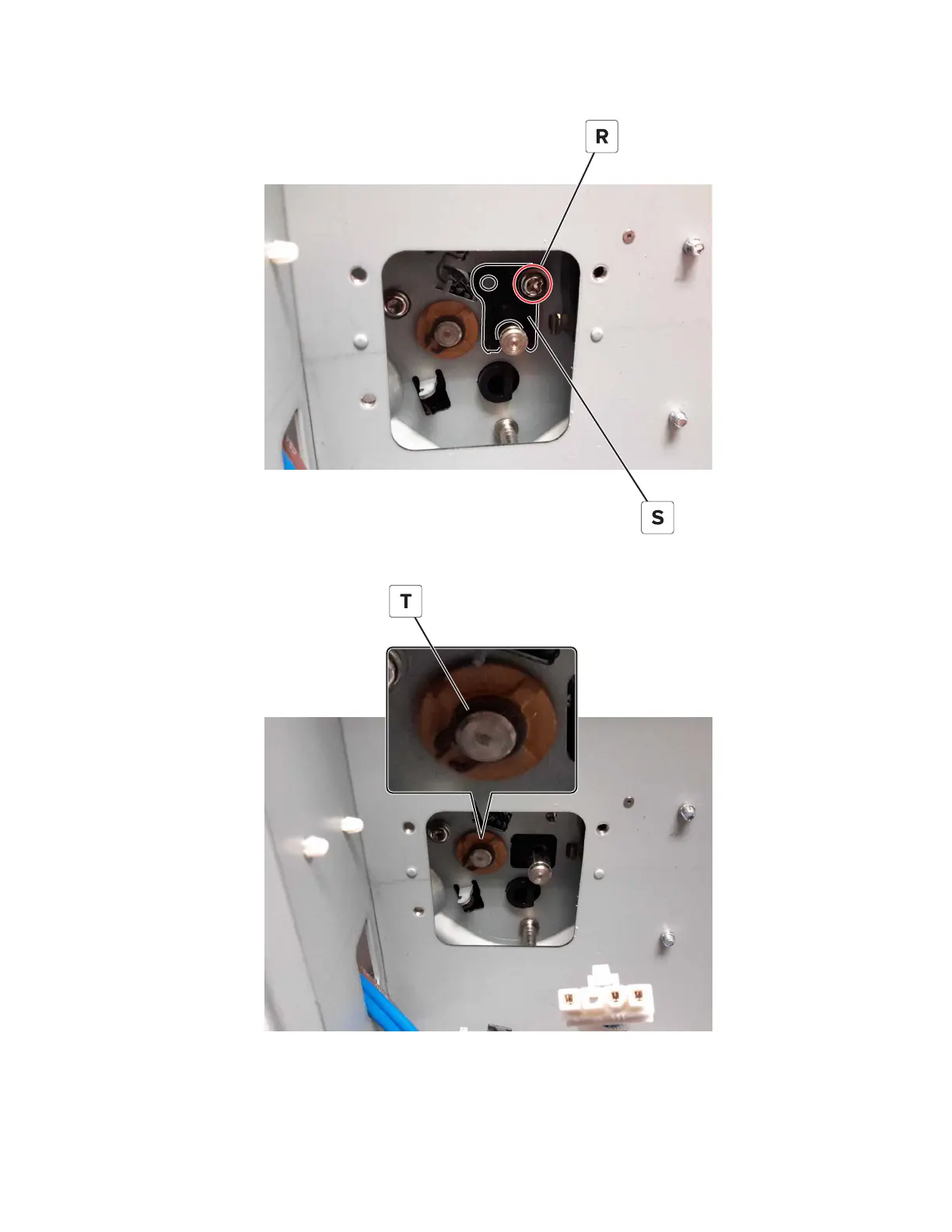

17 Remove the screw (R), and then remove the guide (S).
18 Remove the clip (T), and then remove the bushing.
19 Slide the front deskew roller to the right to remove.
Note: Be careful not to drop or lose the washer on the left side of the shaft.
5028
Repair information
348
