Lexmark MS310 4514-220 - Page 187

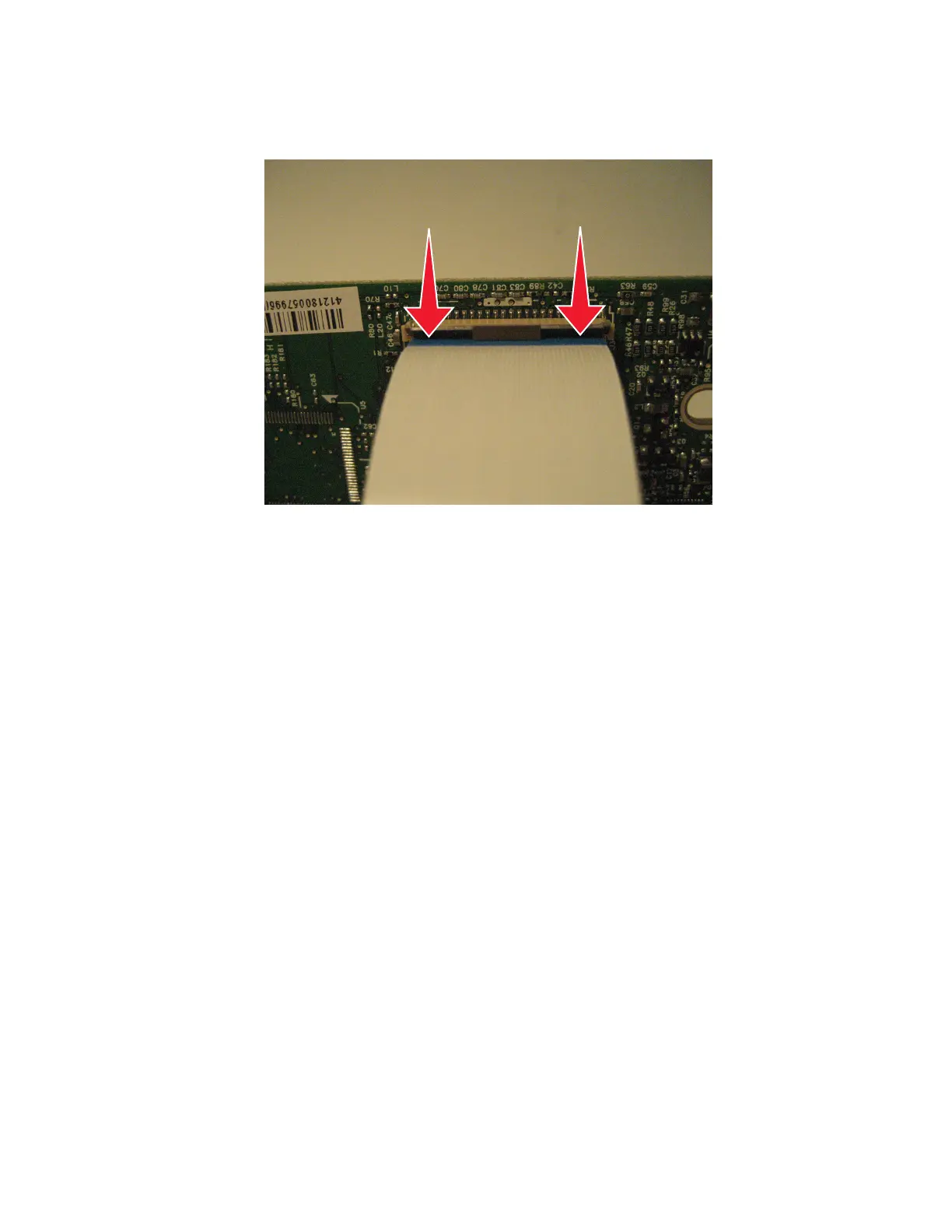

3 Rotate the locking actuator to the locked position by pressing down on both ends of the actuator. The cable
should not move when this step is performed. If the cable moves, open the actuator, reposition the cable,
and then close the actuator to the down position.
4514-2xx
Parts removal
187
