#Part
1 Output bin
2 Photoconductor drum
3 Input sensor
4 First input roller
5 Transfer roller
6 Fuser exit roller
7 Fuser assembly
8 Paper exit roller
Duplex printing

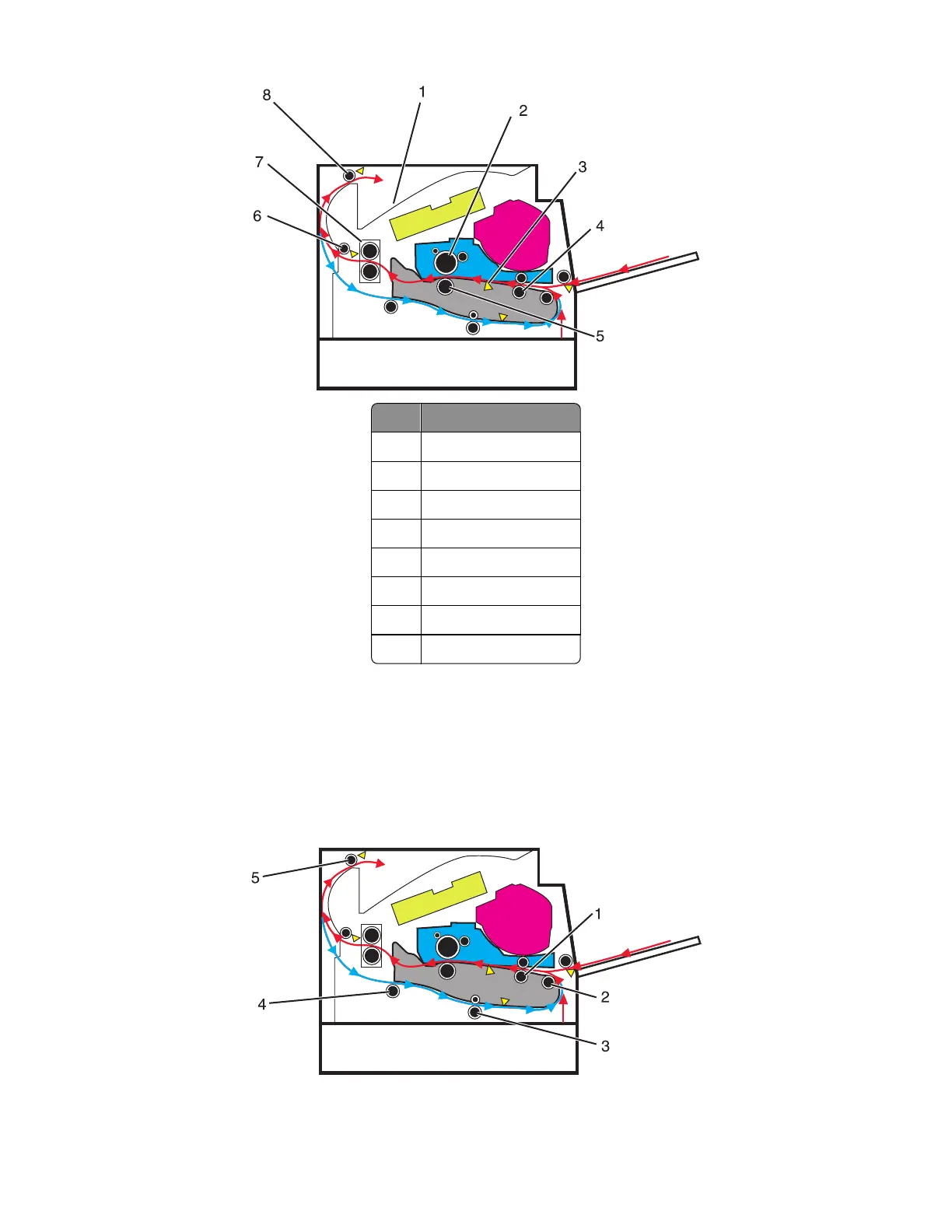

After the first side of the media has been printed on and is partially fed out to the output bin, the duplex solenoid
activates. This causes the exit roller to reverse its rotation and feed the media, with its trailing edge first, back
into the redrive assembly and then to the duplex paper path. The duplex front and rear deliver rollers move the
media through the duplex paper path, the diverter, the
first
input roller, and back to the primary paper path. The
same process for printing on the first side of the media repeats, this time for the second side of the media.
4514-2xx
Theory of operation
303

Lexmark MS310 4514-220 Specifications

General

Print Technology	Monochrome Laser
Print Speed (Black)	Up to 35 ppm
Print Resolution	1200 x 1200 dpi
Processor Speed	800 MHz
Recommended Monthly Page Volume	500 - 2, 500 pages
Connectivity	USB 2.0, Ethernet
Paper Output Capacity	150-sheet output bin
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB
Maximum Duty Cycle	50, 000 pages per month
Paper Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, JIS B5, Executive, Legal, Letter
Duplex Printing	Yes (Automatic)
