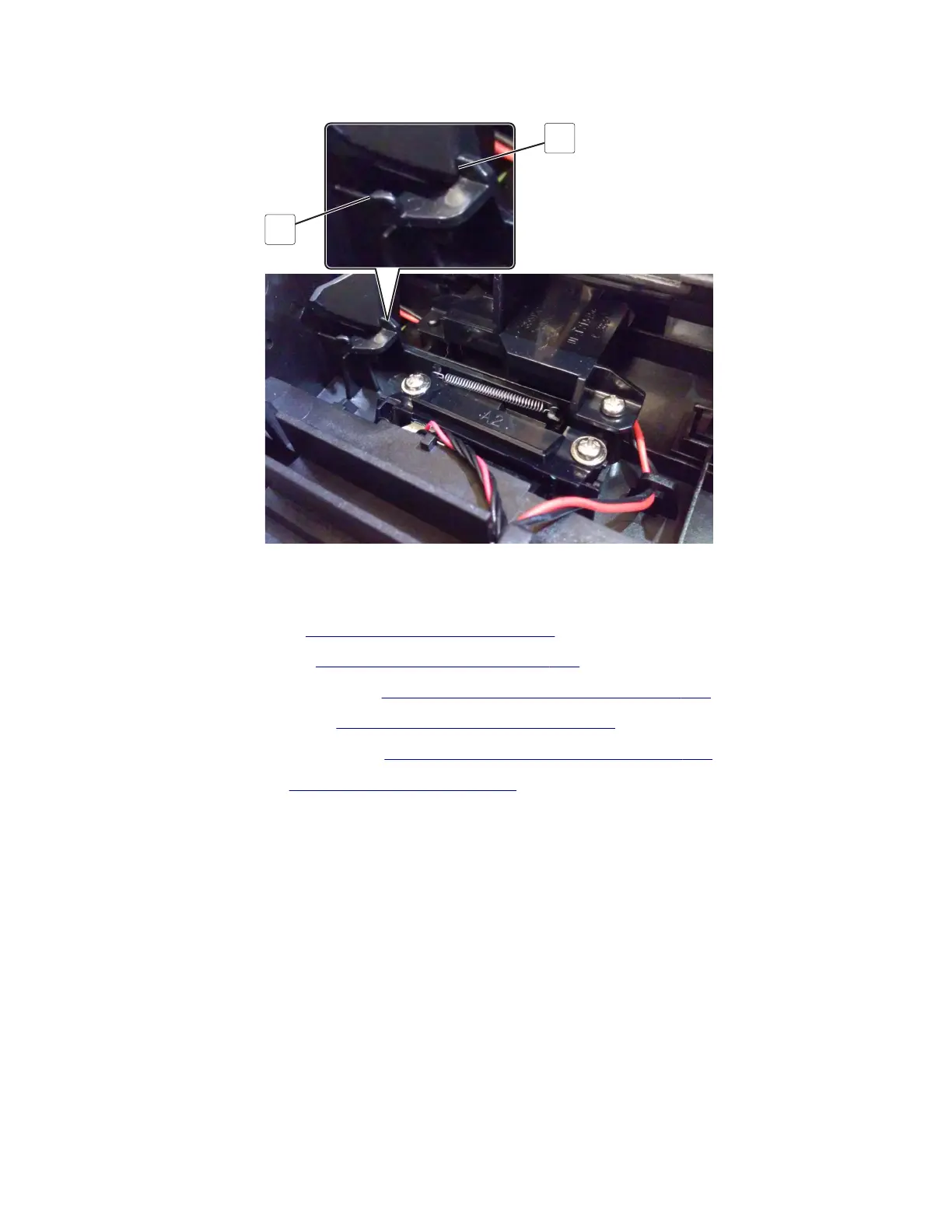

c Apply RheoGel 793 to the point of contact to the lower edge (B) where the wiper bracket glides.
B
A
Trailing edge sensor removal
1 Remove the left cover. See “Left cover removal” on page 194.
2 Remove the right cover. See “Right cover removal” on page 209.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 256.
4 Remove the power supply. See “Power supply removal” on page 239.
5 Remove the power supply shield. See “Power supply shield removal” on page 240.
6 Remove the duplex. See “Duplex removal” on page 241.
7 Disconnect the cable JACM1 from the controller board, and cut it near the frame.
