Lexmark MS310 4514-220 - Page 245

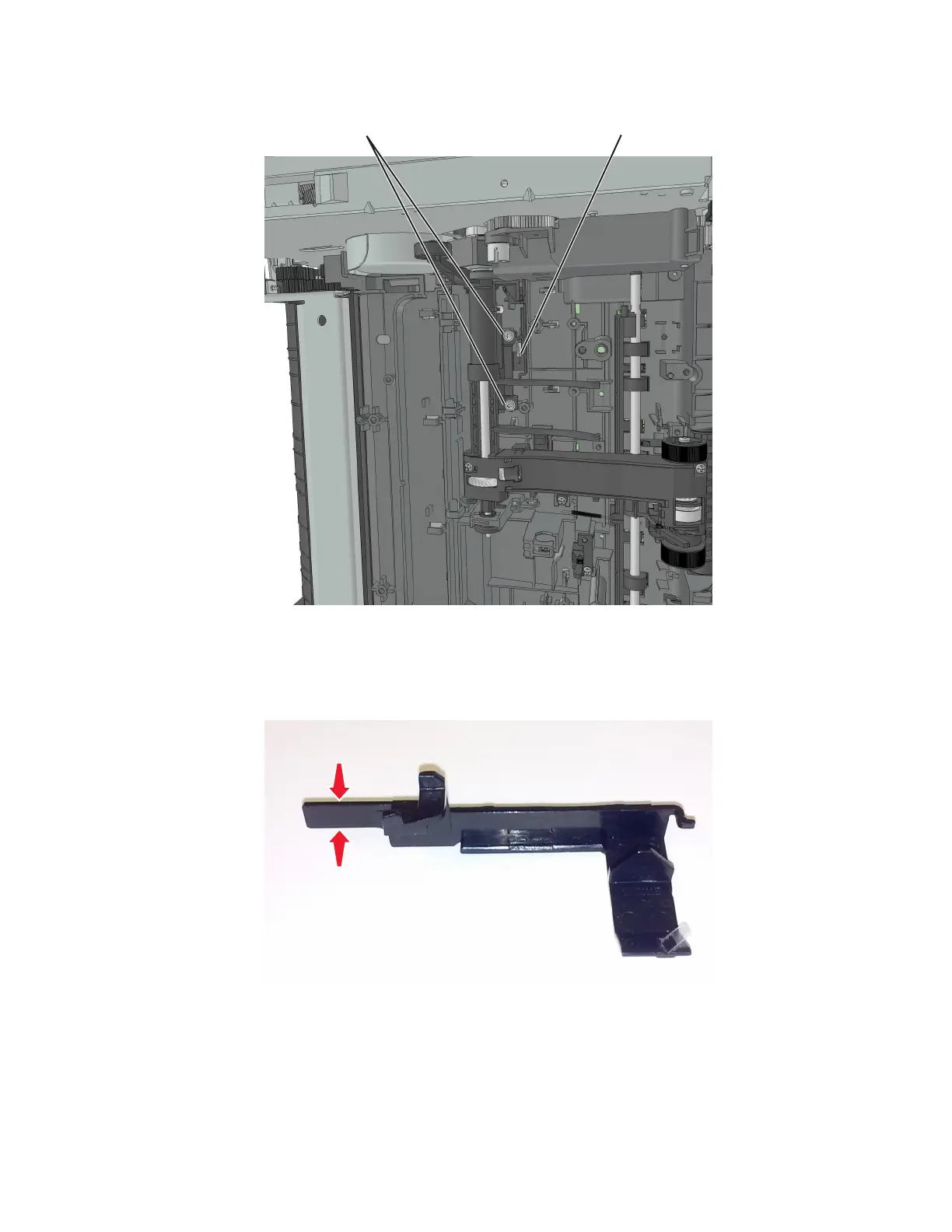

8 Remove the two screws (B), and then remove the sensor.
B A
9 Disconnect the cable from the sensor.
Installation notes:
a Apply RheoGel 793 to the top and bottom of the shutter blade extension.
b Apply RheoGel 793 to the point of contact between the bracket (A) and cam.
4514-2xx
Parts removal
245
