Redrive assembly removal
1 Remove the right cover. See “Right cover removal” on page 209.
2 Remove the left cover. See “Left cover removal” on page 194.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 256.
4 Remove the top cover. See “Top cover removal” on page 263.
5 Disconnect the cable JNRW1 from the controller board.

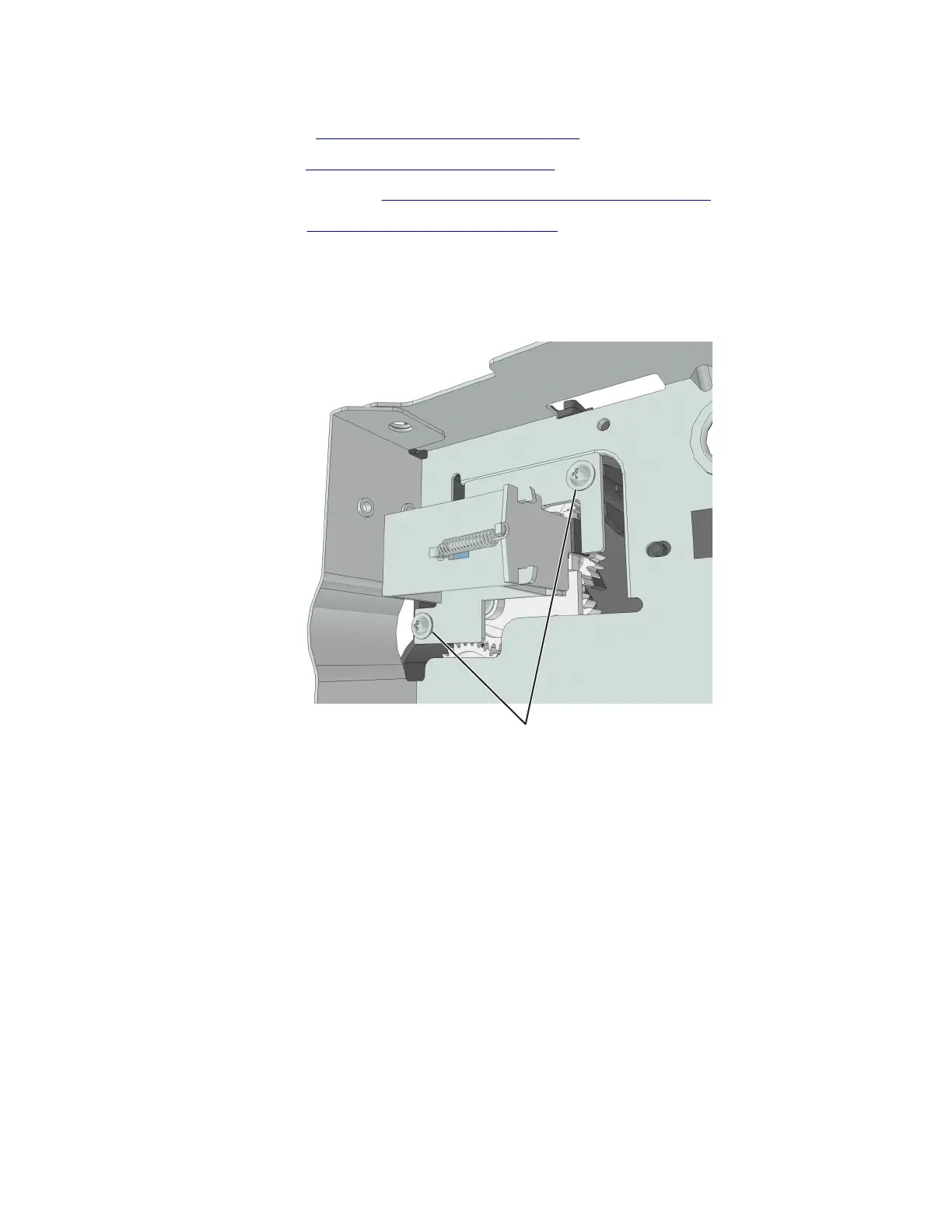

6 Remove the two screws (A), and then detach the reverse solenoid.
Note: Do not disconnect the reverse solenoid cable from the controller board.
A
4514-2xx
Parts removal
259
