Lexmark MS310 4514-220 - Front Door Removal

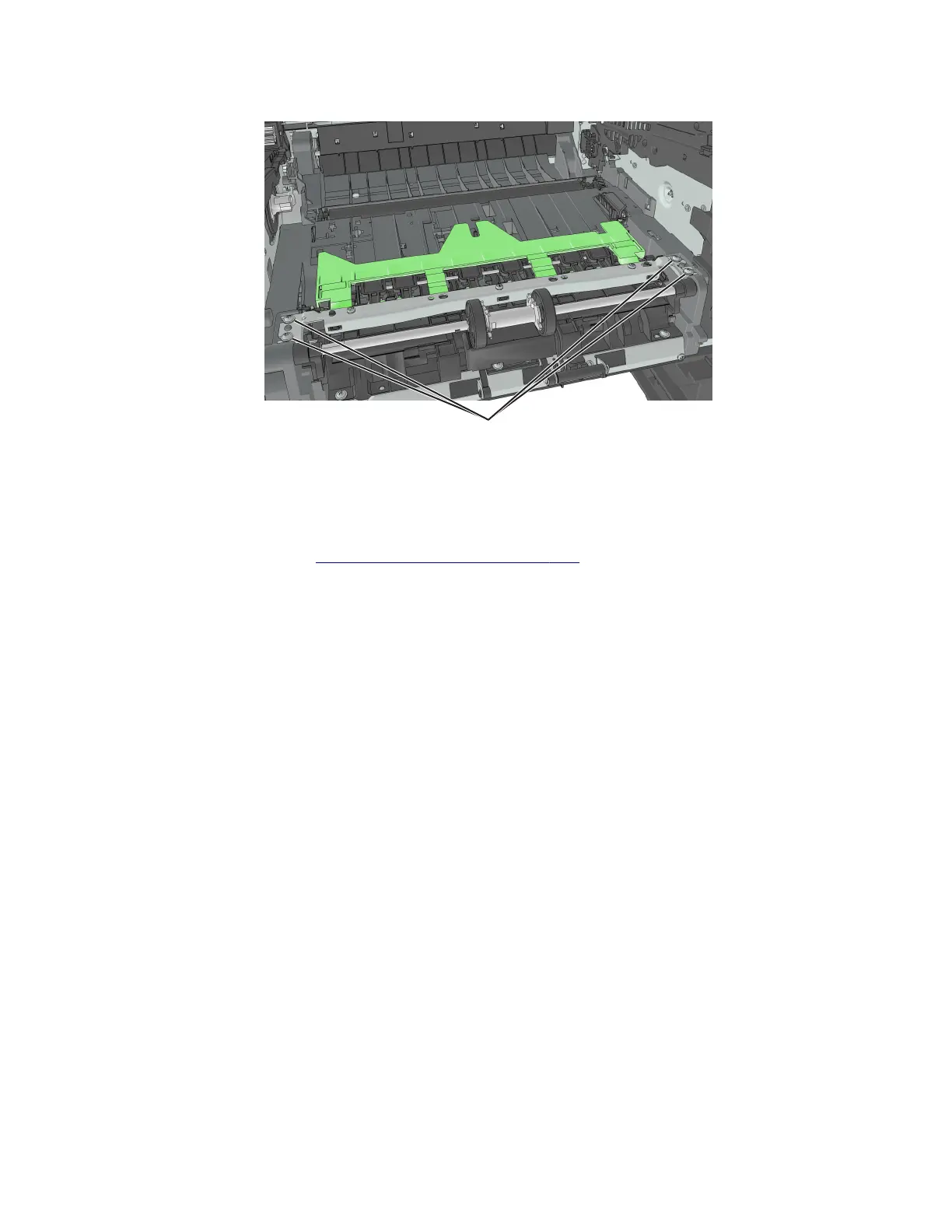

3 Remove the four screws (A), and then remove the jam access cover.
A
Front door removal
Note: This is not a FRU.
1 Remove the right cover. See “Right cover removal” on page 209.
2 Disconnect the cable JOPP1 or JOPP2 from the controller board.
3 Disconnect the cable JCVR1 from the controller board.
4514-2xx
Parts removal
231
