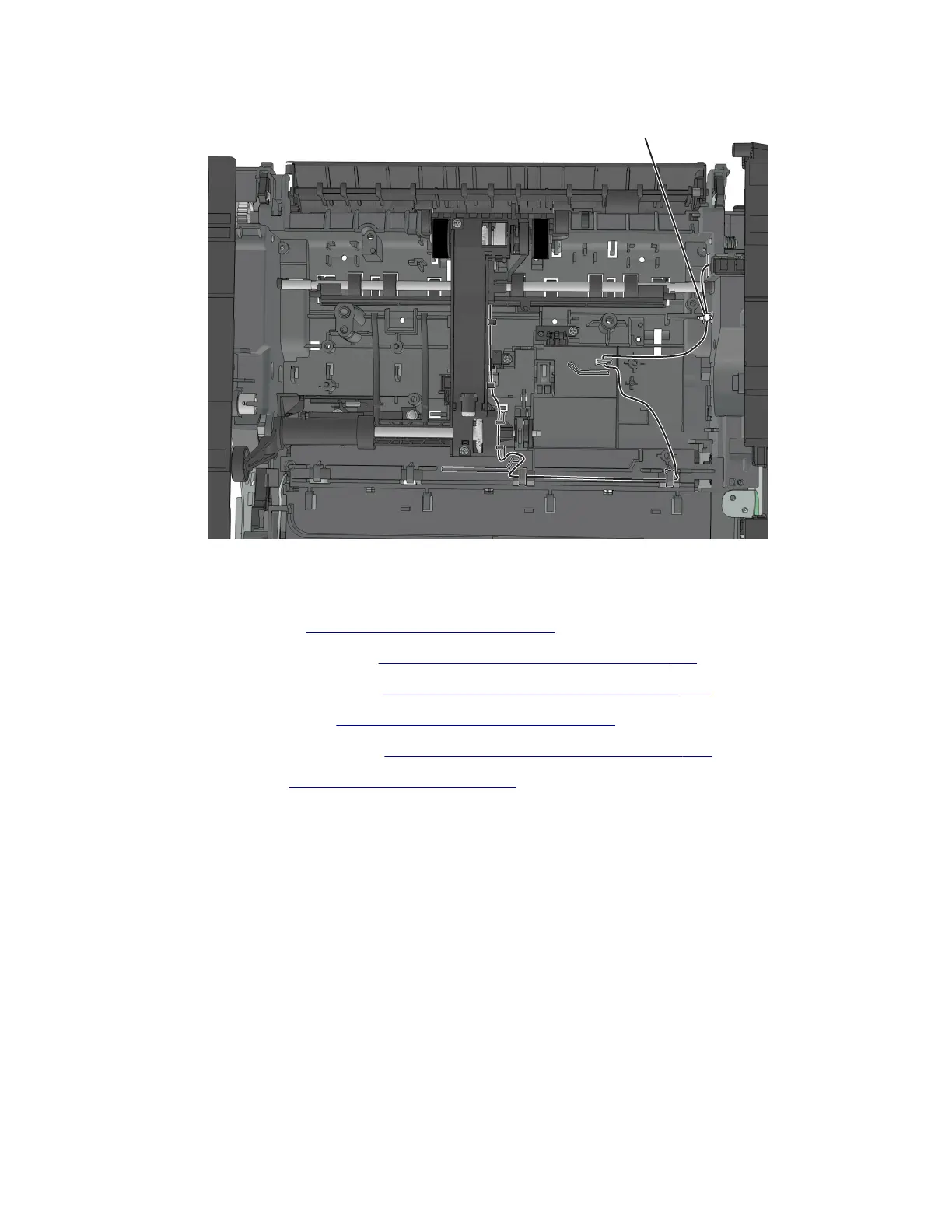

h Route the cable using the new path, and secure it with a cable tie (A).
A
ACM assembly removal
1 Remove the left cover. See “Left cover removal” on page 194.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 195.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 256.
4 Remove the power supply. See “Power supply removal” on page 239.
5 Remove the power supply shield. See “Power supply shield removal” on page 240.
6 Remove the duplex. See “Duplex removal” on page 241.
7 Use a small flat-head screwdriver to block the roller (A) and prevent the shaft from rotating.
