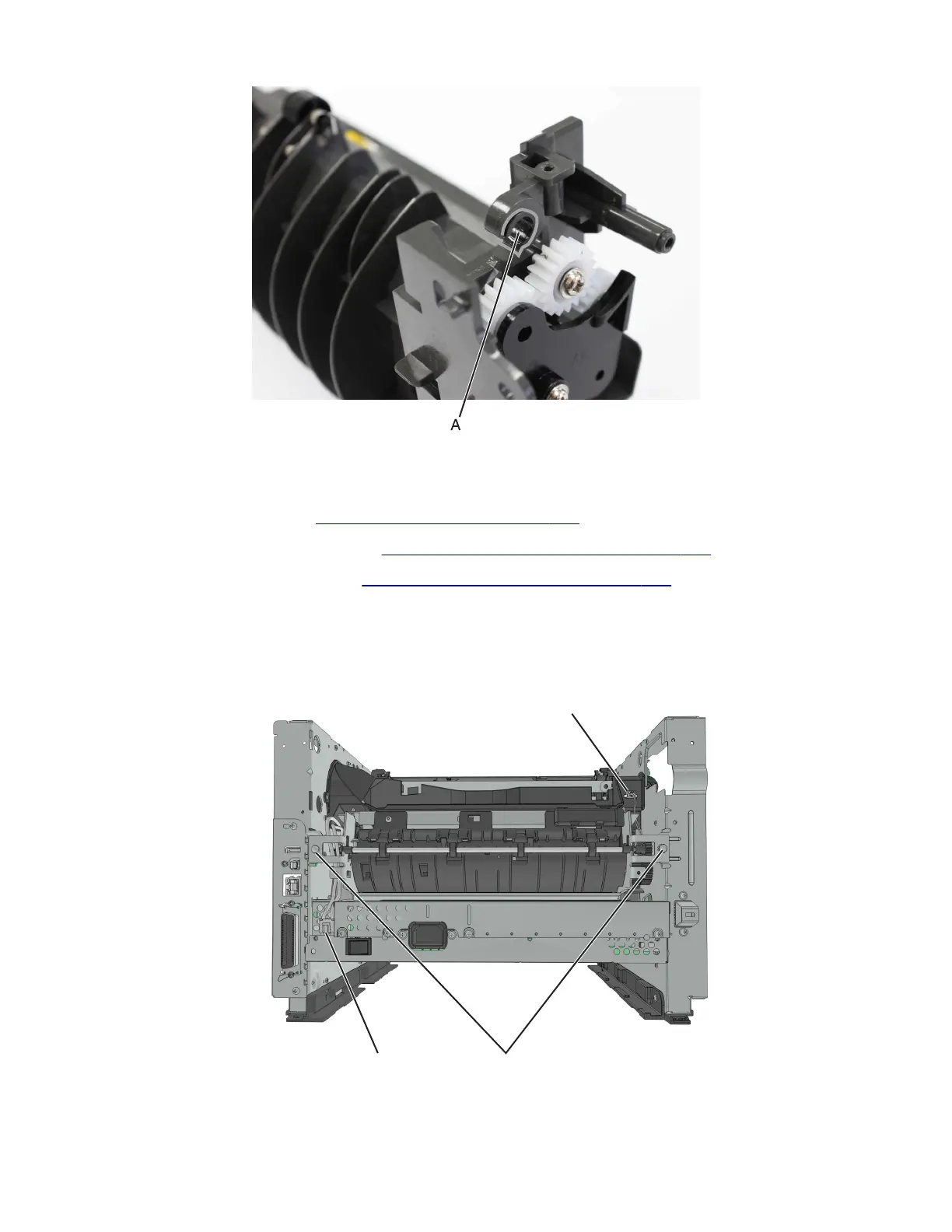

Fuser removal
1 Remove the right cover. See “Right cover removal” on page 209.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 256.
3 Remove the redrive assembly. See “Redrive assembly removal” on page 259.
4 Disconnect the cable JEXIT1 from the controller board.
5 Disconnect the two cables (A).
6 Remove the two screws (B) securing the fuser.
A B
A
4514-2xx
Parts removal
262
