4 The main drive motor turns on.
5 The EP drive assembly drives the developer shaft located in the imaging unit.
6 The exit rollers turn.
7 When ready, the equivalent light pattern of the printer status is displayed.
If no error code is displayed, but a symptom is present, go to
“Base printer symptoms” on page 153.

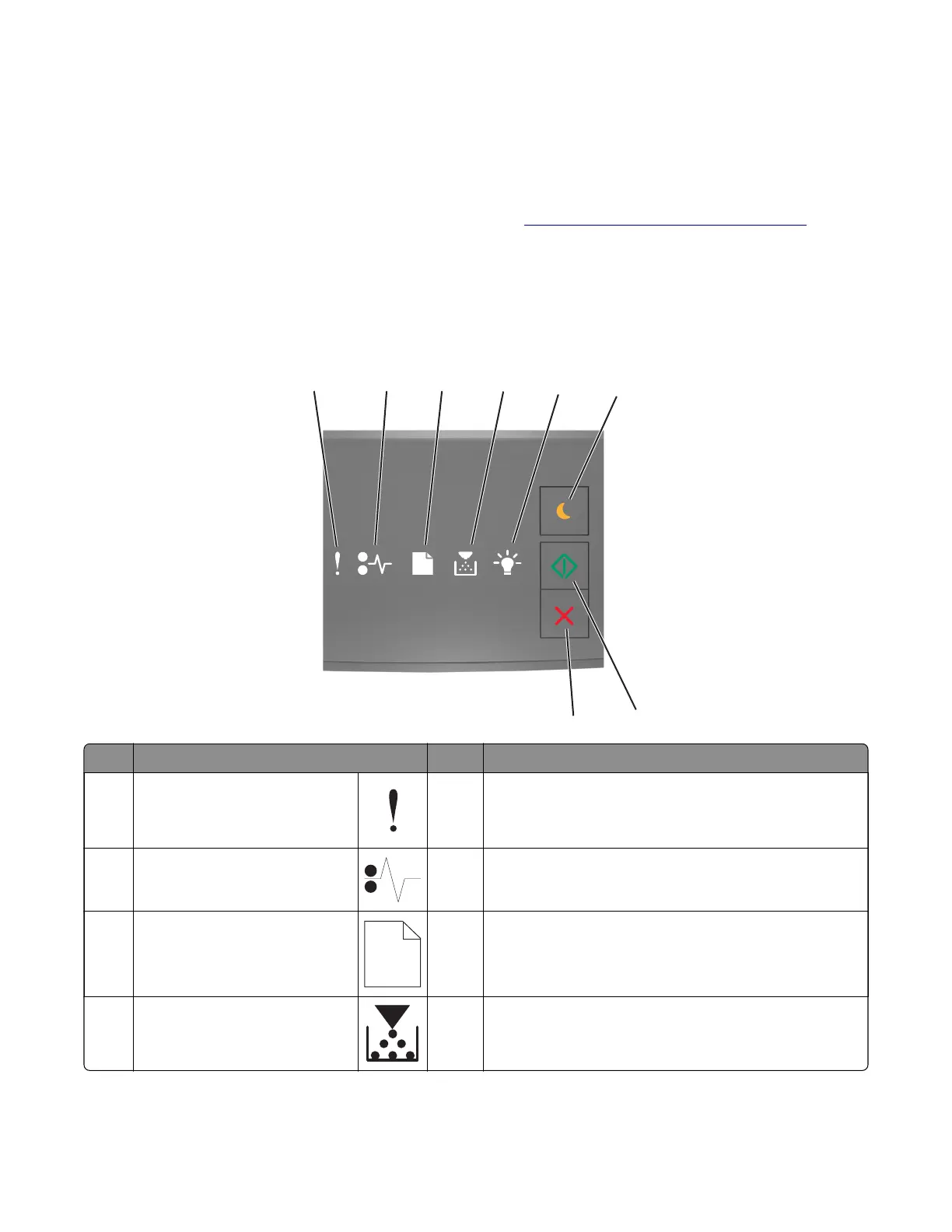

Understanding the printer control panel
Using the printer control panel
1
2
3
4
5
6
7
8
# Light or button Color Description
1 Error light
Yellow An error has occurred.
2 Paper jam light
Yellow A paper jam has occurred.
3 Load or remove paper light
Yellow Paper must be loaded in the tray or removed from the
bin.
4 Toner low or replace imaging
unit light
Yellow The toner cartridge is low on toner, or the imaging unit
needs to be replaced.
4514-2xx
Diagnostics and troubleshooting
36
