Toner cartridge smart chip contact removal
1 Remove the right cover. See “Right cover removal” on page 209.
2 Disconnect the cable JARW1 from the controller board.

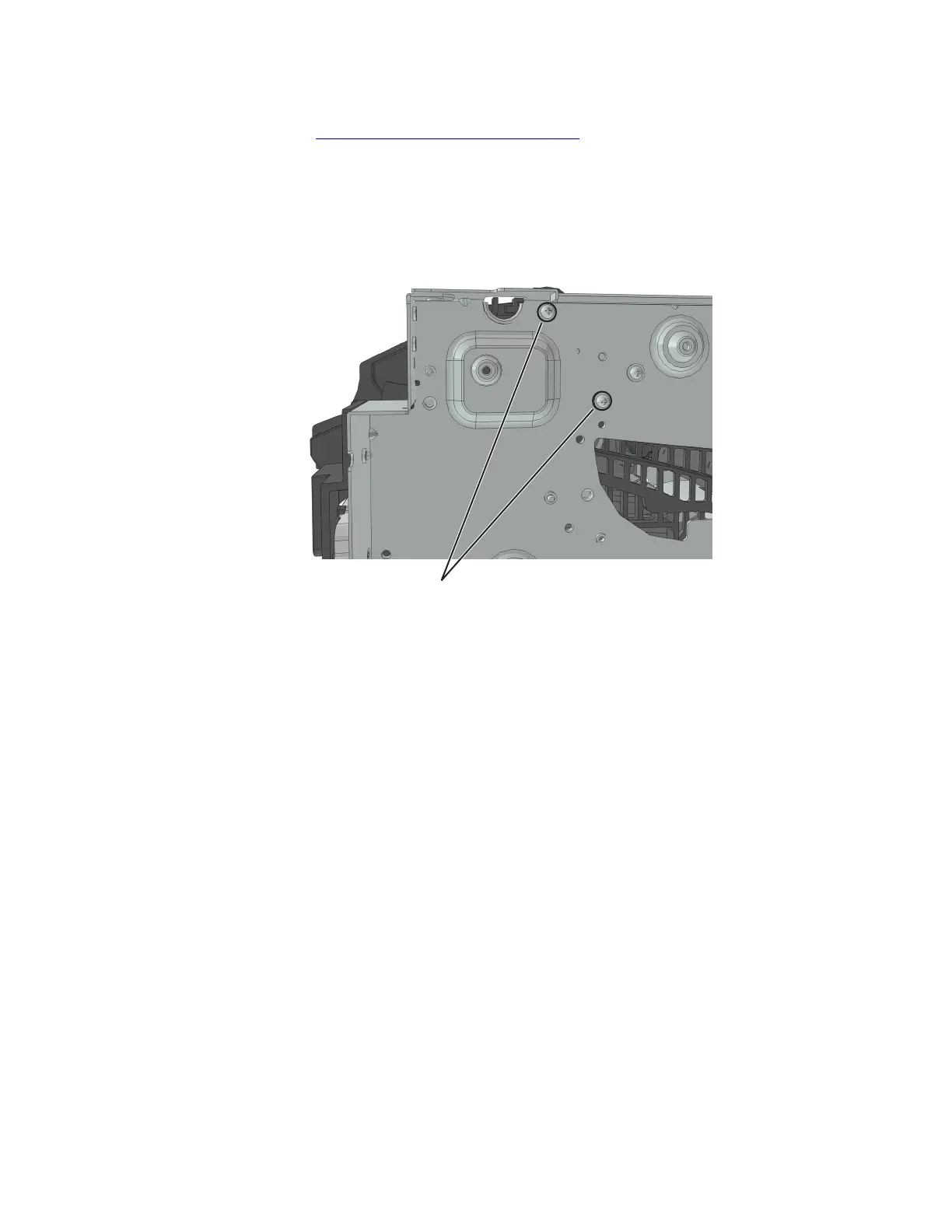

3 Remove the two screws (A).
A
4 Remove the two screws (B), and then detach the right cartridge guide.
Warning—Potential Damage: Do not cut or disconnect the cable at the rear of the right cartridge guide.
Leave the right cartridge guide dangling while performing the rest of the steps.
4514-2xx
Parts removal
212
