Laser scanning unit (LSU) removal
1 Remove the right cover. See “Right cover removal” on page 209.
2 Remove the left cover. See “Left cover removal” on page 194.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 256.
4 Remove the top cover. See “Top cover removal” on page 263.
5 Remove the cooling fan. See “Cooling fan removal” on page 209.
6 Disconnect the cable JGLV1 or J6 from the controller board.

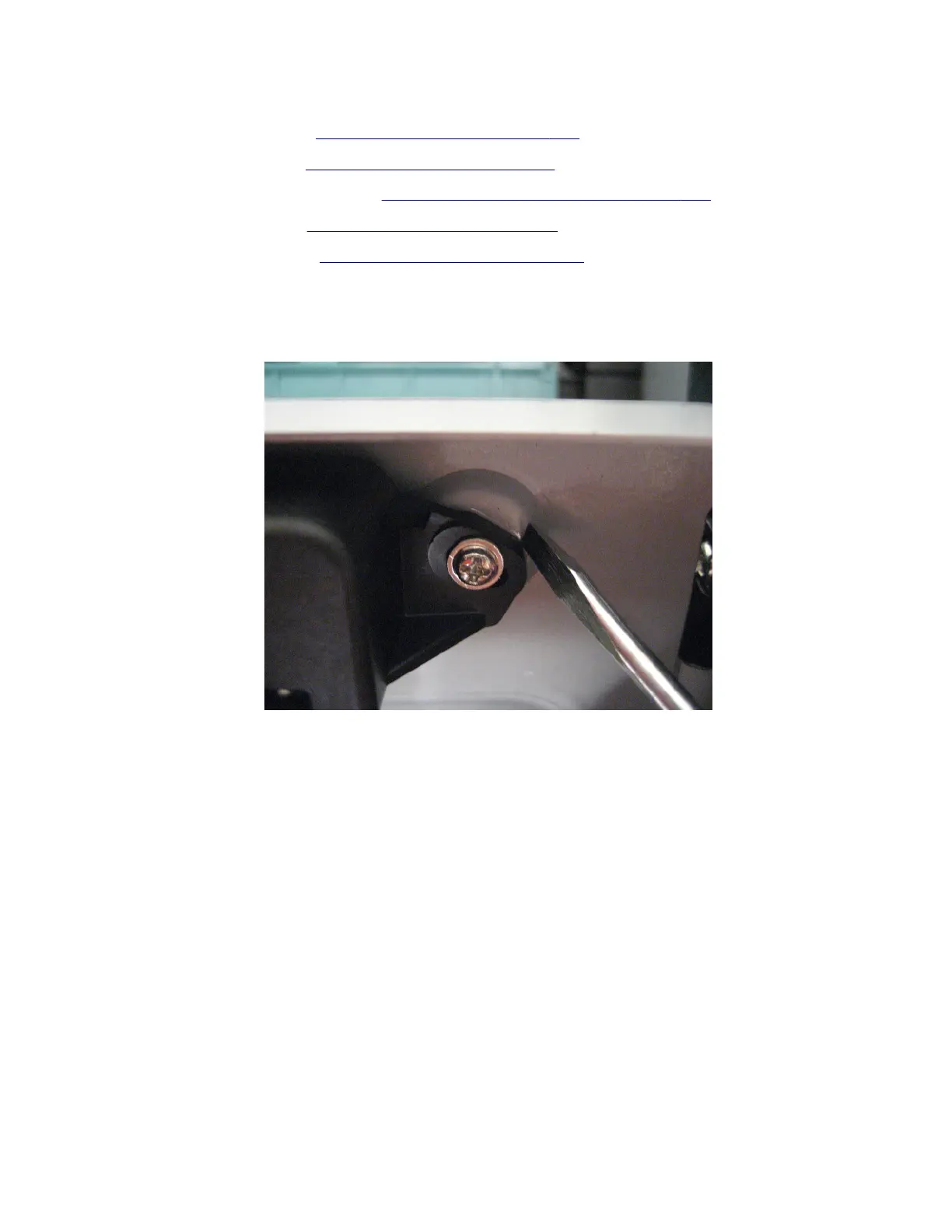

7 Before loosening the screws securing the LSU, use a sharp pencil or a small, flat-blade screwdriver to mark
the location of the LSU on the printer frame. This will be helpful in positioning the new LSU.
8 Disconnect the two cables (A) from the LSU.
4514-2xx
Parts removal
264
