Lexmark MS310 4514-220 - Main Drive Gearbox Removal

Main drive gearbox removal
1 Remove the left cover. See “Left cover removal” on page 194.

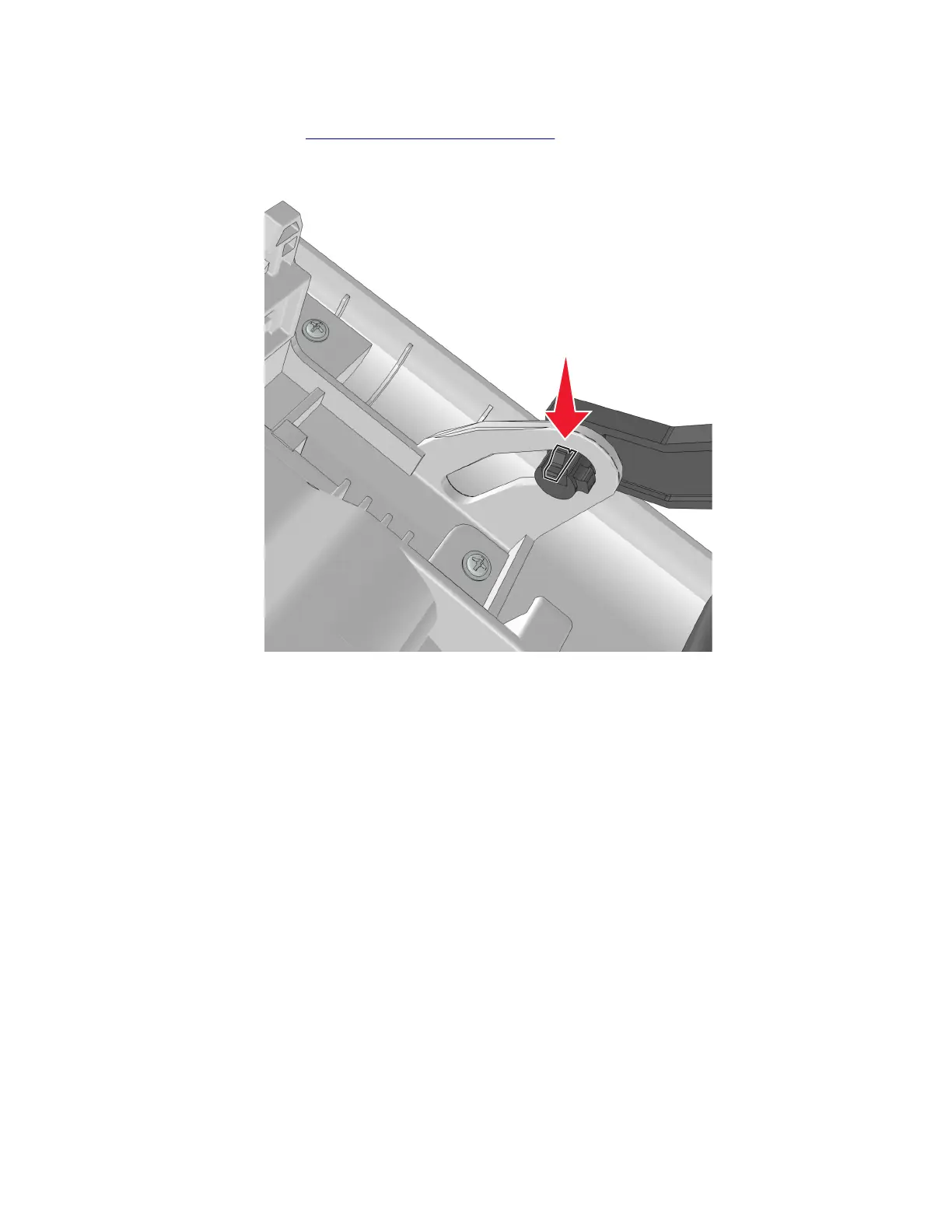

2 Squeeze the latch, and then detach the link from the front door.
4514-2xx
Parts removal
195
