Warning—Potential Damage: Do not touch the pick tire with bare hands, as this can damage the pick
roller.

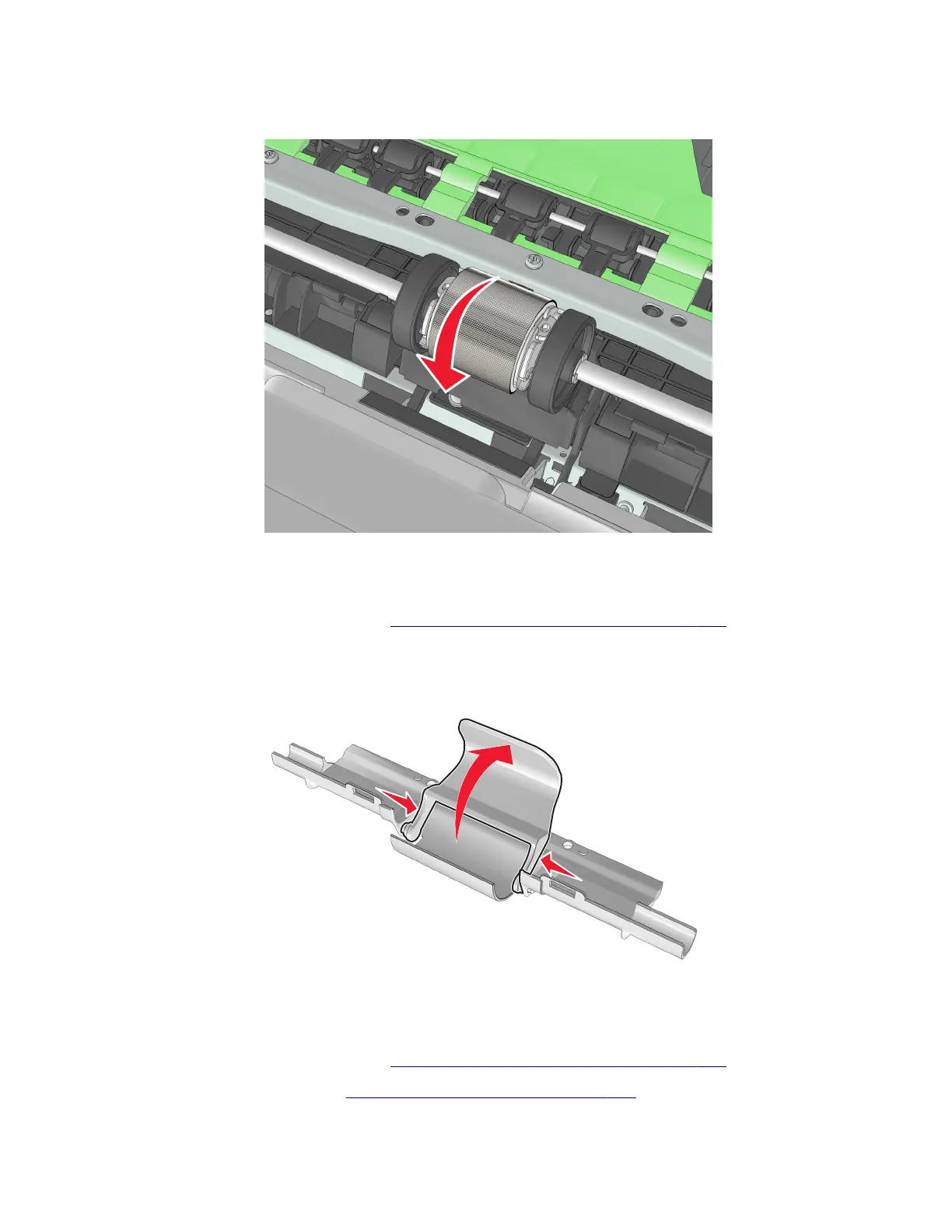

Bail removal
1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 229.
2 Rotate the bail.
3 Squeeze the latches, and then remove the bail.
Jam access cover removal
1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 229.
2 Remove the MPF pick roller. See “MPF pick roller removal” on page 229.
4514-2xx
Parts removal
230
