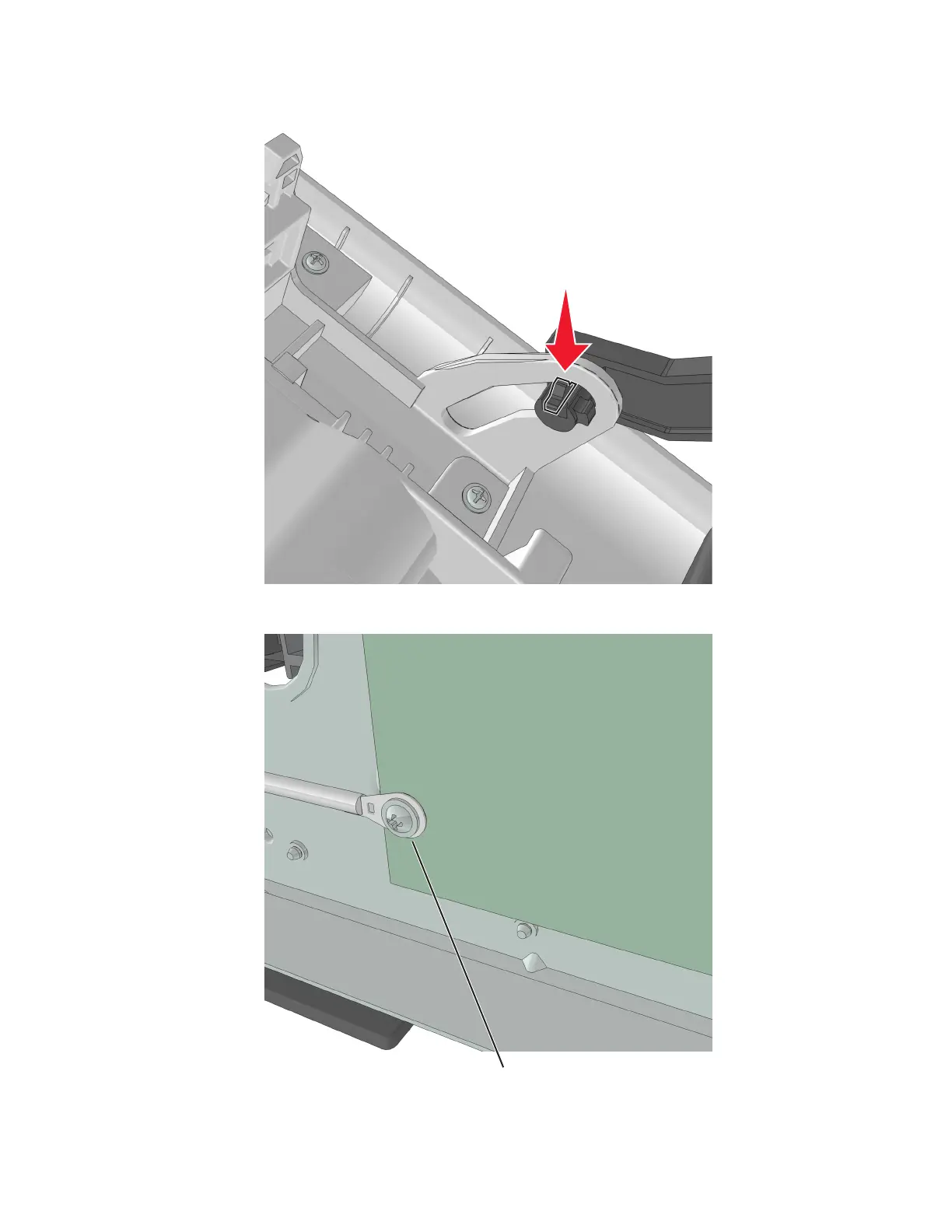

4 Squeeze the latch, and then detach the link from the front door.
5 Remove the screw (A) to disconnect the ground wire.
A
4514-2xx
Parts removal
232
