Lexmark MS310 4514-220 - Page 190

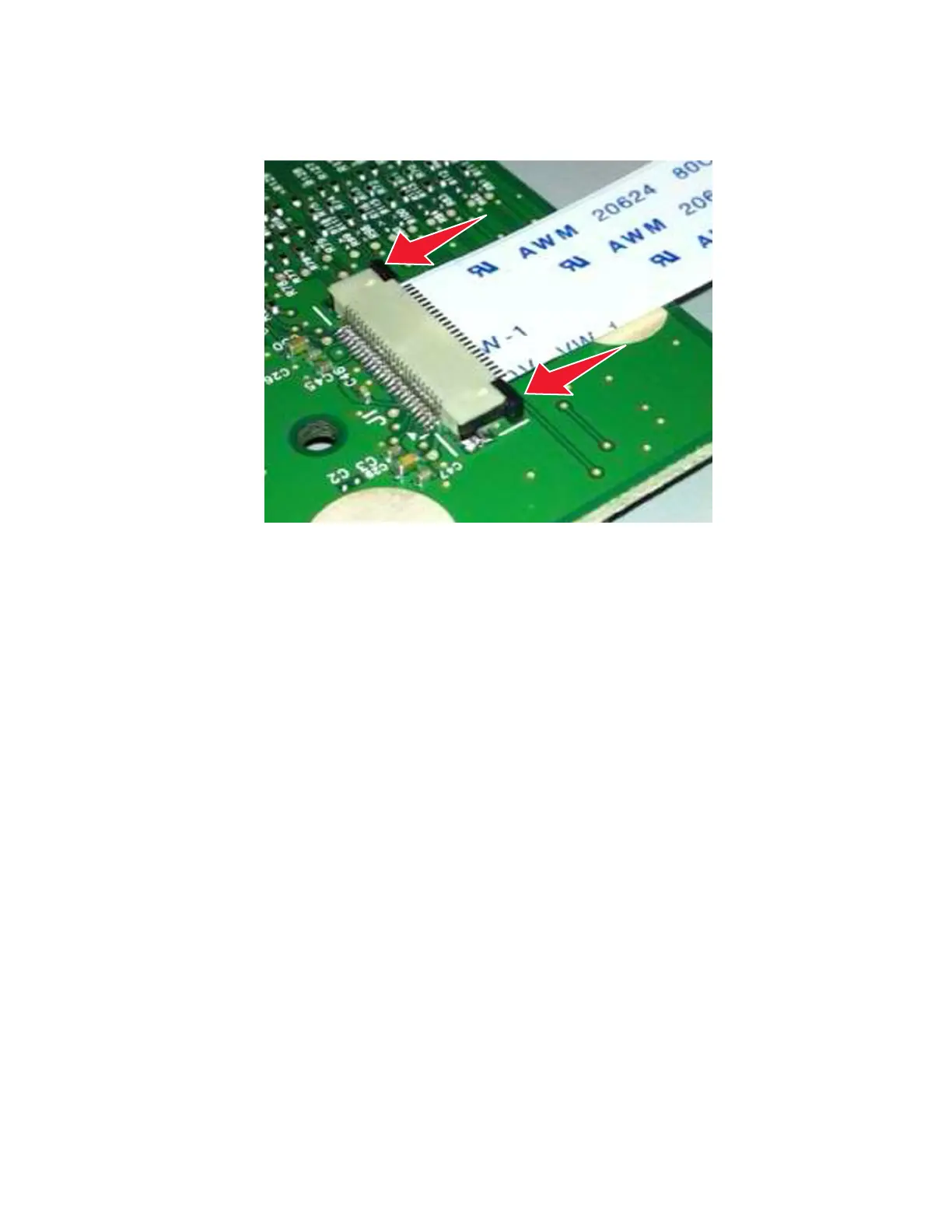

3 Slide the locking actuator towards the connector, locking the cable into place. The cable should not move
when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the
actuator to the down position.
4514-2xx
Parts removal
190
