Lexmark MS310 4514-220 - Page 236

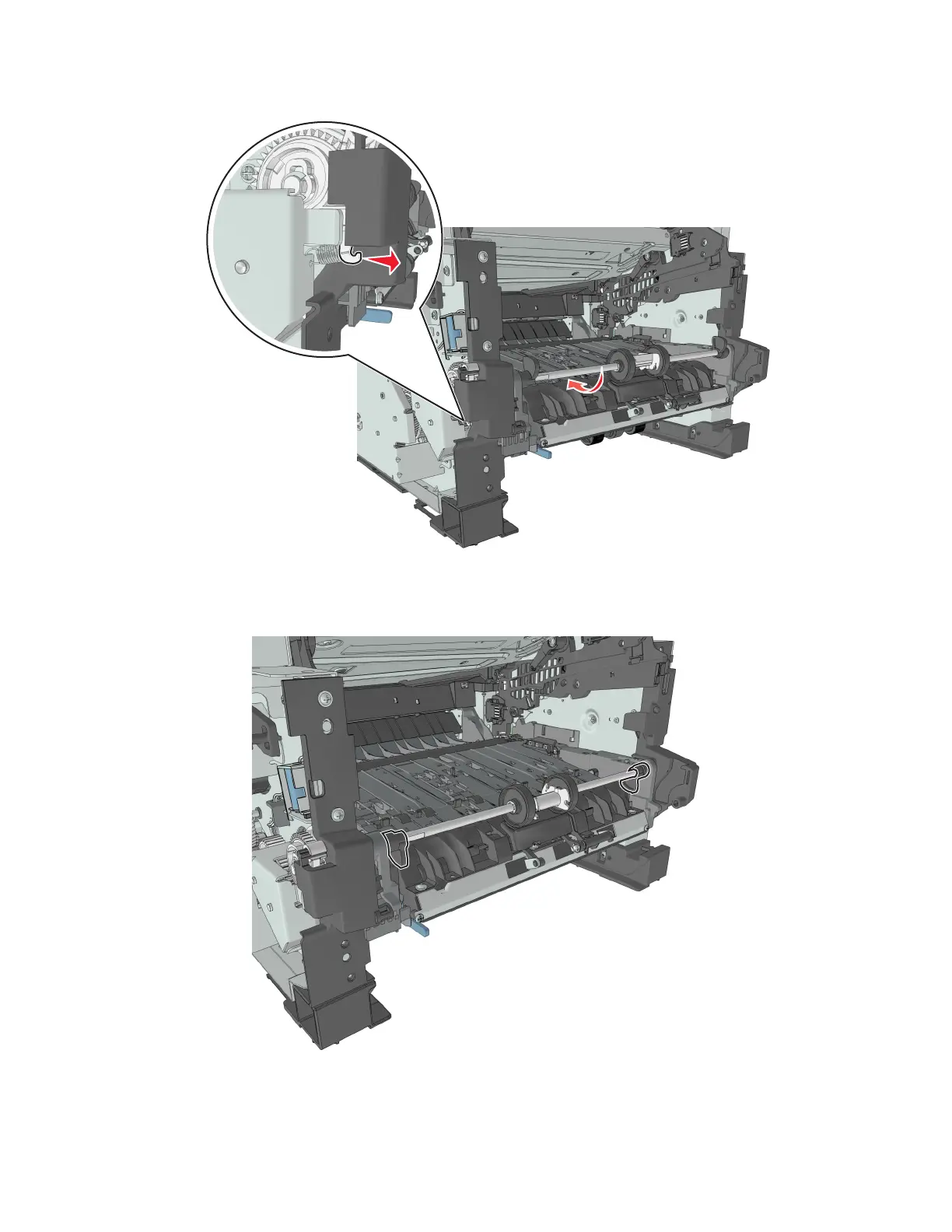

9 Rotate the MPF shaft inward so that the cams at each end point up.
10 Release the front guide from the guides at each end.
Installation note: The cams at each end of the MPF shaft must point down.
4514-2xx
Parts removal
236
