4 Remove the power supply. See “Power supply removal” on page 239.
5 Remove the power supply shield. See “Power supply shield removal” on page 240.
6 Remove the duplex. See “Duplex removal” on page 241.
7 Disconnect the cable JDUPPI 1 from the controller board.

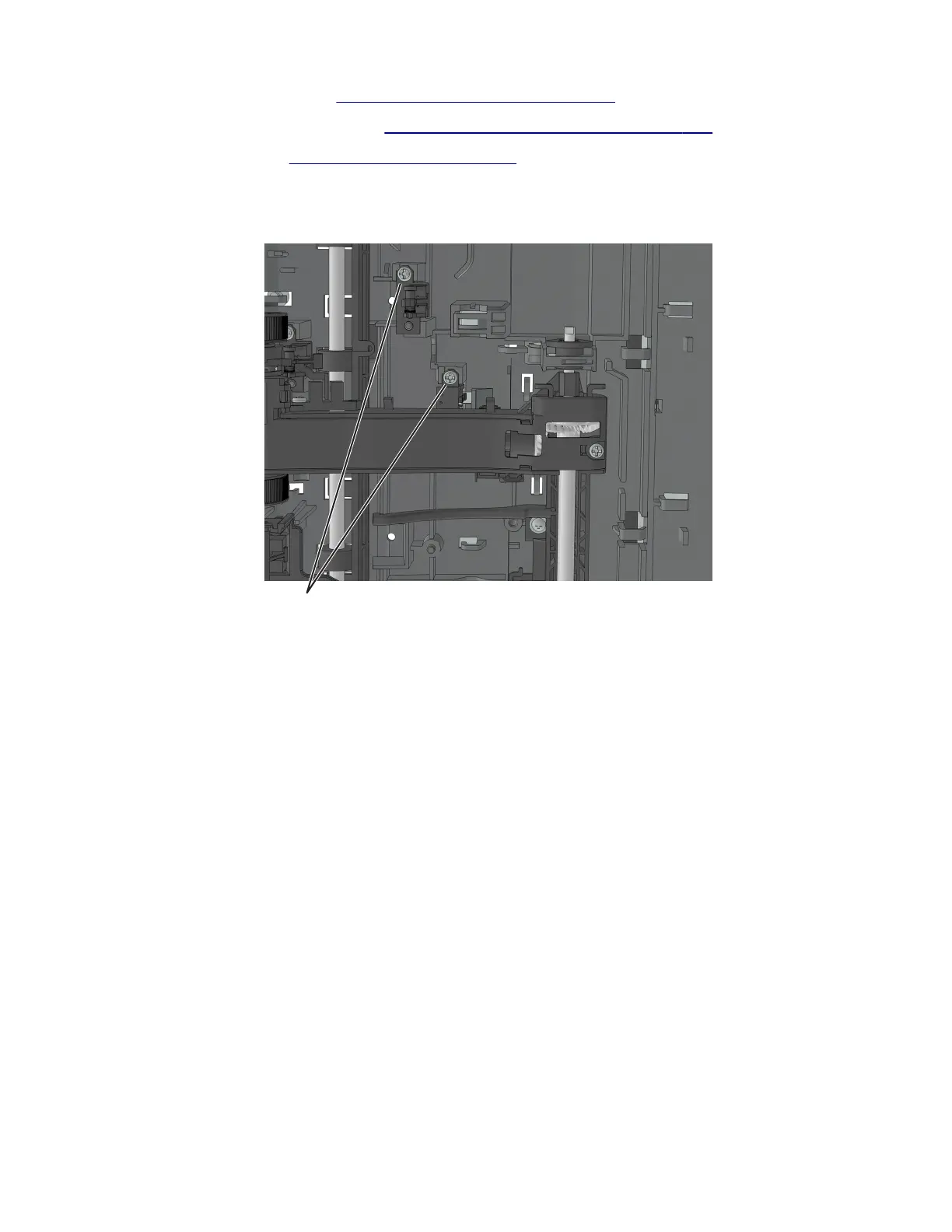

8 Remove the two screws (A), and cut the cable near the frame to detach the sensors.
A
9 Remove the other half of the cable from the printer.
Installation note: Route the cable using the new path, and secure it with a cable tie (A).
4514-2xx
Parts removal
243
