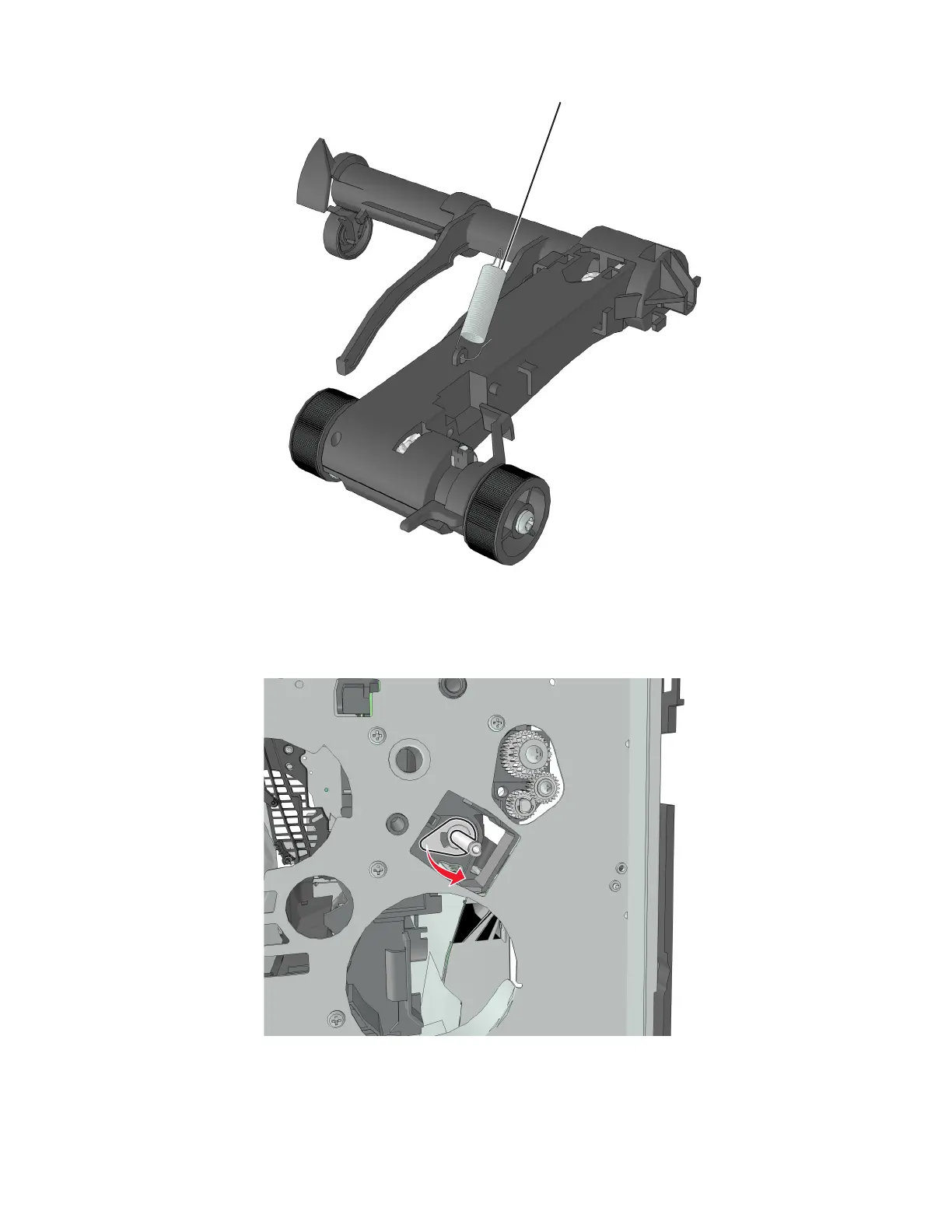

12 Pry the pointed end of the ACM bushing to release the locking pin underneath.

13 Rotate, and then remove the ACM bushing.

14 Pry the pointed end of the 2nd pickup pushing to release the locking pin underneath.

4514-2xx

Parts removal

254
