Lightware UMX-TPS-TX100 Series

2. Installation UMX-TPS-TX100 series – User's Manual 15


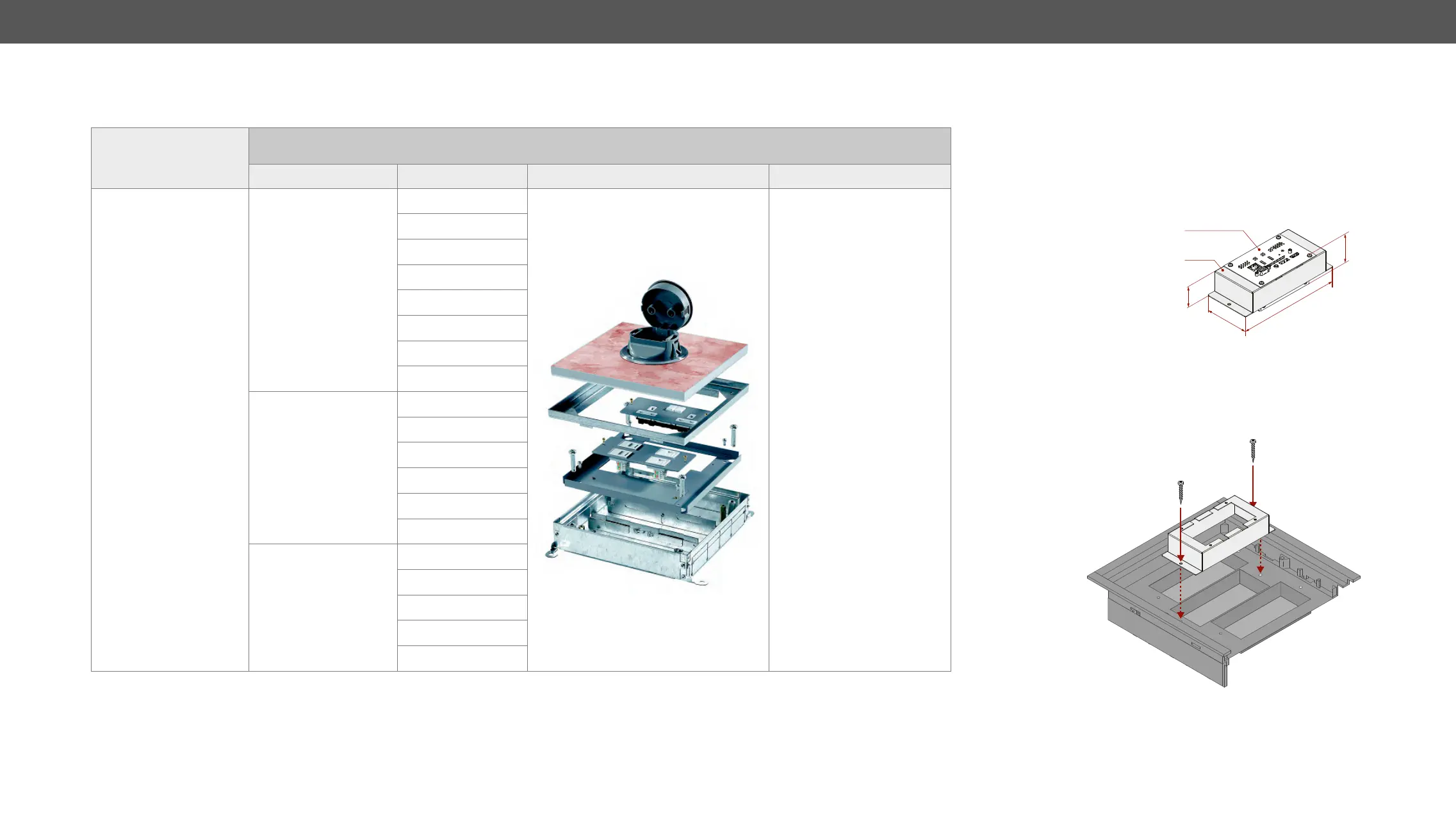

Floor Box Compatibility Table
Compatible Lightware
mounting bracket kit
Compatible Service Outlet Boxes
Product family Part number Sample picture Comment

MK Cablelink Plus
Screed System
CUB100UK-1
The transmitter unit can be
mounted to the place of a

unserviced power plate or an
unserviced data plate).
CUB200UK-2
CUB265UK-3
CUB340UK-4
CUB100XUK-1
CUB200XUK-2
CUB265XUK-3
CUB340XUK-4
MK Cablelink Single
Pan Boxes
CRB100UK-70-1GRY
CRB265UK-70-3GRY
CRB340UK-70-4GRY
CRB100UK-1GRY
CRB265UK-3GRY
CRB340UK-4GRY
MK Cablelink Onix Plus
Screeded Floor System
NXB200X-2
NXB265X-2
NXB265X-3
NXB340X-3
NXB340X-4

The FP-UMX-TPS MKS kit can be ordered separately, please contact
sales@lightware.com.
Dimensions of the Bracket
The following drawing and table represents the dimensions of the
Lightware brackets assembled with the transmitter unit. The values
are in mm.
Dimensions and layout of the MKS bracket
Step 1. 
DIN 7981
3,5x19 PZ2 self tapping screws.
36
59.3
77
178
FP-UMX-TPS-TX100
series transmitter
FP-UMX-TPS MKS
bracket




