The connector is used for receiving unbalanced analog audio

phone jack, phone plug and mini-jack plug.

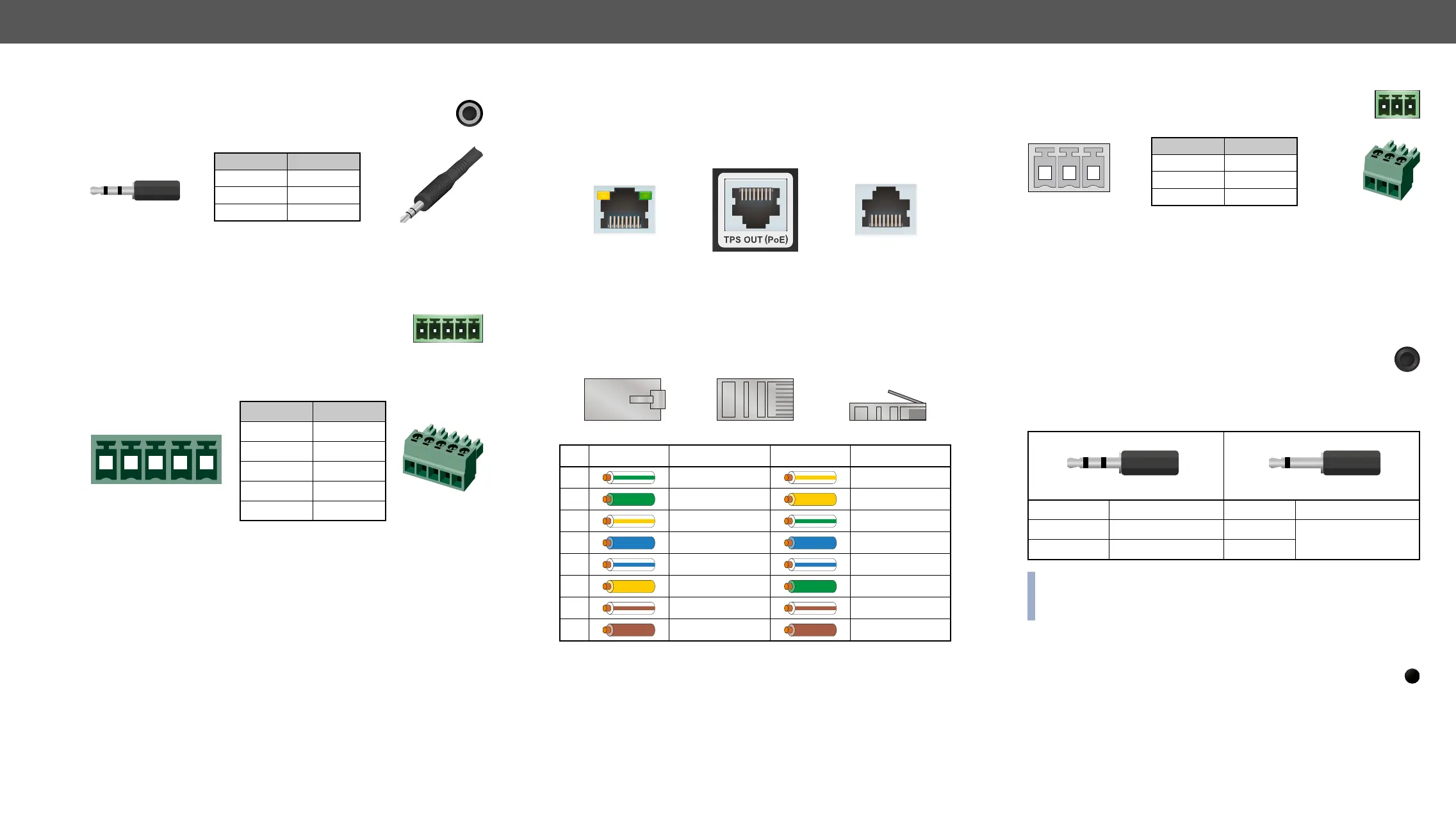

Pin nr. Signal
1 Left
2 Right
3 Ground
Jack audio plug pin assignments
          Audio
Interface section.

5-pole Phoenix connector is used for balanced
analog audio input in the UMX-TPS-TX140 and
UMX-TPS-TX140-Plus transmitters. Unbalanced audio signals can
be connected as well. See more details about the balanced and
unbalanced input port wiring in the  section.
Pin nr. Signal
1 Left+
2 Left-
3 Ground
4 Right-
5 Right+
Analog audio connector and plug pin assignments
Compatible Plug Type
Phoenix
®

          
Audio Interface section.
1 2 3
1 2 3 4 5

         
LAN ports. Always use high quality Ethernet cable for connecting
transmitters and receivers. Maximum CATx cable distances can be
found in the Maximum Extension Distances section.
18
81
18
LAN connector TPS connector of
UMX-TPS-TX100
series transmitters
TPS connector of FP/
WP-UMX-TPS-TX100
series transmitters
Wiring of TPS and LAN Cables
Lightware recommends the termination of LAN cables on the basis of

Pin assignments of RJ45 connector types
TPS Interface
section.
1
8
Top
8
1
Bottom
Side
Pin TIA/EIA T568 A Color and name TIA/EIA T568 B Color and name
1
 
2
green solid orange solid
3
 
4
blue solid blue solid
5
 
6
orange solid green solid
7
 
8
brown solid brown solid
RS-232 Connector
The extender contains a 3-pole Phoenix connector which is
used for RS-232 serial connection.
Pin nr. Signal
1 Ground
2 TX data
3 RX data
RS-232 connector pin assignments
Compatible Plug Type
Phoenix
®

         
Serial Interface section.
IR Connector
IR detector and IR emitter can be connected to the
UMX-TPS-TX100 series extenders with TRS (Tip, Ring, and
Sleeve) connectors. They are also known as (3,5 mm or approx.

assignments are the following for the detector and the emitter:
1 2 3
1 2-3
 
1 Tip Signal (active low) 1 Tip +5V
2 Ring GND 2 Ring
Signal (active low)
3 Sleeve +5V 3 Sleeve
INFO: Ring pole of the emitter is optional. If your IR emitter has
three-pole TRS plug, then the Ring and the Sleeve are the same
signal (Output - ).
         
IR Interface section.
IR Detector
       
detector on front panel of the wall plate. The sensor is used for
receiving IR signals from remote control or other IR emitter devices.
         
IR Interface section.
