GPIO - General Purpose Input/Output Ports

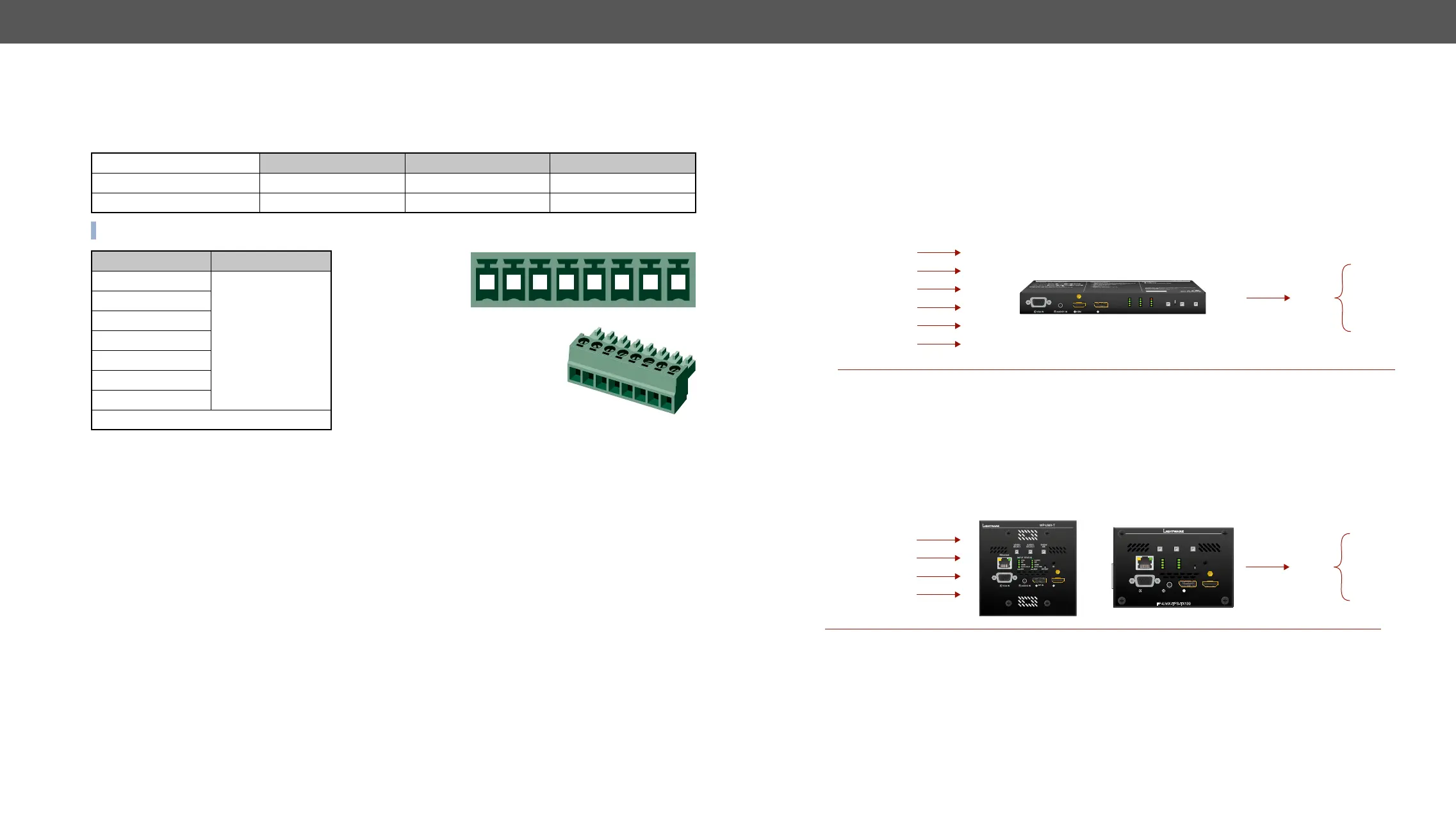

UMX-TPS-TX130, UMX-TPS-TX140, and UMX-TPS-TX140-Plus transmitters contain a 8-pole Phoenix connector
with seven GPIO pins, which operates at TTL digital signal levels and can be set to high or low level (Push-Pull).
The direction of the pins can be input or output (adjustable). Voltage ranges for GPIO inputs are the following:
Input voltage [V] Output voltage [V] Max. current [mA]
Logical low level 0 - 0.8 0 - 0.5V 30
Logical high level 2 - 5 4.5 - 5V 18
INFO: The maximum total current for the seven GPIO pins is 180 mA.
Pin nr. Level and direction
1

2
3
4
5
6
7
Ground
GPIO connector and plug pin assignments
Compatible plug type
Phoenix
®

GPIO Interface section.
1 2 3 4 5 6 7 8
TPS Extender Concept

digital conversion and audio embedding functions. The devices receive analog (VGA, DVI-A) and digital (DP,

Ethernet, RS-232, and Infrared signals. Analog audio signals can be received via the 3.5” TRS (jack) and the
5-pole Phoenix connectors.
The device can be controlled via Ethernet, RS-232 or Infrared and is able to control third-party devices via the
RS-232, Ethernet, Infrared interfaces.
The summary of the interfaces of UMX-TPS-TX100 series transmitters
