3. Product Overview UMX-TPS-TX100 series – User's Manual 23
3
Product Overview
The following sections are about the physical structure of the device, input/
output ports and connectors:

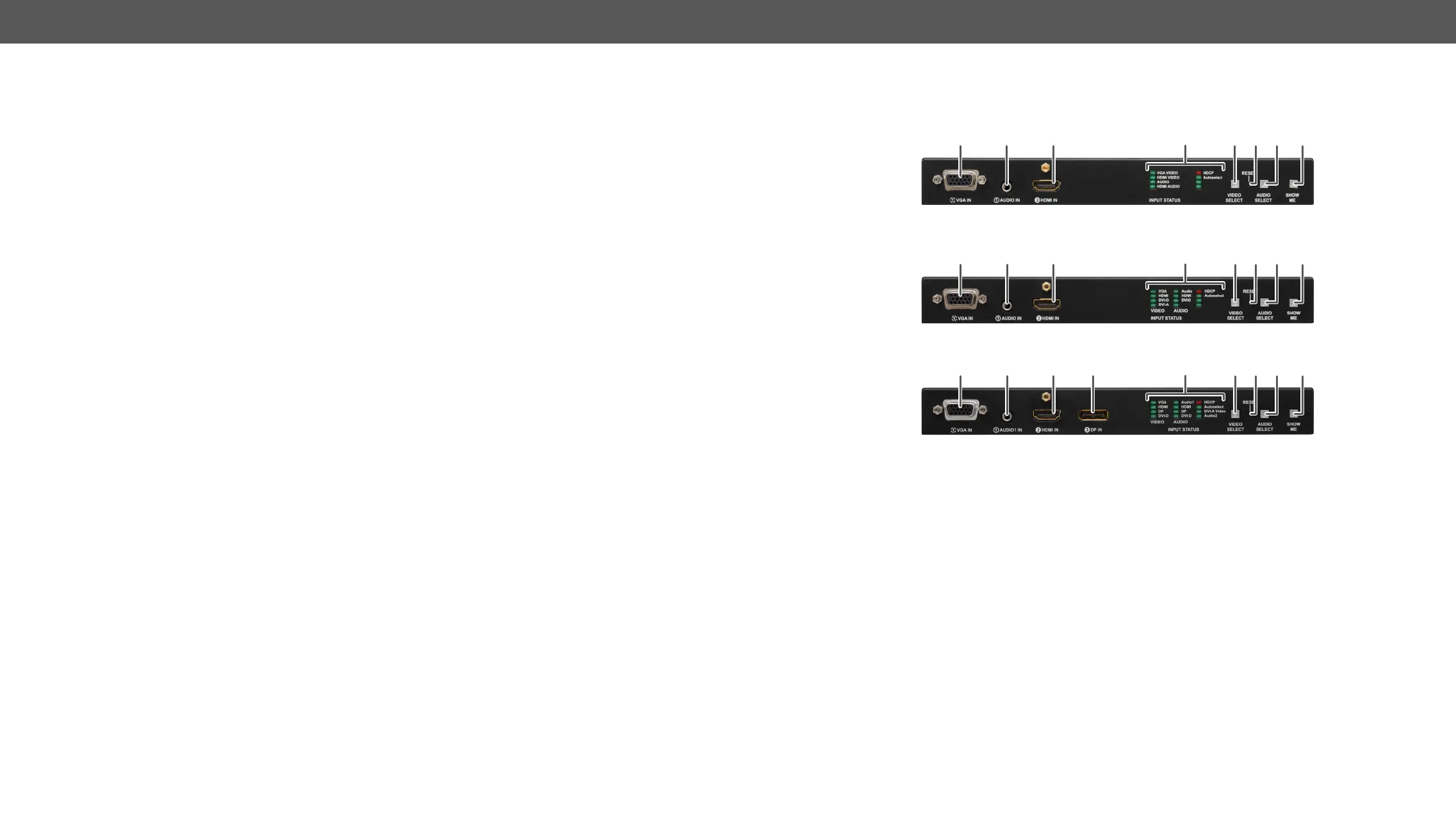

Front View - UMX-TPS-TX100 series
UMX-TPS-TX120
UMX-TPS-TX130
UMX-TPS-TX140 /
UMX-TPS-TX140-Plus
1
VGA input D-SUB connector for analog video signal.
2
Audio1 input 
3
 HDMI connector for DVI video or HDMI video and audio.
4
DisplayPort input 
5
Input Status LEDs LEDs give feedback about the current status of the unit and input signals.
See the details in the Front Panel LEDs section.
6
Video Select button Button for switching between video sources. See the details in the Video
Select Button section.
7
Reset button Pushing the button reboots the unit.
8
Audio Select button Button for switching between audio sources. See the details in the Audio
Select Button section.
9
Show Me button 
(bootload) mode, DHCP settings, restore factory default settings,
condition launching in Event Manager).
1 2 3
5
76 8 9
1 2 3
5
76 8 9
1 2 3
5
76 8 94
