5. Software Control - Lightware Device Controller UMX-TPS-TX100 series – User's Manual 48

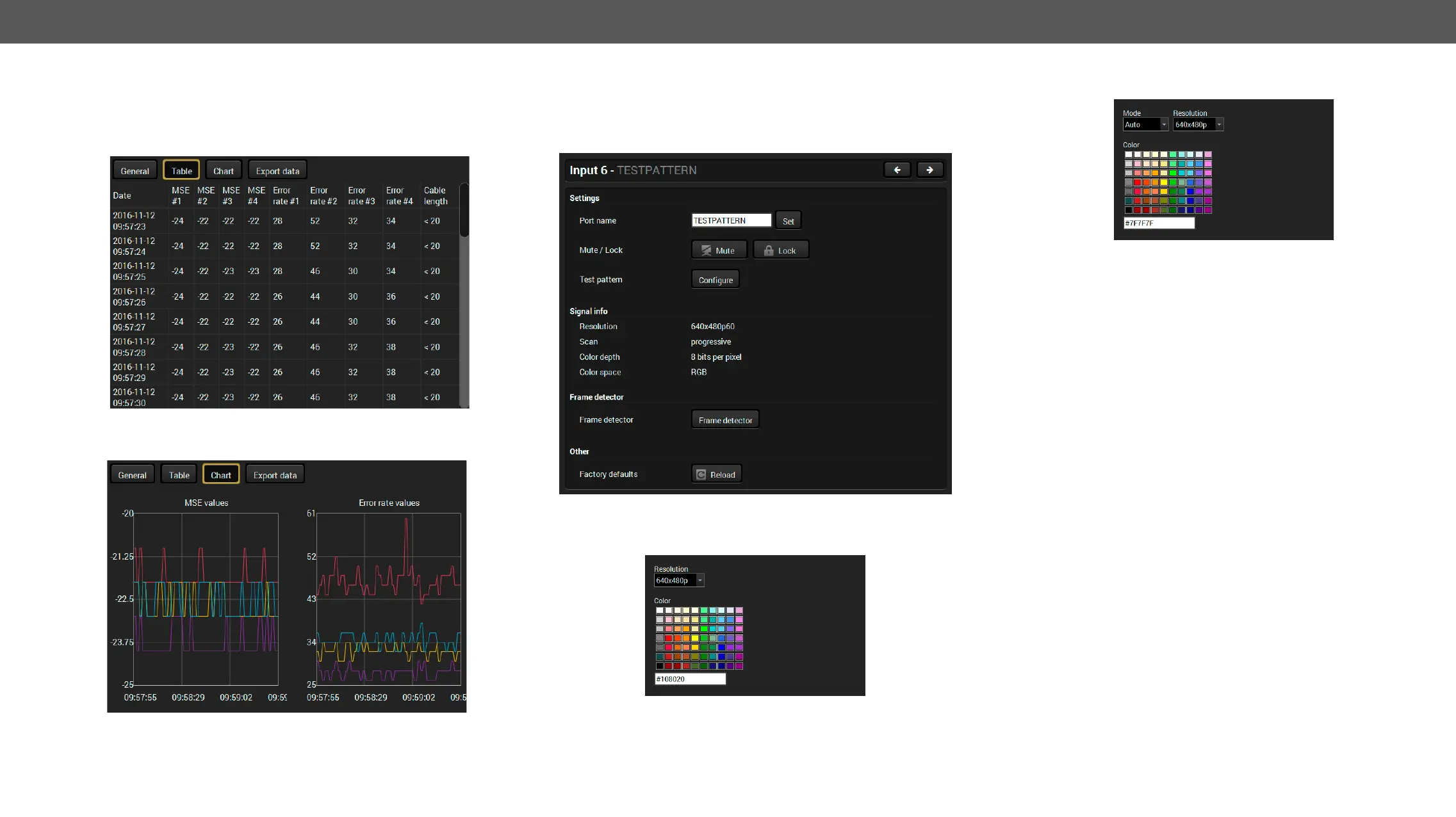

Table and Chart Views
Cable diagnostics can be displayed in advanced modes as well. Two
ways are available: table view and chart view. Data can be exported to a
Export data button.
Table view of cable diagnostics
Chart view of cable diagnostics
Mode: Auto: No sync screen signal is sent when there
is no incoming signal.
Always on: No sync screen signal is sent always,
independently from the incoming signal.
Always off: No signal is sent when there is no
incoming signal.
Resolution: Set the desired image resolution from the drop-down
menu.
Color: Click on the desired color or use the sliders and press
the Set color button to store.
Test Pattern
The port generates an image which can be displayed when there is no
incoming signal on the port. Each port can have individual settings
which can be set by clicking on the Congure button.
Port properties window of the Test pattern input
Resolution: Set the desired image resolution from the drop-down
menu.
Color: Click on the desired color or use the sliders and press
the Set color button to store.
