Lightware UMX-TPS-TX100 Series

3. Product Overview UMX-TPS-TX100 series – User's Manual 25

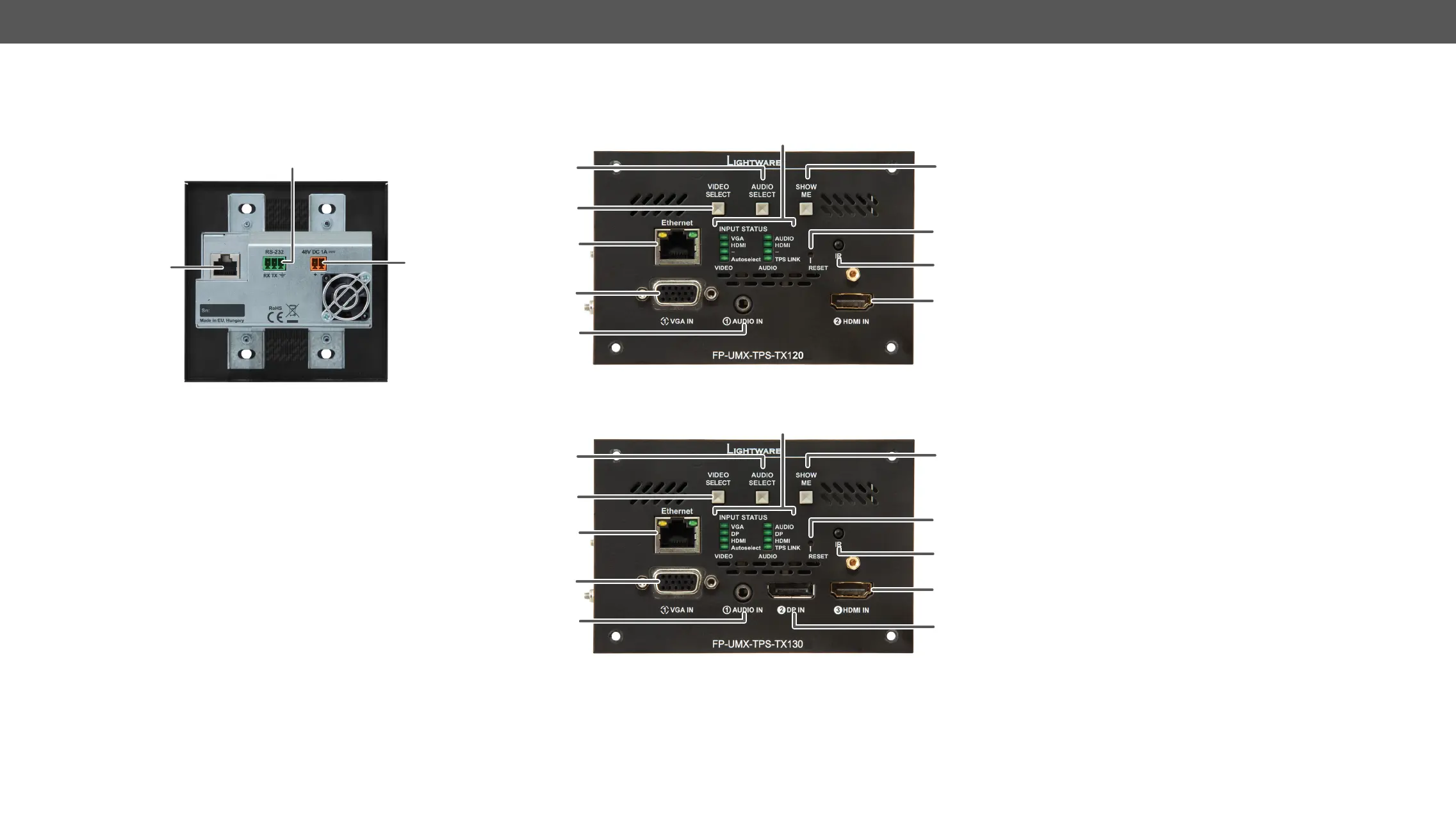

Rear View - WP-UMX-TPS-TX100 series
WP-UMX-TPS-TX120-US / WP-UMX-TPS-TX130-US /
WP-UMX-TPS-TX130-US-Plus
1
RS-232
connector
3-pole Phoenix connector for controlling
the device with LDC or third-party control
systems, or third-party device control. Pin
assignment can be found in the RS-232
Connector section.
2
TPS output

    
TM
signal transmission. Maximum CATx cable
distances can be found in the Maximum
Extension Distances section.
3
48V DC input Power the device remotely by a PoE-
compatible power injector (TPS-PI-1P1).
If the device has to be powered by a local
adaptor (PSU-48VP1), connect the output
to the 2-pole Phoenix connector on the rear
of the wall plate. See more details about
powering options in the 48V DC Connection
section or see all the available Powering
Options.
2
3
1
Front View - FP-UMX-TPS-TX100 series
FP-UMX-TPS-TX120
FP-UMX-TPS-TX130
1
3
4
2
8
q
9
6
7
5
1
3
4
q
2
8
9
6
w
7
5
1
Input Status
LEDs
LEDs give feedback about the current status of
the unit and input signals. See the details in the
Front Panel LEDs section.
2
Audio Select
button
Button for switching between audio sources. See
the details in the Audio Select Button section.
3
Video Select
button
Button for switching between video sources. See
the details in the Video Select Button section.
4
Ethernet      
device using Lightware Device Controller (LDC),
or upgrading it using Lightware Device Updater
(LDU). Any third-party control system can use
this port to control the device.
5
VGA input D-SUB connector for analog video signal.
6
Audio input 
audio input signal.
7
Show Me
button
Special functions can be reached using this
    
DHCP settings, restore factory default settings,
condition launching in Event Manager).
8
Reset button Pushing the button reboots the unit.
9
IR detector IR Detector can sense IR light which can
be forwarded to the receiver side or use for
controlling functions.
q
 HDMI connector for DVI video or HDMI video
and audio.
w
DisplayPort
input
    
video signal.




