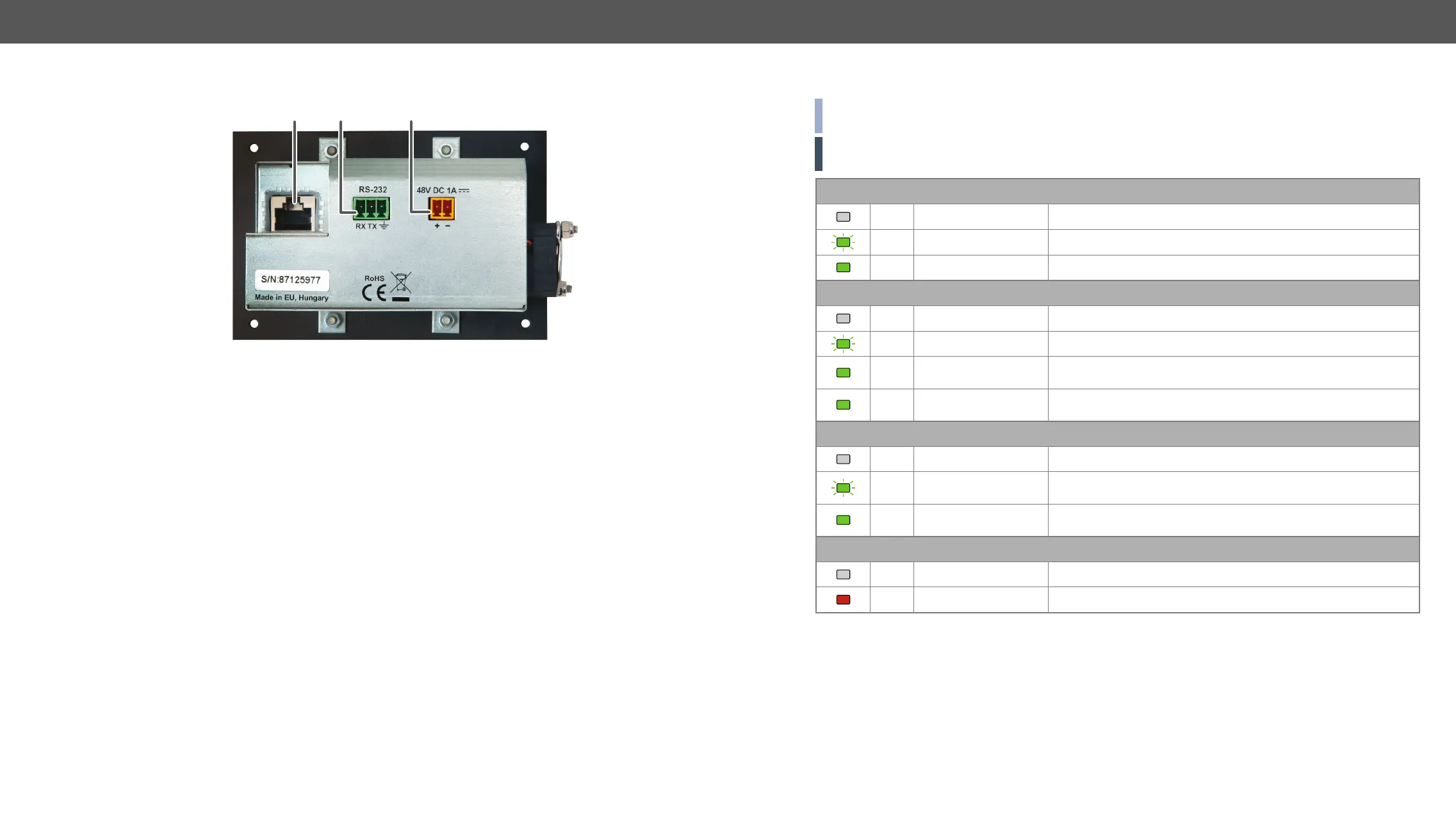

2. Installation UMX-TPS-TX100 series – User's Manual 20

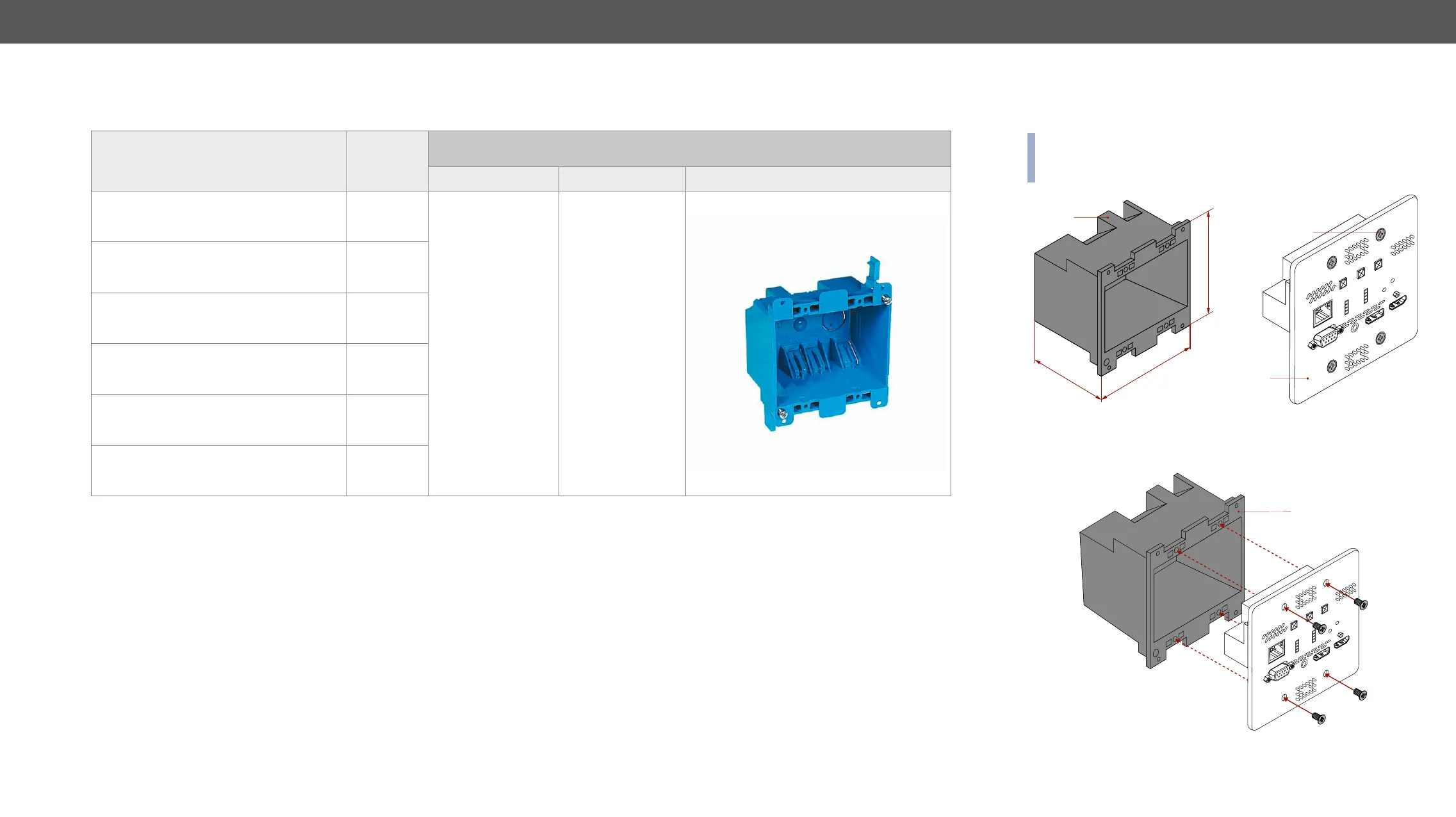

Mounting Options - Wall Plates
Switch / Outlet Box Compatibility Table
Model
Color of the
front panel
Mounting
Type Part number Picture
WP-UMX-TPS-TX120-US Black Black
Carlon B225R-UPC 7TAA040070R0000
WP-UMX-TPS-TX130-US Black Black
WP-UMX-TPS-TX130-US-Plus Black Black
WP-UMX-TPS-TX120-US White
WP-UMX-TPS-TX130-US White
WP-UMX-TPS-TX130-US-Plus White
Mounting Steps - WP-UMX-TPS-TX100 series
The transmitter can be easily mounted into an industrial standard
but it can be purchased separately. Please contact
sales@lightware.com for the details.
Step 4. Insert the extender into the B225R outlet box and position it to get the
holes aligned.
Step 5. Fasten the front side of the extender to the B225R outlet box by
Fixing screw
Front side of the
extender
100.6
109.2
70.6
B225R
outlet box
B225R outlet box
To Next Page
