2. Installation UMX-TPS-TX100 series – User's Manual 16

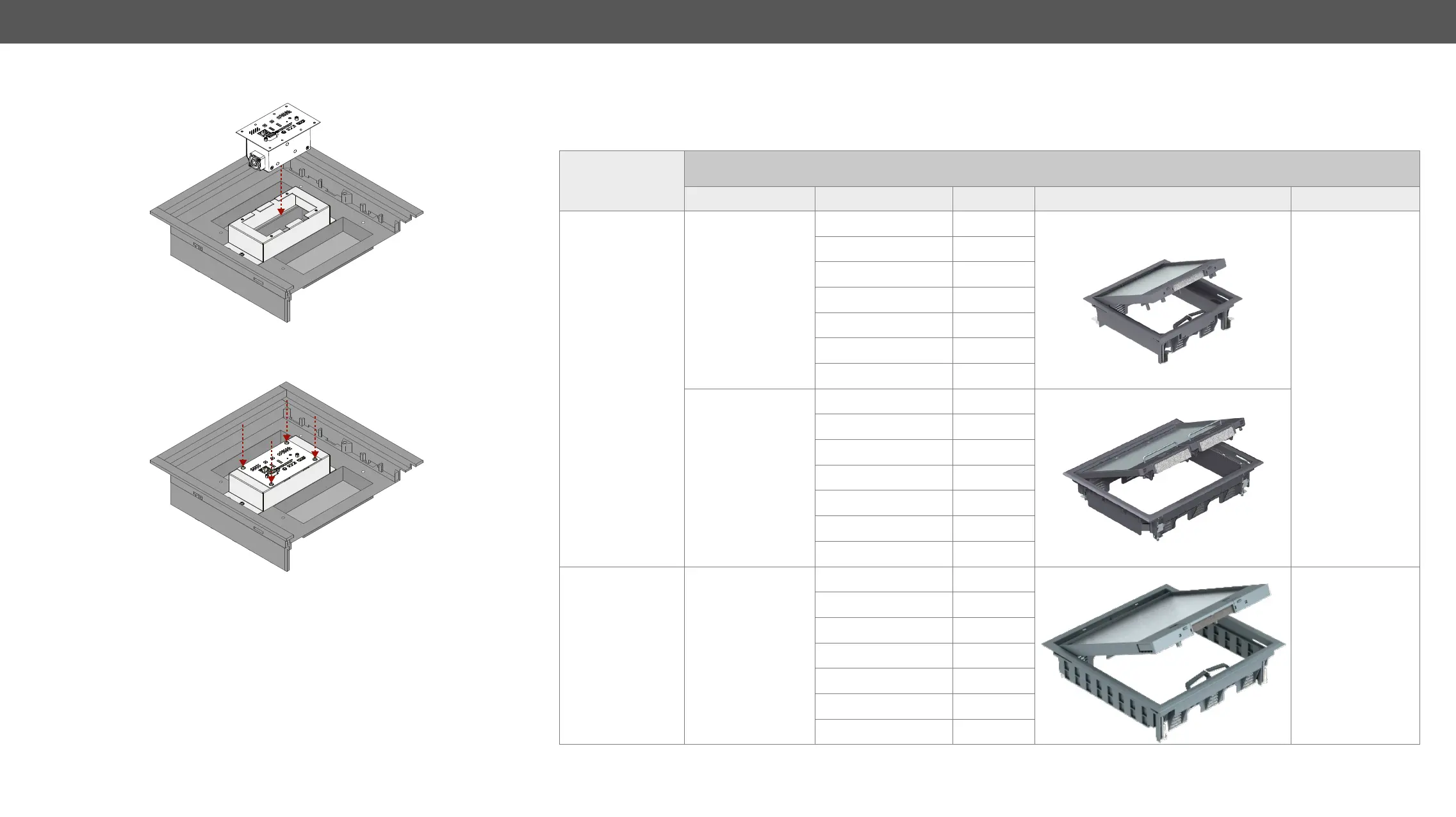

Step 2. Place the transmitter to the bracket.
Step 3. Fasten the all four M3x6 PH xing screws
bracket.
GES Mounting Option
Floor Box Compatibility Tables

Compatible
Lightware mounting
bracket

Product family Type Part number Sample picture Comment
FP-UMX-TPS GES4

OBO Bettermann
GES4, rectangular
GES4 U 7011 7405 19 6
The transmitter unit
assembled with the
supplied brackets
can be mounted to
the place of an UT3
module.
GES4 U 9011 7405 20 0
GES4 U 1019 7405 20 4
GES4-2U10T 7011 7405 14 5
GES4-2U10T 9011 7405 14 6
GES4-2U10T 1019 7405 14 7
GES4M-2 10U 7405 19 1
OBO Bettermann
GES6, rectangular
GES6 U 7011 7405 30 8
GES6 U 9011 7405 31 2
GES6 U 1019 7405 31 6
GES6-2U10T 7011 7405 32 1
GES6-2U10T 9011 7405 32 2
GES6-2U10T 1019 7405 32 3
GES6M-2 10U 7405 29 9
FP-UMX-TPS GES9

OBO Bettermann
GES9, rectangular
GES9-3B U 7011 7405 07 7
The transmitter unit
assembled with the
supplied brackets
can be mounted to
the place of an UT4
module.
GES9-3B U 9011 7405 07 9
GES9-3B U 1019 7405 08 1
GES9-3S U 7011 7405 08 3
GES9-3S U 9011 7405 08 5
GES9-3S U 1019 7405 08 7
GES9M-2 10U 7405 37 1




