3. Product Overview UMX-TPS-TX100 series – User's Manual 30

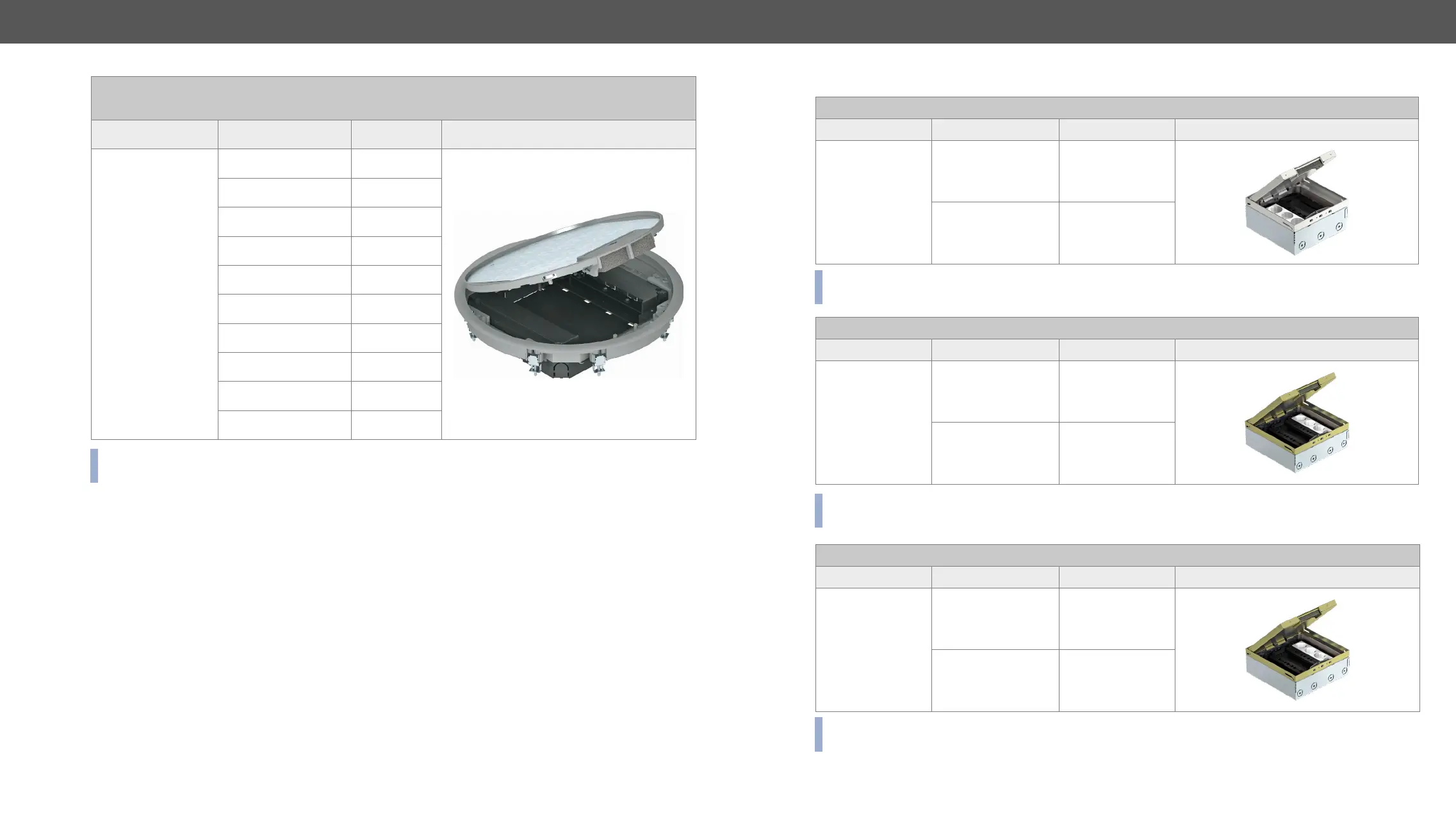

Wall Plate / Floor Plate Extenders
the operation is the same for the following models.
▪
▪
▪
▪ FP-UMX-TPS-TX120
▪ FP-UMX-TPS-TX130

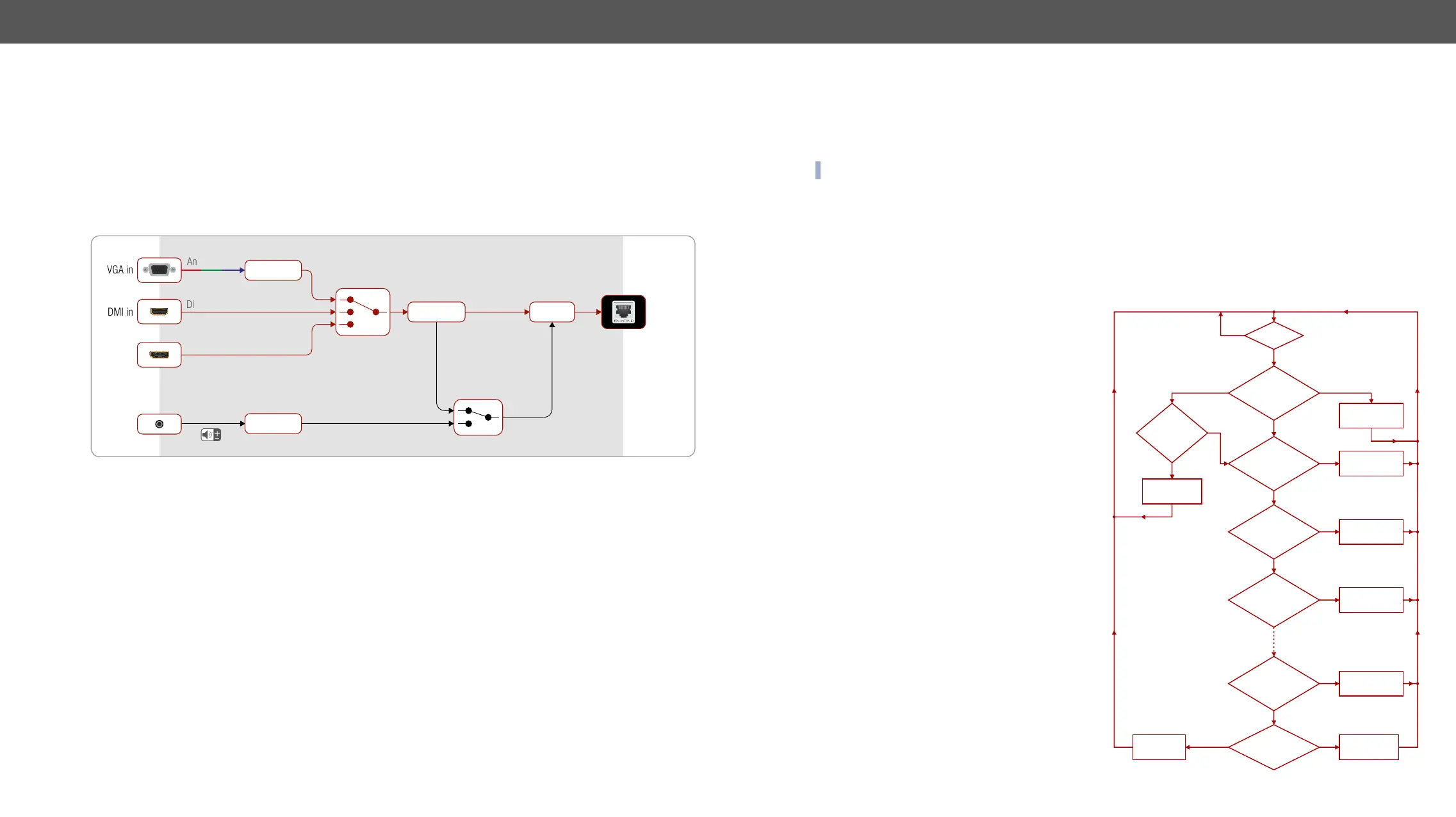

Port diagram of the WP-UMX-TPS-TX130-US transmitter
The device has three video input ports to receive analog video (VGA) and digital video (HDMI, DP) signals.
signals are converted to digital ones. The user can choose which audio signal is transmitted on the TPS
Besides, the device has four different interfaces to control the unit itself or third-party devices: infrared
(input), RS-232, and Ethernet.
HDMI in
VGA in
DP in
Audio in
Analog video
Digital video + Digital audio
Analog audio
Digital audio
A/D converter
3:1 digital
A/V switch
Digital video + Digital audio
Digital
audio
Digital video
TPS out
Embedder
A/D converter
2:1 digital
audio switch
De-embedder
Digital
audio
Video Interface
Video Input Modes
The device can receive digital video signal on the HDMI, DisplayPort, and DVI-D input ports and analog video
signal on the VGA and the DVI-A input ports.
INFO: Both the DVI-A and DVI-D signals can be received on the same DVI-I input port.
Input Source Selection Modes
Video input source can be selected the following ways:
▪ pressing Video Select button on the device;
▪ using Lightware Device Controller (LDC);
▪
▪ using the Autoselect function.
The Autoselect Feature
There are three types of Autoselect as follows.
▪ First detect mode: selected input port is kept
connected to the output as long as it has an
active signal.
▪ Priority detect mode: always the highest
priority active input is selected to transmit.
▪ Last detect mode: always the last attached
input is selected to transmit.
New event?
„First detect” „Last detect”
No Audio/Video
transmission
Remains
selected
Last connected
input is selected
Y
„Off”
N
N
Current
Autoselect mode
„No signal”
Port with
priority 0 has a
valid signal?
Selected
port still has a
valid signal?
„Priority detect”
Port with
priority 1 has a
valid signal?
N
N
Port with
priority 30 has a
valid signal?
N
Display
Test pattern
Test
pattern generator
setting
Y
Y
Port with
priority 2 has a
valid signal?
N
Port with priority
0 is selected
Port with priority
1 is selected
Port with priority
2 is selected
Port with priority
30 is selected
Y
Y
Y
