2. Installation UMX-TPS-TX100 series – User's Manual 13
Mounting Options - Floor Plates
Floor Box Compatibility Table
Compatible Lightware
mounting bracket kit
Compatible Floor Boxes
Product family Part number Sample picture Comment
MK Cablelink Plus Modular
Floorboxes
CRMB265-3GRY
The transmitter unit can be
mounted to the place of a
compartment (a service power
module or an unserviced data
module).
CRMB265-3GRYL
CRMB340-4GRY
CRMB340-4GRYL
Ackermann Cablelink
Modular Floorboxes
CRMB265-3GRY
CRMB265-3GRYL
CRMB340-4GRY
CRMB340-4GRYL
The FP-UMX-TPS MKM kit can be ordered separately, please contact
sales@lightware.com.

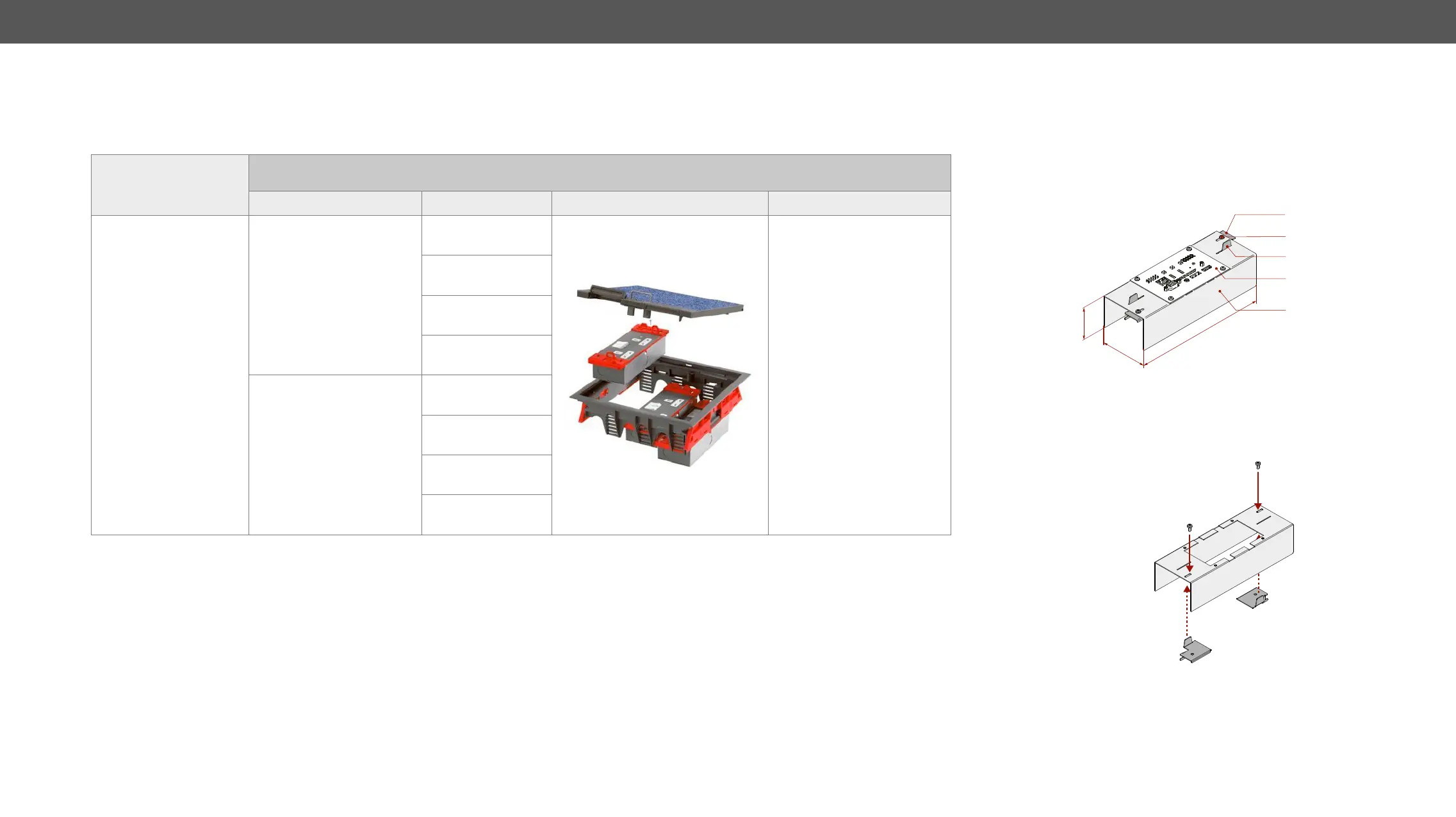

Dimensions of the Bracket
The following drawing and table represents the dimensions of the
Lightware brackets assembled with the transmitter unit. The values
are in mm.
Dimensions and layout of the MKM bracket
Step 1. Assembling of the bracket: insert both handle tab parts to the
M3x6 PH xing screws.
Do not tighten well the screws, the tabs must stay movable.
Fixing screw
Handle
series transmitter
FP-UMX-TPS MKM
bracket
77
217
To Next Page
