5. Software Control - Lightware Device Controller UMX-TPS-TX100 series – User's Manual 63

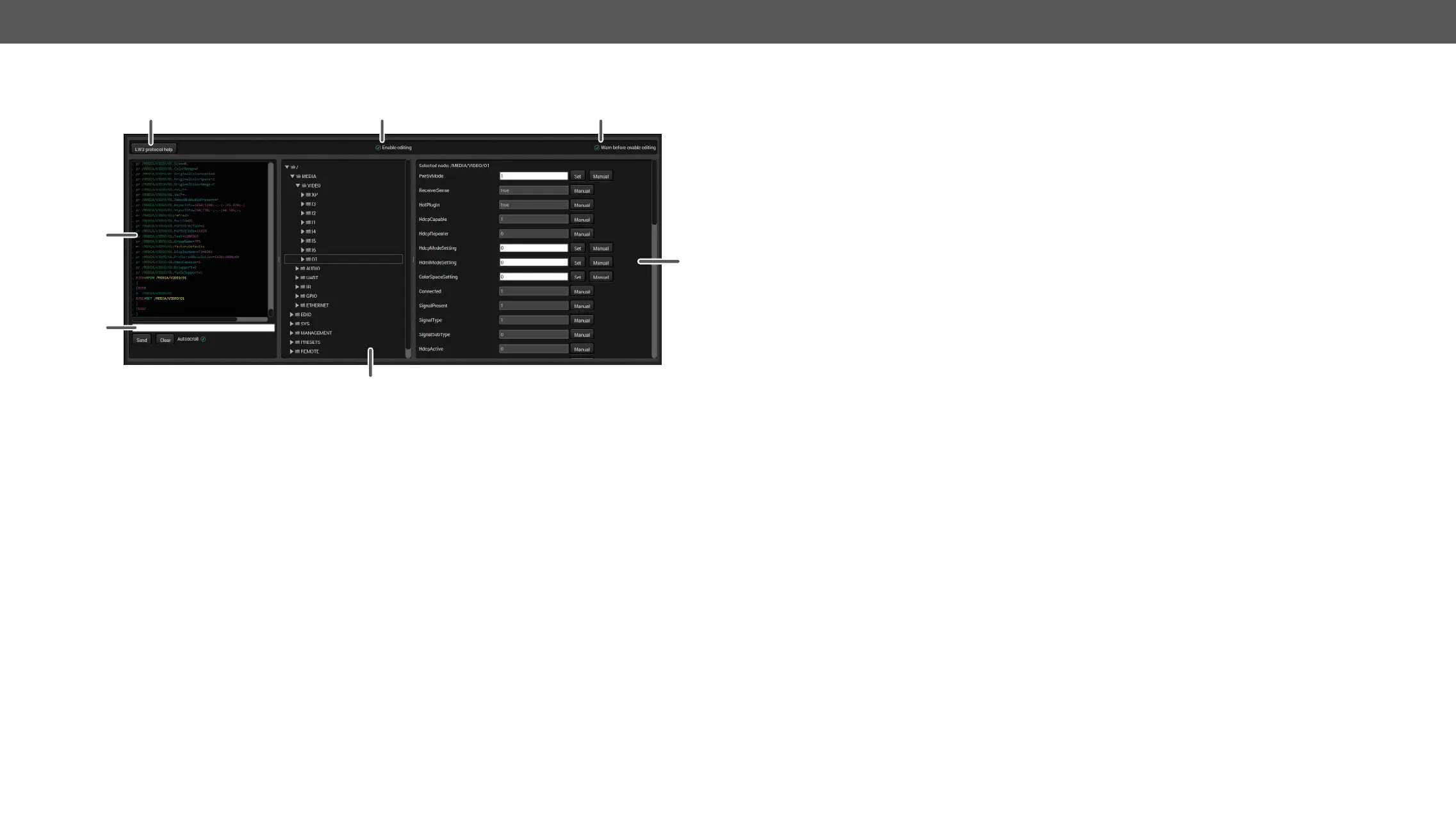

Advanced View Window
7
6
5
1
LW3 protocol help Pushing the button results a help window opening which describes the most
2
Edit mode The default appearance is the read-only mode. If you want to modify the
selection.
3
Warning mode If this pipe checked in, a warning window pops up when you enable Edit mode.
4
Node list Correspondent parameters and nodes are shown which are connected to the
selected item in the protocol tree.
Manual button: Manual (short description) of the node can be called and
displayed in the terminal window.
Set button:
Call button: Calls the method, e.g. reloads factory default settings.
5
Protocol tree
6
Command line Type the desired command and execute it by the Send button. Clear all current
commands and responses in the Terminal window by the Clear button.
7
Terminal window Commands and responses with time and date are listed in this window. Sent
command starts with ‘>’ character, received response starts with ‘<’ character.
The color of each item depends on the type of the command and response.
The content of the window can be emptied by the Clear button. If the Autoscroll
option is ticked, the list is scrolled automatically when a new line is added.
