3. Product Overview UMX-TPS-TX100 series – User's Manual 34
IR Interface

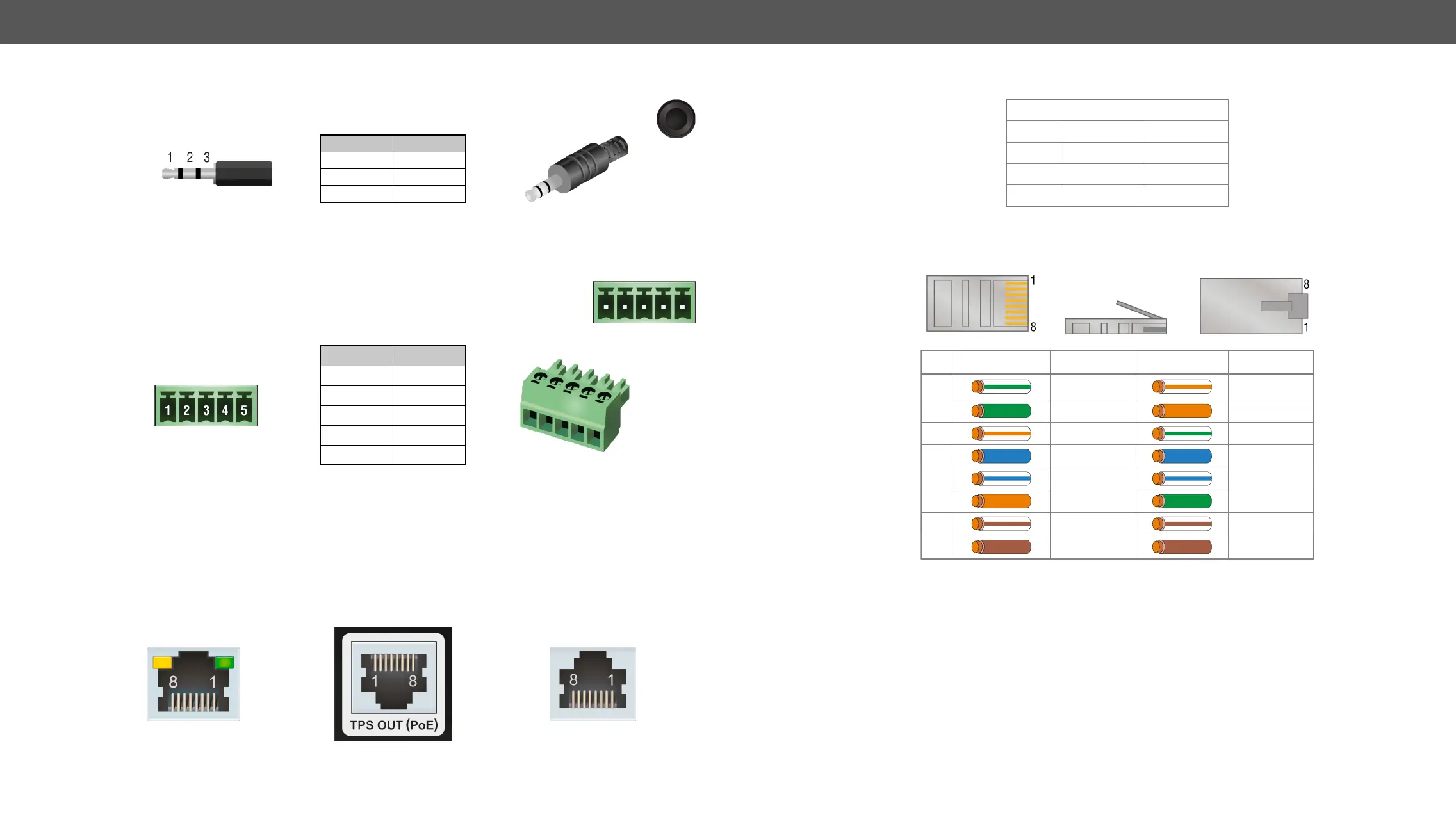

ATTENTION! For the complete usage attach an IR emitter unit to the IR OUT and an IR detector unit to the
IR IN connectors.
Technical Background
The Infrared signal transmission is similar to the serial data communication. The transmitter contains
pronto HEX format in both cases.

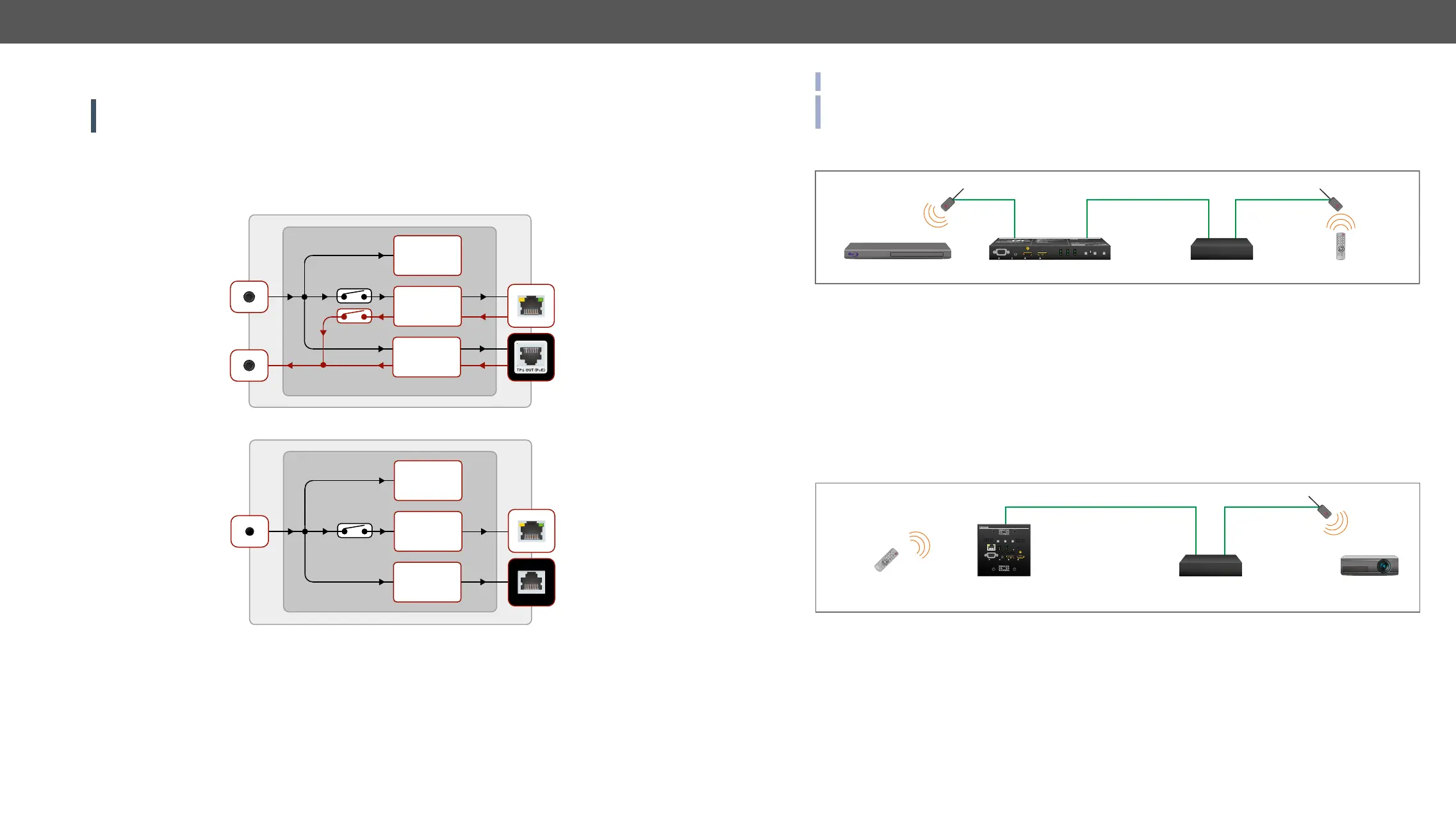

Block diagram of the IR interface - UMX-TPS-TX100 series transmitters
Block diagram of the IR interface - WP/FP-UMX-TPS-TX100 series transmitters
The most trivial usage of the IR interface is the transparent mode: signal received or sent on local IR ports
are transmitted directly on the TPS IR link port and vica versa. Beside of this there is an IR recognizer in the
device where you can assign actions in Event Manager for. The third option is the command injection mode
(like at serial interface in the previous section) where you can send IR commands over LAN. Command
LAN
port
TPS
IR link
CPU
IR in
IR out
IR recognizer
for Event
Manager use
TCP / IR
converter
TPS / IR
converter
LAN
port
TPS
IR link
CPU
IR recognizer
for Event
Manager use
TCP / IR
converter
TPS / IR
converter
INFO: All settings are available in the LDC software, see settings in the Infra Tab section.
section.
IR Signal Transmission - Example 1
The Concept
An IR detector is attached to the Infrared input port of the TPS receiver and IR signals are sent by the Remote
controller. The TPS Receiver is connected to an UMX-TPS-TX100 series transmitter built with IR output port
via TPS line.
Settings:
Set the TPS IR link of the Transmitter to Transparent mode. IR signals are received over the local IR input port
of the Receiver by the Remote controller. The signals transmitted further over the TPS line to the Transmitter
which can control the Blu-ray player via an IR emitter.
IR Signal Transmission - Example 2
The Concept
The built-in IR detector Remote controller. The
signal is transmitted via the TPS line to the TPS receiver. In this way the Remote controller can control the the
Projector via the Wallplate transmitter.
UMX-TPS-TX100 series transmitterBlu-ray player
TPS OUT
IR IN
TPS receiver
Remote controller
IR OUT
VIDEO AUDIO
DVI-A Video
Autoselect
HDCP
Audio2
DVI-D
DP
DVI-D
DP
SHOW
ME
AUDIO
SELECTINPUT STATUS
VIDEO
SELECT
HDMI HDMI
VGA
Audio1
RESET
AUDIO1 IN HDMI IN DP IN VGA IN
WP-UMX-TPS-TX100
series transmitter
TPS OUT
IR OUT
TPS receiverRemote controller
WWPP--UUMMXX--TTPPSS--TTXX113300--UUSS
VIDEO
Autoselect
HDMI
INPUT STATUS
SHOW
ME
DP
VGA
AUDIO
TPS LINK
HDMI
DP
AUDIO
AUDIO
SELECT
IR
VIDEO
SELECT
RESET
Ethernet
AUDIO IN
HDMI IN
VGA IN
DP IN
Projector
