Lightware UMX-TPS-TX100 Series

5. Software Control - Lightware Device Controller UMX-TPS-TX100 series – User's Manual 46
TPS Video Output
Click on the output port to display its properties. The most important
information and settings are available from the panel.

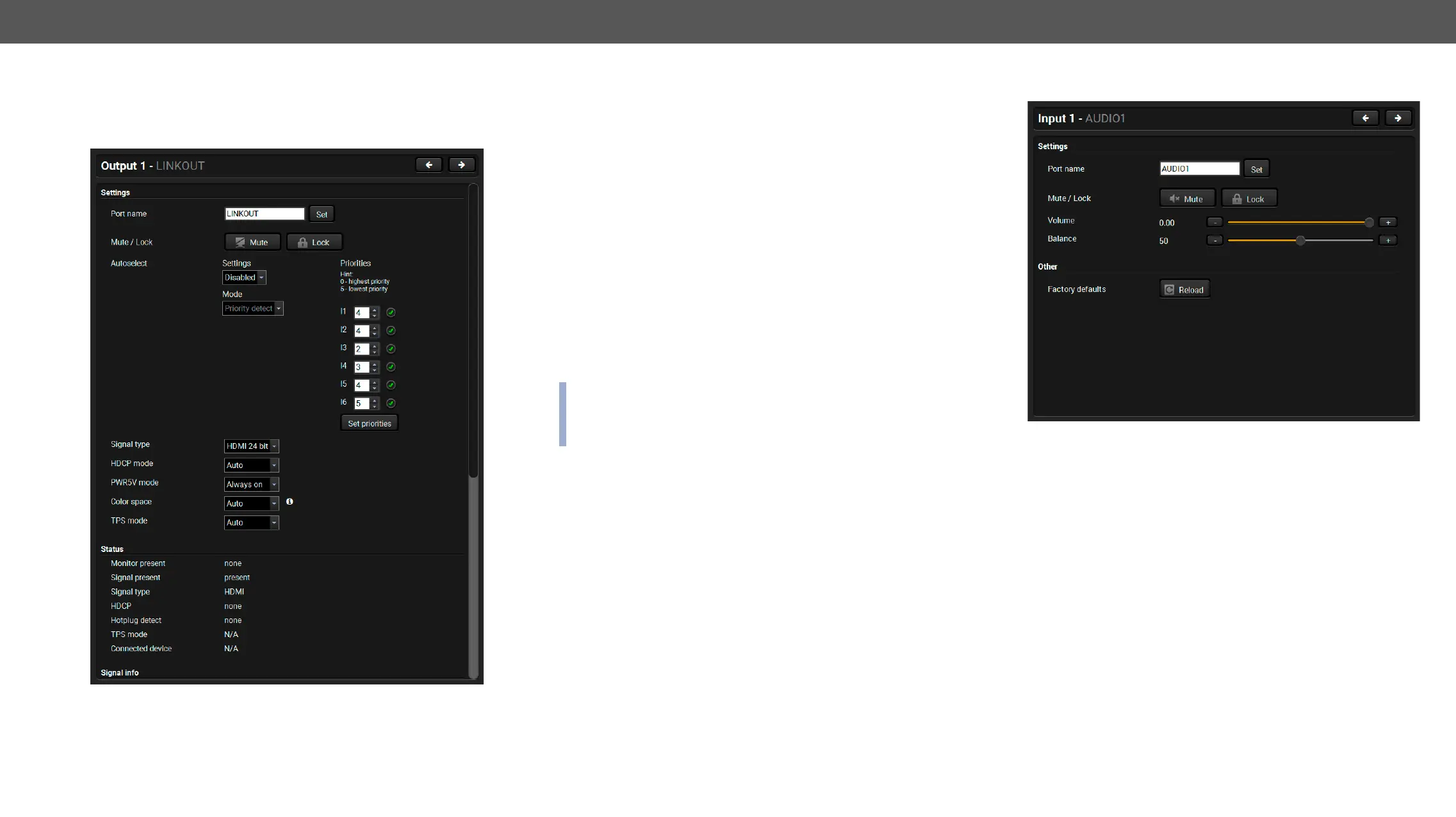

Port properties window of TPS video output
Available settings:
▪ 
▪ 
▪ Autoselect settings  
more details about Autoselect feature in The Autoselect Feature
section);
▪ Signal type
- The outgoing signal format can be selected by a drop-down
menu;
▪ HDCP mode
sent the signal without encryption if the content allows when
Auto mode is selected;
▪ Power 5V mode
the source and the sink devices be connected – independently
from the transmitted signal;
▪ Color space
signal color space can be selected by a drop-down menu;
INFO: The color space conversion supports resolutions up to
       
170MHz, the conversion does not execute, and the original content
will be transmitted.
▪ TPS mode          
See more information about TPS modes in the TPS Interface
section.
▪ Frame Detector;
▪ Cable Diagnostics;
▪ Reloading factory default settings for the selected port.
Analog Audio Inputs
Port properties window of the AUDIO1 (Jack) input
Certain parameters of the analog audio input signal can be set as
follows:
▪ 
▪ 
▪ Volume: from 0 dB to -52 dB (step 0.25 dB), from -54 dB to -66
dB (step 2 dB); -69 dB; -72 dB; -78 dB (default is 0 dB)
▪ Balance: from 0 to 100, step 1 (default is 50 = center)
▪ Reloading factory default settings for the selected port.




