5. Software Control - Lightware Device Controller UMX-TPS-TX100 series – User's Manual 52
Control Menu
RS-232 Tab

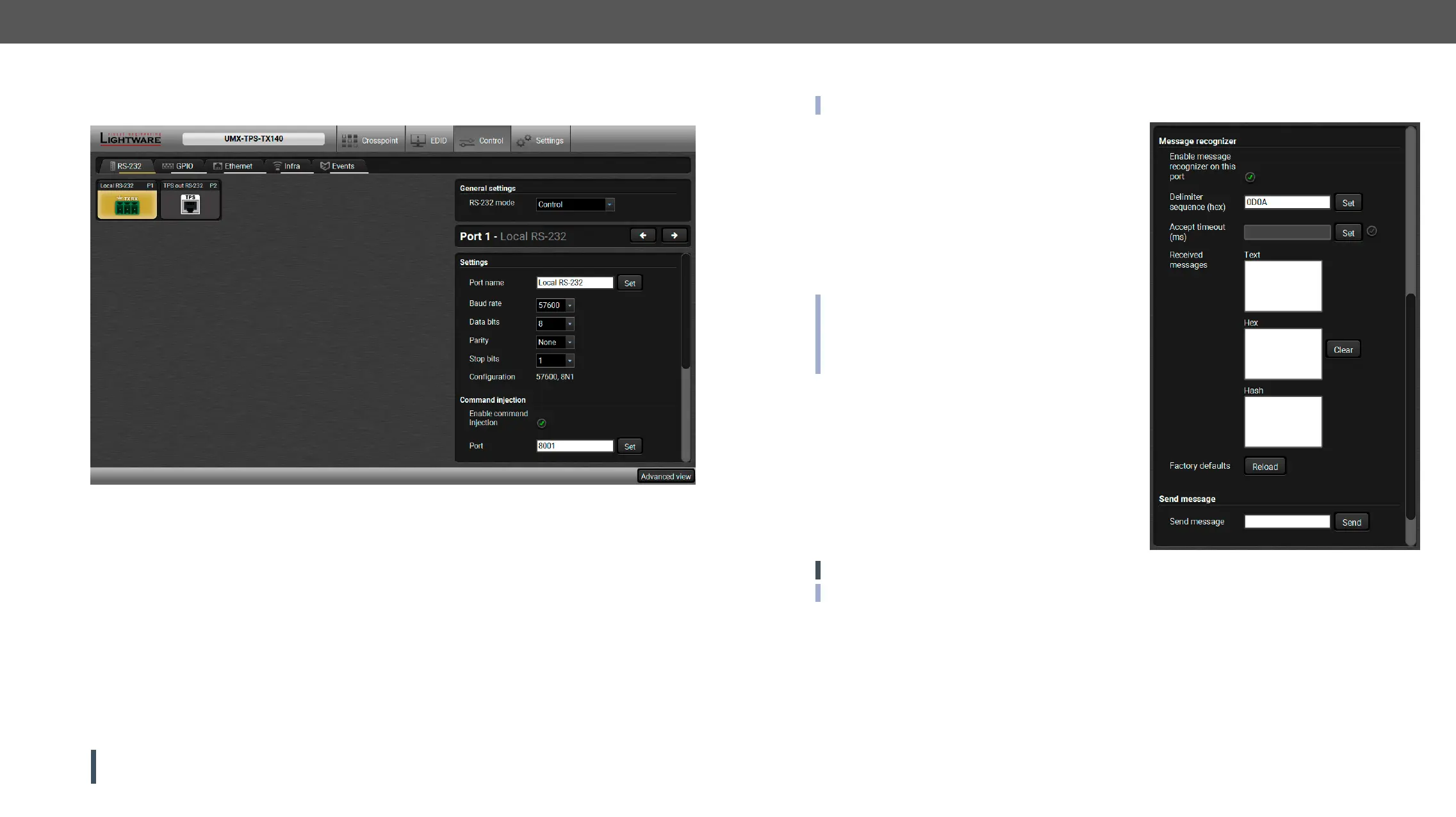

RS-232 tab in Control menu
The following settings and functions are available on the local and TPS link RS-232 port:
▪ RS-232 mode: Control, Pass-through, and Command Injection (for more details about serial interface
modes see the Technical Background section);
▪ Baud rate: 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200;
▪ Data bits: 8 or 9;
▪ Parity: None, Odd, or Even;
▪ Stop bits: 1, 1.5, or 2;
▪ Command injection: enable or disable;
▪ Command injection port number;
▪
▪ Message sending via serial port;
▪ Reloading factory defaults (see factory default settings in the Factory Default Settings section).
ATTENTION! The RS-232 Operation mode is mirrored on the Local and TPS out serial port. The other settings
can be adjusted separately on the two ports.
Message Recognizer
UMX-TPS-TX140-Plus model can analyze and store
the received serial data. For more information see the
RS-232 Recognizer section.
Put a tick to Enable message recognizer on this port to switch
the recognizer on.
Delimiter sequence text box is for set the delimiter string in
serial data, the device saves the RS-232 message data
the two delimiters).
INFO: 0D0A is the factory default value, this is the
hexadecimal code of Carriage Return and Line Feed.
commands and the stored changes automatically.
If the Timeout is enabled and set, the received data is
saved when the timeout is elapsed after the last received
message.
In Received messages box shows the last received
and stored message in Text (RECOGNIZER.Rx), Hex
(RECOGNIZER.RxHex), and Hash (RECOGNIZER.Hash)
format. The Hex and Hash contains the delimiter.
Press the Clear button to erase this storage.
Clicking on Reload restores the Factory Default Settings
of the recognizer.
ATTENTION! The Message recognizer settings are mirrored on the Local and TPS out serial port.
INFO: Message recognizer operates independently of the RS-232 mode.
