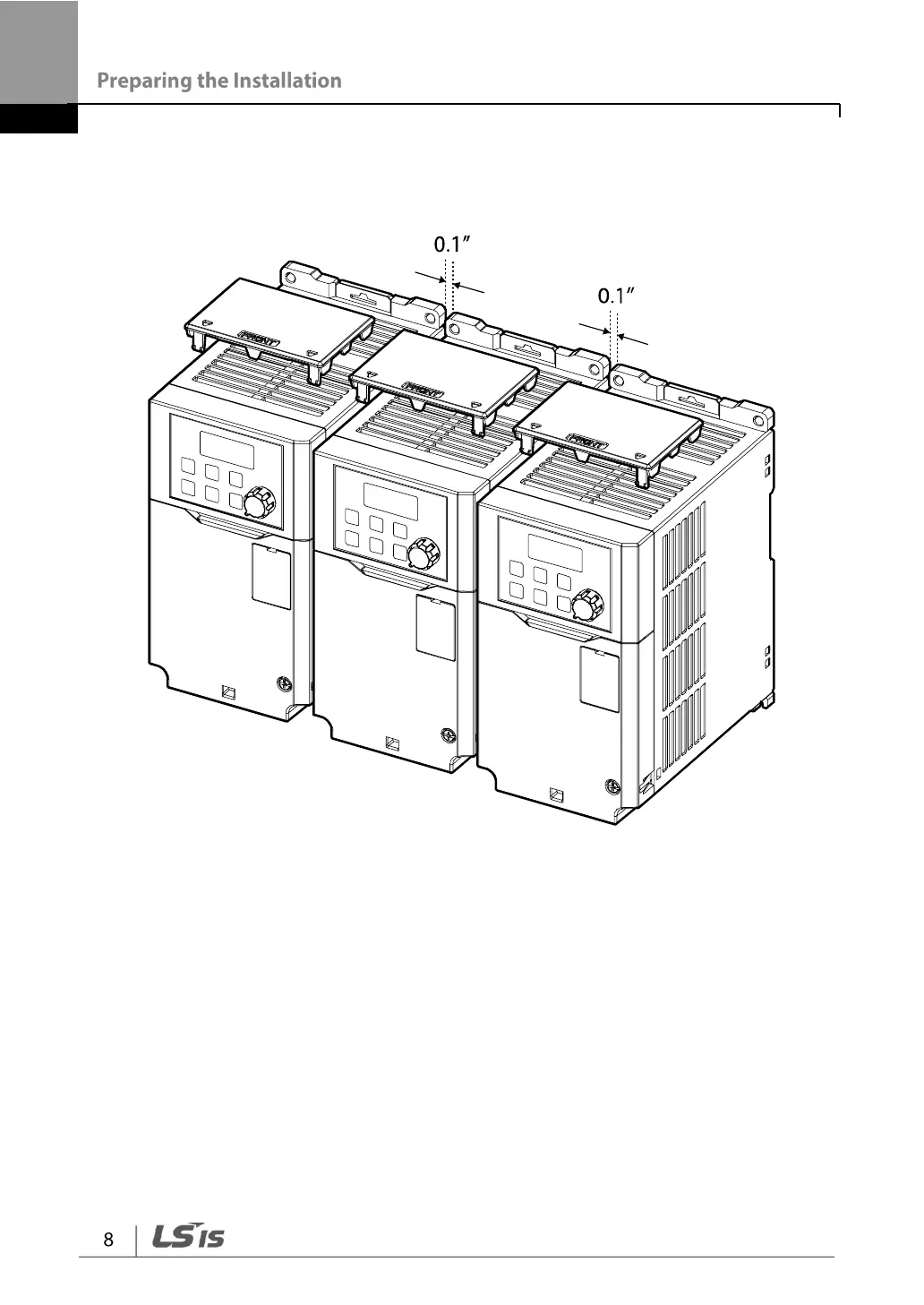

• If you are installing multiple inverters in one location, arrange them side-by-side

and remove the top covers. The top covers MUST be removed for side-by-side

installations. Use a flat head screwdriver to remove the top covers.
